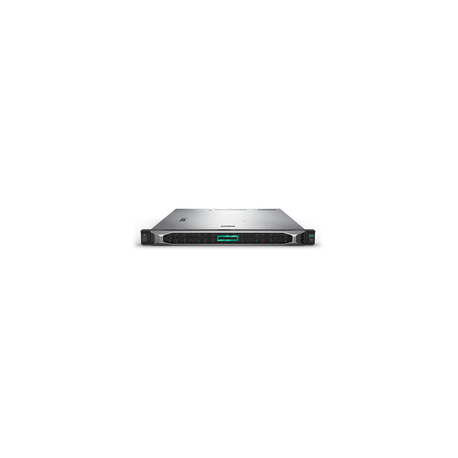

HPE ProLiant DL325 Gen10 SMB Solution - Server - rack-mountable - 1U - 1-way - 1 x EPYC 7251 / 2.1 GHz - RAM 16 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
HPE ProLiant DL325 Gen10 SMB Solution - Server - rack-mountable - 1U - 1-way - 1 x EPYC 7251 / 2.1 GHz - RAM 16 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none
Ražotājs
•HPE
Ražotāja kods
•P04649-B21
Artikuls
•1544798
Pakas svars
•10 kg
Type
Server
Product Form Factor
Rack-mountable - 1U
Built-in Devices
Led panel, battery
Server Scalability
1-way
Hot-Swap Bays Qty
8
CPU
AMD EPYC 7251
Clock Speed
2.1 GHz
Max Turbo Speed
2.9 GHz
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
CPU Socket
Socket SP3
Installed Size
L3 Cache - 32 MB
Cache Per Processor
32 MB
Installed Size
16 GB / 1 TB (max)
Technology
DDR4 SDRAM - ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2666 MHz
Form Factor
DIMM 288-pin
Slots
16 (Total) / 15 (empty)
Features
Registered, HPE SmartMemory
Configuration Features
1 x 16 GB
RAM Supported
PC4-20800 - 2 TB Load-Reduced ¦ PC4-20800 - 1 TB registered
Type
No HDD
Type
1 x RAID - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P408i-a
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, 1ADM, 10ADM
Buffer Size
2 GB
Type
No optical drive
Type
Card reader
Supported Flash Memory Cards
microSD
Monitor Type
None.
Video Memory
16 MB
Video Interfaces
VGA
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HP 331i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Bays
1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 1 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear)
Included Accessories
HPE Easy Install Rails, 5 x standard fans
Compliant Standards
AES, FIPS 140-2, Triple DES, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
500 Watt
OS Certified
CentOS, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, SuSE Linux Enterprise Server 12 SP3, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, VMware vSphere 6.5 (ESXi) Update 2, VMware vSphere 6.7 (ESXi)
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Width
43.46 cm
Depth
61.49 cm
Height
4.29 cm
Weight
10 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
