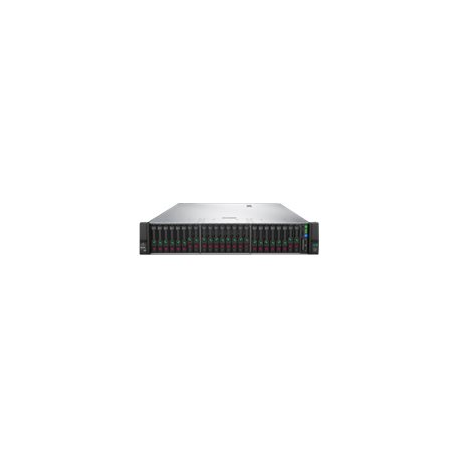

HPE ProLiant DL560 Gen10 Entry - Server - rack-mountable - 2U - 4-way - 2 x Xeon Gold 5120 / 2.2 GHz - RAM 32 GB - SATA / SAS - hot-swap 2.5" bay(s) - no HDD - GigE, 10 GigE - monitor: none
HPE ProLiant DL560 Gen10 Entry - Server - rack-mountable - 2U - 4-way - 2 x Xeon Gold 5120 / 2.2 GHz - RAM 32 GB - SATA / SAS - hot-swap 2.5" bay(s) - no HDD - GigE, 10 GigE - monitor: none
Ražotājs
•HPE
Ražotāja kods
•840369-B21
Artikuls
•1535982
Pakas svars
•34.12 kg
Type
Server
Product Form Factor
Rack-mountable - 2U
Server Scalability
4-way
Front Accessible Bays Qty
1
Hot-Swap Bays Qty
8
CPU
Intel Xeon Gold 5120
Clock Speed
2.2 GHz
Max Turbo Speed
3.2 GHz
Number of Cores
14-core
CPU Qty
2
Max CPU Qty
4
CPU Upgradability
Upgradable
Installed Size
L3 Cache - 38.5 MB
Cache Per Processor
19.25 MB
Installed Size
32 GB / 768 GB (max)
Technology
DDR4 SDRAM
Form Factor
DIMM 288-pin
Slots
24 (Total) / 22 (empty)
Configuration Features
2 x 16 GB
Type
No HDD
Storage Controller Name
HPE Smart Array S100i
Type
No optical drive
Monitor Type
None.
Video Interfaces
VGA
Ethernet Controller
HP 331FLR
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Bays
1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
24 (total) / 22 (free) x DIMM 288-pin ¦ 2 (total) / 0 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - three-quarter-length, full-height ¦ 2 (total) / 2 (free) x M.2 Card ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
1 x VGA ¦ 1 x serial ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO - RJ-45 ¦ 1 x HPE iLO (1 in front) ¦ 2 x USB 2.0 ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal)
Device Type
Power supply - hot-plug
Power Redundancy
Yes
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
1600 Watt
80 PLUS Certification
80 PLUS Platinum
Efficiency
94%
Service & Support
Limited warranty - parts and labour - 3 years - on-site
Width
44.55 cm
Depth
75.47 cm
Height
8.75 cm
Weight
34.12 kg
