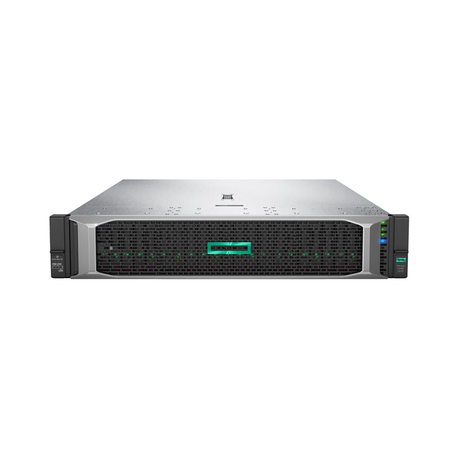

HPE ProLiant DL380 Gen10 Entry - Server - rack-mountable - 2U - 2-way - 1 x Xeon Bronze 3104 / 1.7 GHz - RAM 16 GB - SATA - hot-swap 3.5" bay(s) - no HDD - GigE - monitor: none - HPE Smart Buy
HPE ProLiant DL380 Gen10 Entry - Server - rack-mountable - 2U - 2-way - 1 x Xeon Bronze 3104 / 1.7 GHz - RAM 16 GB - SATA - hot-swap 3.5" bay(s) - no HDD - GigE - monitor: none - HPE Smart Buy
Ražotājs
•HPE
Ražotāja kods
•P06419-B21
Artikuls
•1535968
Pakas svars
•14.76 kg
Type
Server
Product Form Factor
Rack-mountable - 2U
Built-in Devices
Led panel
Server Scalability
2-way
Hot-Swap Bays Qty
8
Localisation
Region: Worldwide
CPU
Intel Xeon Bronze 3104
Clock Speed
1.7 GHz
Number of Cores
6-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Installed Size
L3 Cache - 8.25 MB
Cache Per Processor
8.25 MB
Installed Size
16 GB / 1.5 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Effective Memory Speed
2133 MHz
Rated Memory Speed
2666 MHz
Memory Specification Compliance
PC4-21333
Form Factor
DIMM 288-pin
Slots
24 (Total) / 23 (empty)
Features
Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features
1 x 16 GB
RAM Supported
3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type
No HDD
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Storage Controller Name
HPE Smart Array S100i SR Software
Channel Qty
14
Type
No optical drive
Type
Card reader
Supported Flash Memory Cards
microSD
Monitor Type
None.
Video Memory
16 MB
Video Interfaces
VGA
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HPE 331i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Bays
1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 3.5" LFF
Slots
1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x microSD Card (internal)
Interfaces
1 x HPE iLO - Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear)
Included Accessories
HPE Easy Install Rails, 4 standard fans, CPU standard heatsink
Cables Included
Power cable
Compliant Standards
AES, FIPS 140-2, IPv6 Ready, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Manufacturer Selling Program
HPE Smart Buy
Device Type
Power supply - hot-plug
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
1
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
500 Watt
80 PLUS Certification
80 PLUS Platinum
Efficiency
94%
Software
HPE Server UEFI
ENERGY STAR Certified
Yes
ENERGY STAR Version
2.1
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day ¦ Technical support - software application support - 90 days
Width
44.55 cm
Depth
73.03 cm
Height
8.74 cm
Weight
14.76 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
Sound Emission
31 dBA
