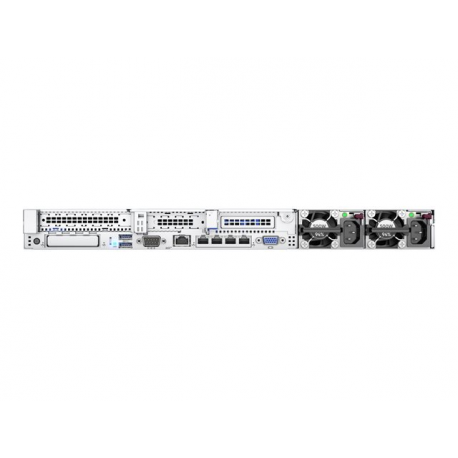

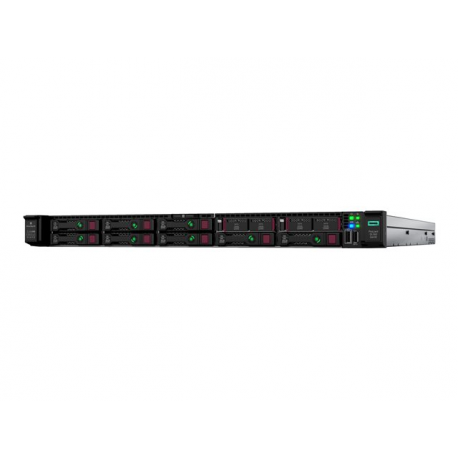

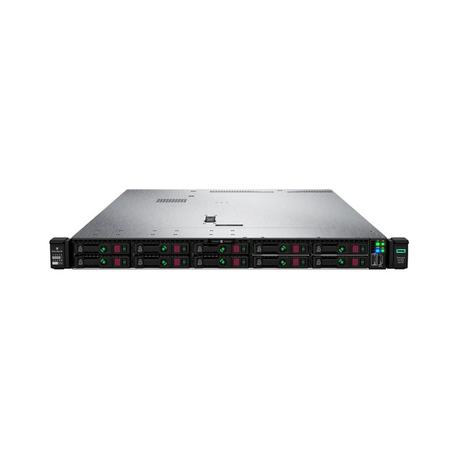

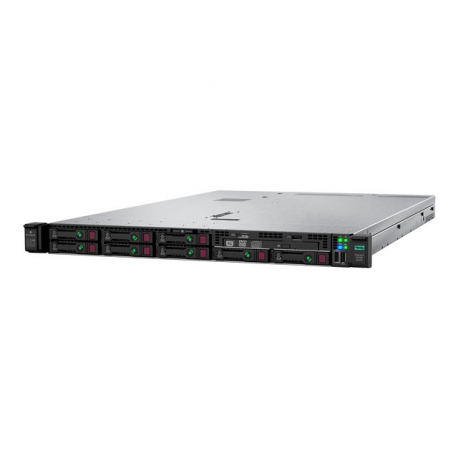

HPE ProLiant DL360 Gen10 Performance - Server - rack-mountable - 1U - 2-way - 1 x Xeon Gold 5118 / 2.3 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none - HPE Smart Buy
HPE ProLiant DL360 Gen10 Performance - Server - rack-mountable - 1U - 2-way - 1 x Xeon Gold 5118 / 2.3 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - GigE - monitor: none - HPE Smart Buy
Ražotājs
•HPE
Ražotāja kods
•P06454-B21
Artikuls
•1535962
Pakas svars
•13.04 kg
Type
Server
Product Form Factor
Rack-mountable - 1U
Built-in Devices
Led panel, battery
Server Scalability
2-way
Hot-Swap Bays Qty
8
Localisation
Region: Worldwide
CPU
Intel Xeon Gold 5118
Clock Speed
2.3 GHz
Max Turbo Speed
3.2 GHz
Number of Cores
12-core
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket
FCLGA3647 Socket
Chipset Type
Intel C621
Installed Size
L3 Cache - 16.5 MB
Cache Per Processor
16.5 MB
Installed Size
32 GB / 1.5 TB (max)
Technology
DDR4 SDRAM - Advanced ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2666 MHz
Memory Specification Compliance
PC4-21333
Form Factor
DIMM 288-pin
Slots
24 (Total) / 23 (empty)
Features
Registered, dual rank, slots 13 - 24 are available in two-processor configuration only
Configuration Features
1 x 32 GB
RAM Supported
3 TB Load-Reduced - ECC ¦ 1.5 TB registered - ECC ¦ 192 GB Non-Volatile - ECC
Type
No HDD
Type
1 x RAID - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name
HPE Smart Array P408i-a
Channel Qty
8
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size
2 GB
Type
SATA
Storage Controller Name
HPE Smart Array S100i SR Software
Type
No optical drive
Type
Card reader
Supported Flash Memory Cards
microSD
Monitor Type
None.
Video Memory
16 MB
Video Interfaces
VGA
Interface (Bus) Type
FlexibleLOM
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HPE 331i
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 5
Features
Wake on LAN (WoL), PXE support
Bays
1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
1 (total) / 0 (free) x FlexibleLOM - three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - three-quarter-length, full-height ¦ 1 (total) / 0 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 1 (total) / 1 (free) x PCIe x16 - full-height
Interfaces
1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 (4 rear) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 1 x VGA (1 rear)
Included Accessories
HPE Easy Install Rails, HPE standard heatsink, 5 x standard hot plug fans
Cables Included
Power cable
Compliant Standards
AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Manufacturer Selling Program
HPE Smart Buy
Device Type
Power supply - hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
800 Watt
Software
HPE Server UEFI
ENERGY STAR Certified
Yes
ENERGY STAR Version
2.1
Service & Support
Limited warranty - parts and labour - 3 years - on-site - response time: next business day ¦ Technical support - software application support - 90 days
Width
43.46 cm
Depth
70.7 cm
Height
4.29 cm
Weight
13.04 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
8 - 90% (non-condensing)
Sound Emission
45 dBA
