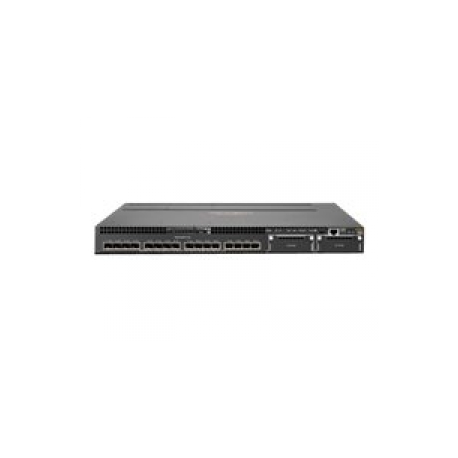

HPE Aruba 3810M 16SFP+ 2-slot Switch - Switch - L3 - Managed - 16 x 10 Gigabit SFP+ - rack-mountable
Ražotājs
•HPE
Ražotāja kods
•JL075A
Artikuls
•1299050
Intrastat
•85176200
Pakas svars
•8.75 kg
16
Aruba 3810 Switch Series nodrošina veiktspēju un noturību digitālā darba vides kampusa tīklam. Balstīta uz jaudīgu ProVision ASIC un gatava darbam ar ātriem AP, kas izmanto HPE Smart Rate multi-gigabitu Ethernet, Aruba 3810 nodrošina labāku lietojumprogrammu pieredzi ar zemu latentumu, virtualizāciju ar noturīgu stacking tehnoloģiju un 40GbE līnijas ātrumu, kas sniedz pietiekamu atpakaļsaišu kapacitāti. Aruba 3810 piedāvā visaptverošas 3. slāņa funkcijas, atbilstošus izvietošanas modeļus un ir SDN gatavs ar OpenFlow atbalstu.
Device Type
Switch - 16 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
16 x 10 Gigabit SFP+
Performance
Latency (1 Gbps): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Latency (40 Gbps): 1.5 µs ¦ Throughput (64-byte packet size): up to 285.7 Mpps ¦ Routing/switching capacity: 480 Gbps ¦ Switching fabric speed: 508 Gbps
Capacity
IPv4 routing table entries: 10000 ¦ IPv6 forwarding table entries: 5000
MAC Address Table Size
64K entries
Jumbo Frame Support
Yes
Routing Protocol
OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, CLI, XRMON, SSH 6
Encryption Algorithm
MD5, SSL, TLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Flow control, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, half duplex mode, full duplex mode, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP), dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Zero Touch Auto Provisioning, Multiple VLAN Registration Protocol (MVRP), Ingress Layer 2 MAC Access Control Lists (ACLs), Class of Service (CoS), MACsec support, DNS client, layer 4 prioritisation, 13.5MB packet buffer
Compliant Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX
Processor
2
RAM
6 GB DDR3 SDRAM
Flash Memory
1 GB
Interfaces
16 x 10Gbit LAN SFP+ ¦ 1 x serial (console) RJ-45 ¦ 1 x management RJ-45 ¦ 1 x RJ-45 ¦ 1 x Type B
Expansion Slots
1 (total) / 1 (free) x Stacking Module ¦ 2 (total) / 2 (free) x Expansion Slot
Power Device
Internal power supply (not installed) - hot-plug
Max Supported Qty
2
Power Redundancy
Yes
Included Accessories
Fan tray
Rack Mounting Kit
Included
Compliant Standards
FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, UL 60950, Laser Class 1, UL 60950-1, EN 60825, EN 61000-3-3:2008, CAN/CSA C22.2 No. 60950, VCCI Class A, EN55022:2010, IEC 60950-1:2005 Second Edition, EN 55024:2010, EN 62368-1 Second Edition, IEC 60825:2007, EN 60850-1:2007, IEC 60825-1:2007 Class 1, UL 62368-1 Second Edition, EN 61000-3-2:2006+A1:2009+A2:2009 Class A, CAN/CSA-C22.2 No. 60950-1, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Width
44.25 cm
Depth
43.13 cm
Height
4.39 cm
Weight
6.02 kg
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)
