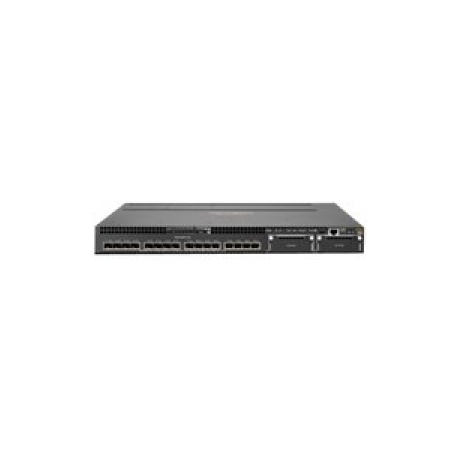

HPE Aruba 3810M 16SFP+ 2-slot Switch - Switch

All offers are visible after login.

Manufacturer

•

HPE

Reference

•

JL075A

Article

•

1299050

Intrastat

•

85176200

Shipping weight

•

8.75 kg

The Aruba 3810 Switch Series provides performance and resiliency for the digital workplace campus network. Based on a powerful ProVision ASIC and ready for high-speed APs with HPE Smart Rate multi-gigabit Ethernet, the Aruba 3810 delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. The Aruba 3810 has comprehensive Layer 3 features, right size deployment models, and is SDN ready with OpenFlow support.

Device Type

Switch - 16 ports - L3 - Managed - stackable

Enclosure Type

Rack-mountable 1U

Subtype

10 Gigabit Ethernet

Ports

16 x 10 Gigabit SFP+

Performance

Latency (1 Gbps): 2.8 µs ¦ Latency (10 Gbps): 1.8 µs ¦ Latency (40 Gbps): 1.5 µs ¦ Throughput (64-byte packet size): up to 285.7 Mpps ¦ Routing/switching capacity: 480 Gbps ¦ Switching fabric speed: 508 Gbps

Capacity

IPv4 routing table entries: 10000 ¦ IPv6 forwarding table entries: 5000

MAC Address Table Size

64K entries

Jumbo Frame Support

Yes

Routing Protocol

OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, CLI, XRMON, SSH 6

Encryption Algorithm

MD5, SSL, TLS

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)

Features

Flow control, DHCP support, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, half duplex mode, full duplex mode, sFlow, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP), dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Zero Touch Auto Provisioning, Multiple VLAN Registration Protocol (MVRP), Ingress Layer 2 MAC Access Control Lists (ACLs), Class of Service (CoS), MACsec support, DNS client, layer 4 prioritisation, 13.5MB packet buffer

Compliant Standards

IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1AX

Processor

2

RAM

6 GB DDR3 SDRAM

Flash Memory

1 GB

Interfaces

16 x 10Gbit LAN SFP+ ¦ 1 x serial (console) RJ-45 ¦ 1 x management RJ-45 ¦ 1 x RJ-45 ¦ 1 x Type B

Expansion Slots

1 (total) / 1 (free) x Stacking Module ¦ 2 (total) / 2 (free) x Expansion Slot

Power Device

Internal power supply (not installed) - hot-plug

Max Supported Qty

2

Power Redundancy

Yes

Included Accessories

Fan tray

Rack Mounting Kit

Included

Compliant Standards

FCC Class A certified, CISPR 22 Class A, EN 60950, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, UL 60950, Laser Class 1, UL 60950-1, EN 60825, EN 61000-3-3:2008, CAN/CSA C22.2 No. 60950, VCCI Class A, EN55022:2010, IEC 60950-1:2005 Second Edition, EN 55024:2010, EN 62368-1 Second Edition, IEC 60825:2007, EN 60850-1:2007, IEC 60825-1:2007 Class 1, UL 62368-1 Second Edition, EN 61000-3-2:2006+A1:2009+A2:2009 Class A, CAN/CSA-C22.2 No. 60950-1, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Width

44.25 cm

Depth

43.13 cm

Height

4.39 cm

Weight

6.02 kg

Service & Support

Limited warranty - lifetime

Min Operating Temperature

0 °C
