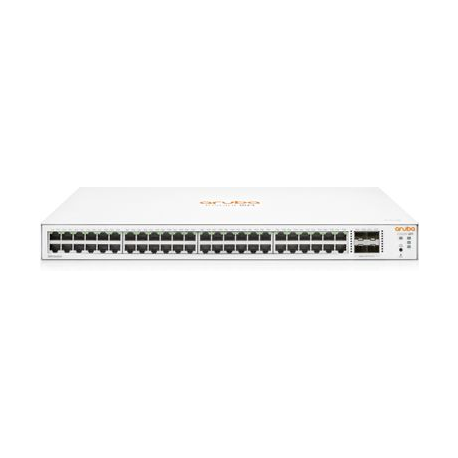

HPE Aruba Instant On 1830 48G 4SFP Switch - Switch - smart - 48 x 10 / 100 / 1000 + 4 x Gigabit SFP - desktop, rack-mountable
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 1893766 Intrastat: 85176200 Ražotāja kods: JL814A#ABB Svītrkods: 190017519784
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Device Type | Switch - 48 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x Gigabit SFP |
| Performance | Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 77.37 Mpps ¦ Switching capacity: 104 Gbps |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMP |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Trusted Platform Module (TPM), Cable Diagnostics Function, LLDP support, DHCP client, Class of Service (CoS), cloud managed, 1.5MB packet buffer, Secure Copy (SCP), Link Aggregation, dual image support, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), BPDU Filter, loop protection, Global Storm Control, Port Scheduling |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Processor | 1 x ARM: 800 MHz |
| RAM | 512 MB SDRAM |
| Flash Memory | 256 MB |
| Status Indicators | Port status, port duplex mode, link/activity, speed |
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x Gigabit LAN SFP |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 40.2 Watt |
| MTBF | 144.4 years |
| Compliant Standards | IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018 |
| Localisation | English / Europe |
| Width | 44.3 cm |
| Depth | 25.3 cm |
| Height | 4.39 cm |
| Weight | 3.54 kg |
| Service & Support | Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
