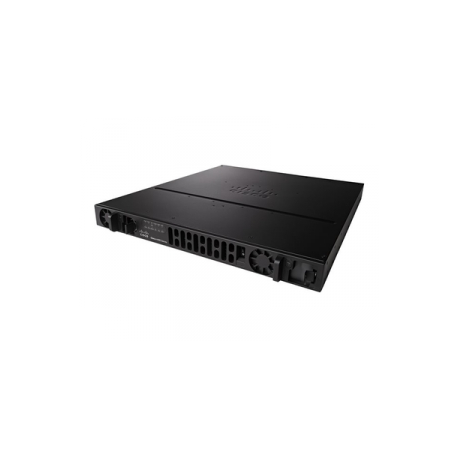

Cisco Integrated Services Router 4431 - Router - GigE - WAN ports: 4 - rack-mountable
Prece var atšķirties no attēlā redzamās, vai attēlā var būt aksesuāri, kas neietilpst preces komplektācijā.
Jaunums
Artikuls: 1141338 Intrastat: 85176200 Ražotāja kods: ISR4431/K9
Cenas un noliktavu atlikumi ir pieejami tikai reģistrētiem lietotājiem.
| Device Type | Router |
| Enclosure Type | Rack-mountable - modular - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Aggregate throughput: 500 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON |
| Features | VPN support, VLAN support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), wall mountable, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, NetFlow, IPFIX |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, CISPR 22 Class A, CISPR 24, EN55024, EN50082-1, AS/NZS 60950-1, ICES-003 Class A, CS-03, R&TTE, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 Class A, GB 4943, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| RAM | 4 GB (installed) / 16 GB (max) - DDR3 SDRAM |
| Flash Memory | 8 GB (installed) / 32 GB (max) |
| Interfaces | WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Serial: 1 x console - RJ-45 ¦ Management: 1 x console - mini-USB Type B ¦ Serial: 1 x auxiliary - RJ-45 ¦ USB 2.0: 2 x 4 pin USB Type A ¦ 4 x SFP (mini-GBIC) ¦ Management: 1 x RJ-45 |
| Expansion Slots | 3 (total) / 3 (free) x NIM ¦ 1 (total) / 1 (free) x ISC ¦ 3 (total) / 0 (free) x DIMM 240-pin ¦ 1 (total) / 0 (free) x eMMC |
| Power Device | Internal power supply - hot-plug |
| Power Redundancy | Optional |
| Installed Qty | 1 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Rack Mounting Kit | Included |
| OS Provided | Cisco IOS IP Base |
| Width | 43.815 cm |
| Depth | 50.72 cm |
| Height | 4.39 cm |
| Weight | 8.4 kg |
| Service & Support | Limited warranty - advance parts replacement - 90 days - response time: 10 days |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 85% |
