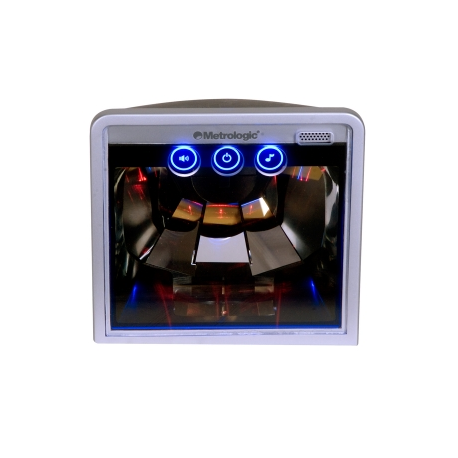

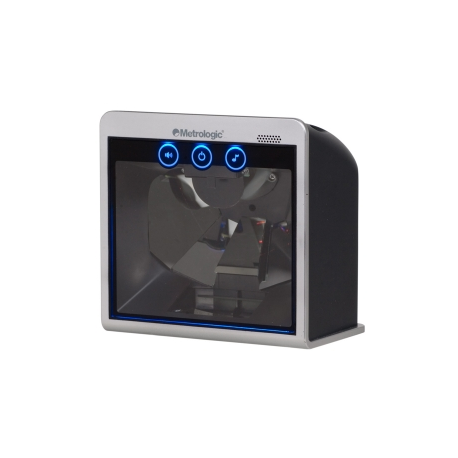

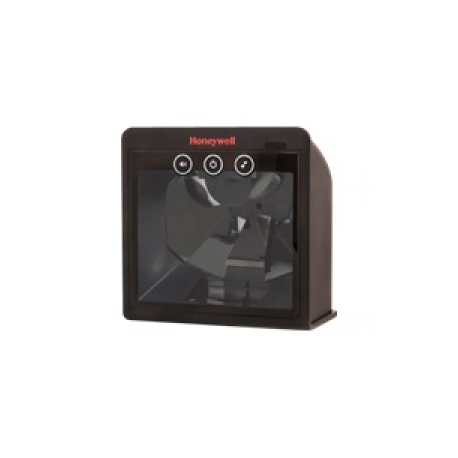

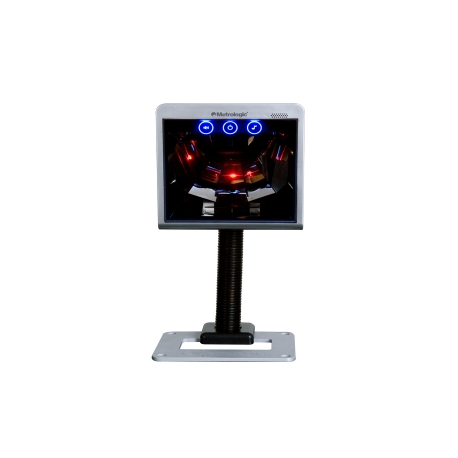

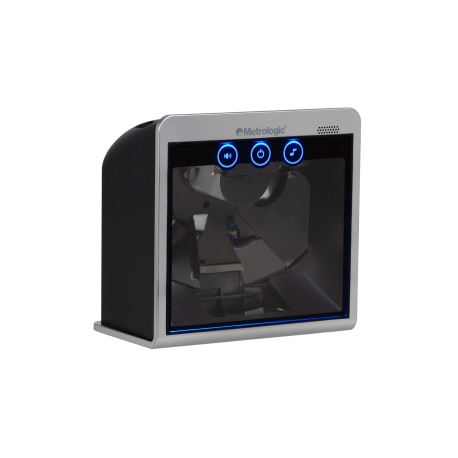

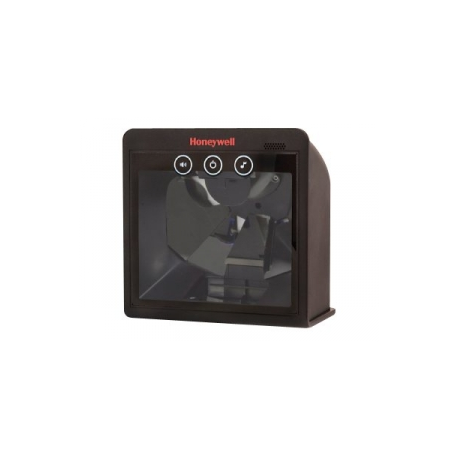

Honeywell MS7820 Solaris - Barcode scanner - desktop - 1800 line / sec - decoded - IBM 46xx, keyboard wedge, RS-232, USB
images are for illustrative purposes only
New
Article: 676728 Intrastat: 84716070 SKU: MS7820-118
Pricing and stock details are available to registered users only.
Honeywell MS7820 Solaris - Barcode scanner - desktop - 1800 line / sec - decoded - IBM 46xx, keyboard wedge, RS-232, USB
| Type | Barcode scanner - desktop - stationary |
| Colour | Dark grey |
| Interface Type | IBM 46xx, keyboard wedge, RS-232, USB |
| Minimum Bar Width | 5 mil |
| Scan Element Type | Visible laser diode |
| Light Source Wave Length | 650 nm |
| Scan Mode | Fixed projection |
| Scan Speed | 1800 line / sec |
| Max Working Distance | 28 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 35% |
| Decode Capability | EAN/JAN, Code 93, Matrix 2 of 5, Code 39, NW-7, GS1 DataBar, Telepen, Code 32, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, MSI-Plessey, China Post, Trioptic Code, EAN-UCC Composite, Code 93i |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| Features | Reduced Space Symbology (RSS) |
| Interfaces | 1 x RS-232 (TTL) - DB-9 ¦ 1 x USB ¦ 1 x PS/2 keyboard wedge ¦ 1 x RS-485 |
| Compliant Standards | EN55022 Class B, ICES-003 Class B, FCC Part 15 B, RoHS, Laser Class 2, WEEE, IEC 60825-1, cULus, EN 60825-1 |
| Software Included | Drivers & Utilities |
| Width | 15.2 cm |
| Depth | 9.2 cm |
| Height | 15.2 cm |
| Weight | 0.7 kg |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
