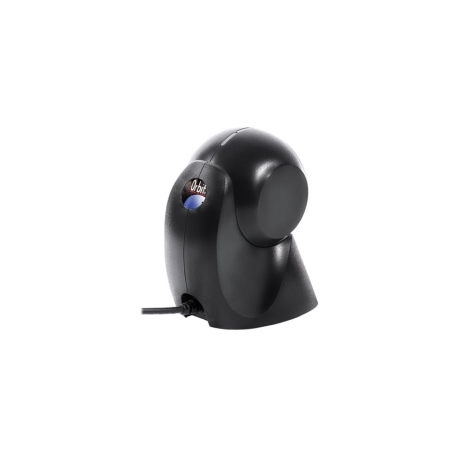

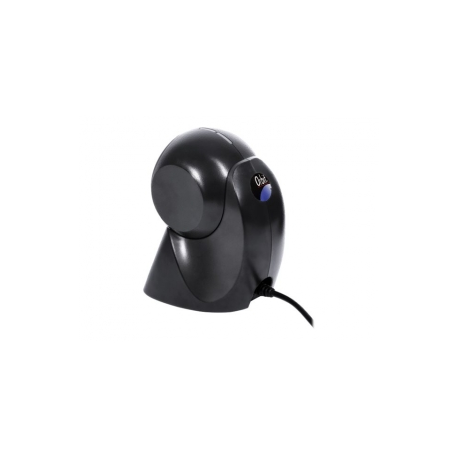

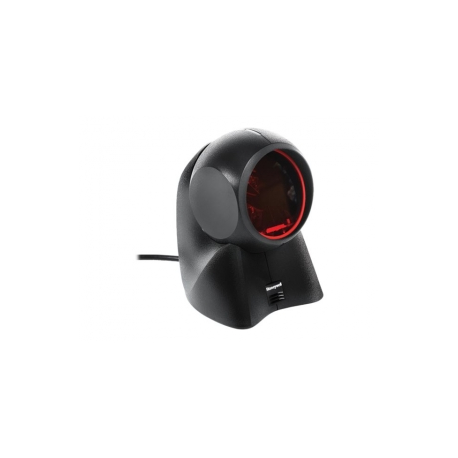

Honeywell Orbit 7190g - Barcode scanner - handheld - Hybrid laser / 2D imager - 1120 line / sec - 30 frames / sec - decoded - keyboard wedge, RS-232, USB, IBM 468x
images are for illustrative purposes only
New
Article: 1388501 Intrastat: 84716070 SKU: 7190g-2USBX-0
Pricing and stock details are available to registered users only.
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Code 39,GS1 DataBar Omnidirectional,U.P.C. |
| 2D (matrix & stacked) barcodes supported | Data Matrix,PDF417,QR Code |
| Working distance | 32.7 cm |
| Read rate (max) | 1120 reads/s |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 70° |
| Light levels (direct sunlight) | 4842 - 100000 lx |
| Connectivity technology | Wired |
| Interface | USB + RS-232 + RS-485 + Keyboard Wedge |
| Product colour | Black |
| Type | Handheld bar code reader |
| LED indicators | Y |
| Built-in display | N |
| Input voltage | 5 V |
| Power consumption | 472 mA |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight | 410 g |
| Width | 103 mm |
| Depth | 108 mm |
| Height | 148 mm |
