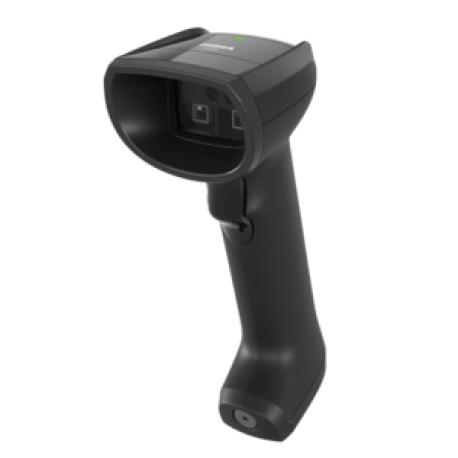

Zebra DS82 Series DS8288 - USB Kit - barcode scanner - handheld - 2D imager - 406 mm / sec - decoded - USB, RS-232, keyboard wedge, Bluetooth 5.2
Manufacturer
•ZEBRA
Reference
•DS8288-SR4U2104PVW
Article
•4474199
Intrastat
•84716070
Total quantity in stocks
•209
Nearest delivery
•21.08.2026
Manufacturer price
•1264.90 €
1D2DUSBSerial portBluetoothKeyboard wedge
Bluetooth scanner, 2D, imager (2 MP, illumination: white), FIPS, vibration, connection: Bluetooth (class 5.2), incl.: cable (USB, 2 m), charging/transmitter cradle (presentation), battery, wireless charging, 3500 mAh, protection class: IP52, colour: black
Type
Barcode scanner - handheld
Colour
Midnight black
Interface Type
USB, RS-232, keyboard wedge, Bluetooth 5.2
Minimum Bar Width
3 mil
Scan Element Type
2D imager - warm white LED
Sensor Resolution
1600 x 1200
Light Source Wave Length
524 nm
Scan Mode
Single-pass
Scan Speed
406 mm / sec
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
16%
Decode Capability
Code 11, Code 128, Code 39, Code 93, Codabar, NW-7, MSI-Plessey, UPC, Industrial 2 of 5, GS1 DataBar, Italy Pharmacode, PDF417, TLC39, Aztec code, Data Matrix, MaxiCode, QR code, Micro QR code, China Han Xin Code, Korean 2 of 5, Postal Code, Composite Codes, Korean 3 of 5
TTL Decoding
Decoded
Connectivity Technology
Wireless
OK Notification
Beeper, LED indicator, vibration
Features
16 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge), Qi inductive charging
Wireless Connectivity
Bluetooth 5.2 LE
Interfaces
1 x USB
1 x RS-232
1 x keyboard wedge
Cables Included
1 x USB-C cable - external
Compliant Standards
IEC 63000:2018, EN 62368-1, IEC 62368-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-19, EN 50663, EN 62479, 47 CFR Part 2.1093, IEC 62471, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 60601-1-2, EN 61000-6-2, ICES-003 issue 7 Class B, EN 300 328, EN 303 417, EN 301 489-1, EN 301 489-17, IP52
Width
6.9 cm
Depth
11.1 cm
Height
17.6 cm
Weight
260.6 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% RH (non-condensing)
Drop Specification
1.8 m to concrete
SPARE BATTERY DS8288 FAMILYCode: BTRY-DS82EAB0E-00
SPARE POWERCAP PACK DS8288Code: SUPR-DS82EAB0E-00
Vertical Hands Free DS8178-DS8288-HC Mounting BracketCode: 3PTY-CM-PN5721-A
DS8288: STANDARD CRADLE, INDUCTIVE, BLUETOOTH, FIPS, MIDNIGHT BLACKCode: CR8288-SC100F4WW
DS8288: PRESENTATION CRADLE, INDUCTIVE, BLUETOOTH, FIPS, MIDNIGHT BLACKCode: CR8288-PC100F4WW
