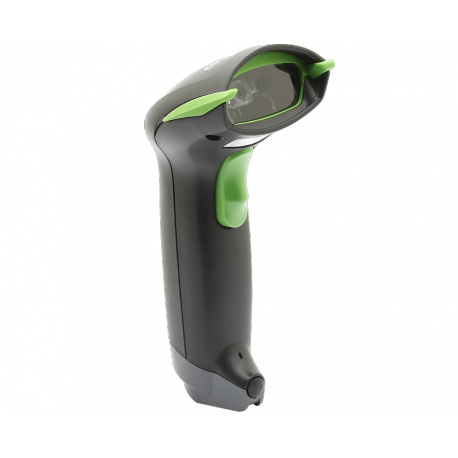

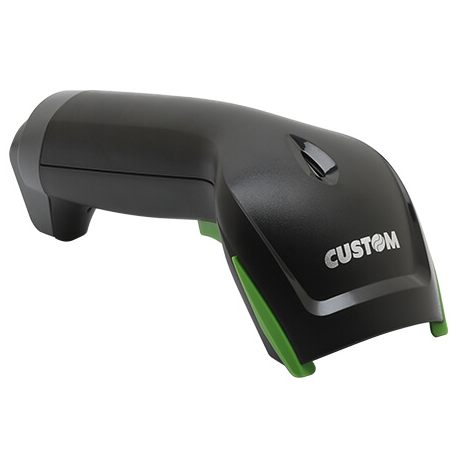

Custom SCANMATIC SM410 - Barcode scanner - handheld - 500 scan / sec - decoded - RS-232, USB

  • SCANMATIC SCANNER BARCODE 1D
  • SCANMATIC SCANNER BARCODE 1D
images are for illustrative purposes only

New

Article: 1885765 Intrastat: 84716070 SKU: 994ED030300233
Pricing and stock details are available to registered users only.
 Add to compare
TypeBarcode scanner - handheld
Interface TypeRS-232, USB
Minimum Bar Width4 mil
Scan Element TypeCCD - Red LED
Light Source Wave Length635 nm
Scan ModeSingle-pass
Scan Speed500 scan / sec
Max Working Distance55 cm
Print Contrast Signal (PCS)25%
Decode CapabilityEAN/JAN, Code 93, Industrial 2 of 5, Code 39, NW-7, Code 32, Code 39 Full ASCII, Italy Pharmacode, Codabar, Code 128, UPC, Interleaved 2 of 5, Plessey, GS1 DataBar Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, GS1 DataBar Stacked, EAN-128, MSI
TTL DecodingDecoded
Connectivity TechnologyWired
OK NotificationBeeper, LED indicator
FeaturesWaterproof, dustproof, rugged
InterfacesUSB ¦ RS-232
Cables Included1 x USB cable - external ¦ 1 x serial cable - external ¦ 1 x USB power cable - external - 1.2 m ¦ 1 x RJ-45 to DB-9 cable - external - 25 cm
Compliant StandardsIP42
Power DevicePower adapter
Electric Current Required110 mA
Width7.35 cm
Depth7.62 cm
Height17.3 cm
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Drop Specification1.8 m
