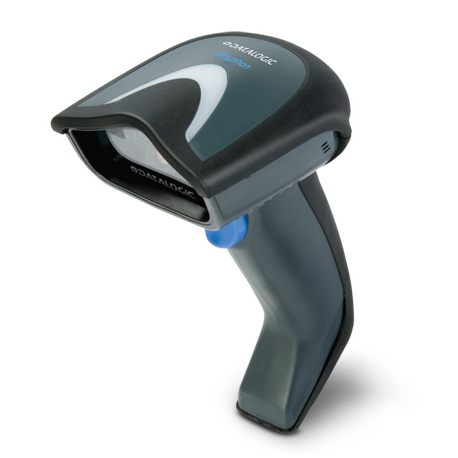

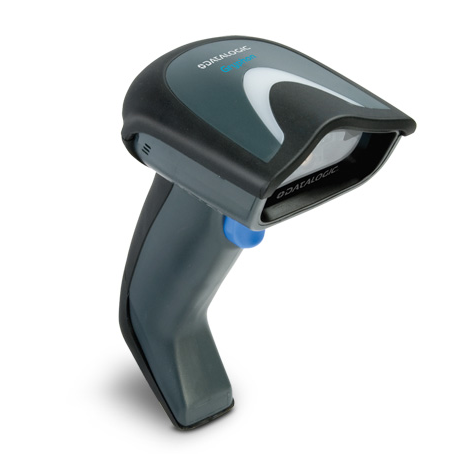

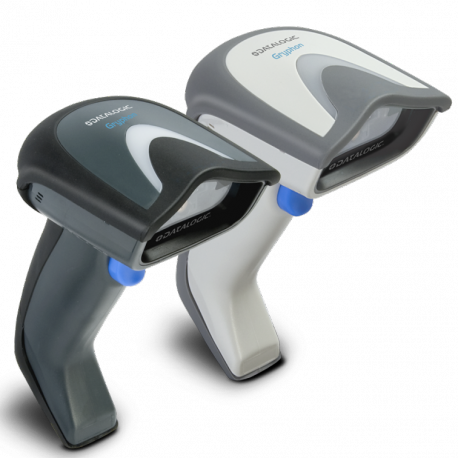

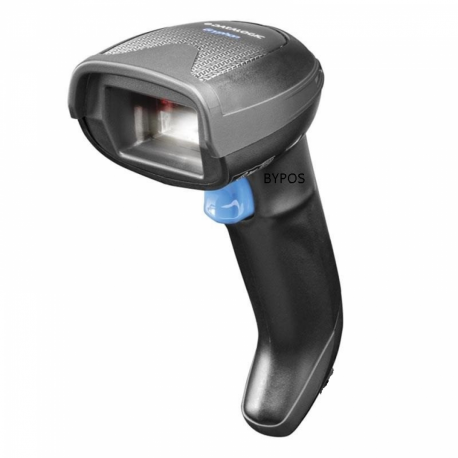

Datalogic Gryphon I GD4132 - Barcode scanner - handheld - linear imager - 325 scan / sec - decoded - keyboard wedge, RS-232, USB, wand

  • Gryphon 1D Black USB 90A052044
  • Gryphon 1D Black USB 90A052044
  • Gryphon 1D Black USB 90A052044
  • Gryphon 1D Black USB 90A052044
images are for illustrative purposes only

New

Article: 1550677 Intrastat: 84716070 SKU: GD4132-BKK1
Pricing and stock details are available to registered users only.
 Add to compare
TypeBarcode scanner - handheld
ColourBlack
Interface TypeKeyboard wedge, RS-232, USB, wand
Minimum Bar Width3 mil
Scan Element TypeLinear imager
Light Source Wave Length630-670 nm
Scan ModeSingle-pass
Scan Speed325 scan / sec
Skew (Degrees)65
Pitch (Degrees)65
Print Contrast Signal (PCS)15%
Decode CapabilityGS1 DataBar, China Post, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked
TTL DecodingDecoded
Connectivity TechnologyWired
OK NotificationBeeper, LED indicator
Interfaces1 x USB ¦ 1 x wand ¦ 1 x RS-232 ¦ 1 x keyboard wedge
Cables Included1 x USB cable - external - 2 m
Compliant StandardsIP52, China RoHS, EU RoHS, EN 60825-1 Class 1
Electric Current Required245 mA (operating), 120 mA (standby)
Width7.1 cm
Depth10 cm
Height18.1 cm
Weight169 g
Service & SupportLimited warranty - 5 years
Min Operating Temperature0 °C
Max Operating Temperature55 °C
Humidity Range Operating0 - 90%
