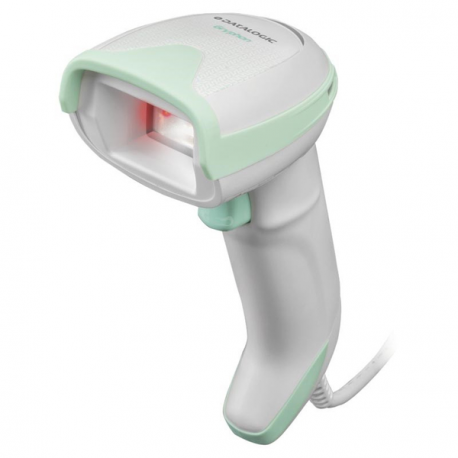

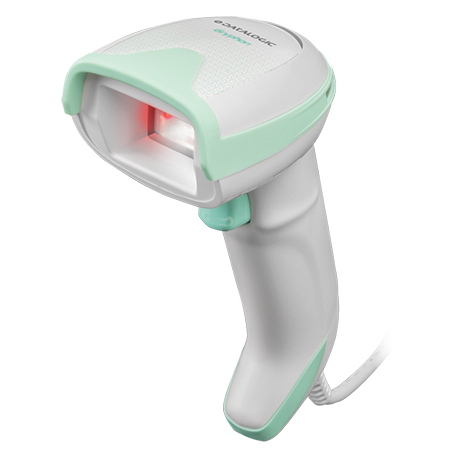

Datalogic Gryphon I GD4590-HC High Density - BPOC Kit - barcode scanner - handheld - 2D imager - decoded - USB
images are for illustrative purposes only
New
Article: 1568634 Intrastat: 84716070 SKU: GD4590-HCK10-HD-BP
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | White |
| Interface Type | USB |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager - Red LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 650 nm |
| Max Working Distance | 40 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Intelligent Mail Barcode, UPC A Composite, UPC E Composite |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | ESD (electrostatic discharge) safe, antimicrobial protection, Datalogic Three Green Lights (3GL), Green Spot technology, Digimarc Barcode Technology, Direct Part Mark (DPM), digital watermark technology |
| Interfaces | 1 x USB - Type A |
| Cables Included | 1 x USB cable - external - 2 m |
| Compliant Standards | IP52, China RoHS, IEC 60825 Class 2, EU RoHS |
| Voltage | DC 4.5 -14 V |
| Width | 6.8 cm |
| Depth | 10.9 cm |
| Height | 16.6 cm |
| Weight | 161 g |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
