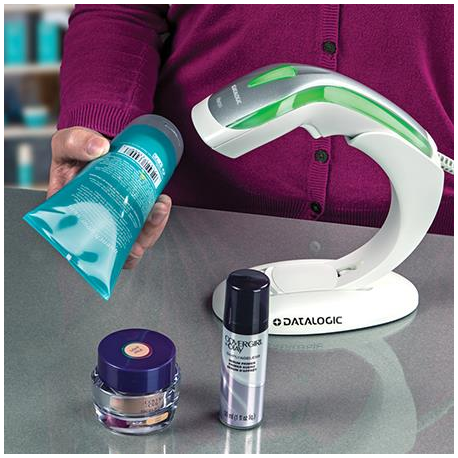

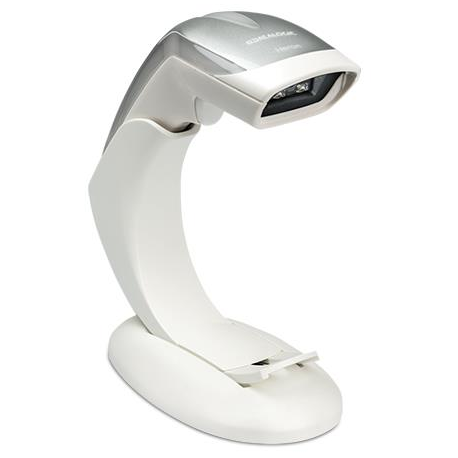

Datalogic Heron HD3430 - Kit - barcode scanner - handheld - 2D imager - decoded - USB
Manufacturer
•DATALOGIC
Reference
•HD3430-WHK1S
Article
•1496204
Intrastat
•84716070
Shipping weight
•0.874 kg
Total quantity in stocks
•39
Nearest delivery
•28.09.2026
Manufacturer price
•437.00 €
1D2DUSBSerial port
Handheld scanner, retail, 2D, Area Imager, Green Spot, multi-interface (RS232, KBW, USB), IP40, incl.: cable (USB), stand (flex stand), colour: white
Type
Barcode scanner - handheld
Colour
White
Interface Type
USB
Minimum Bar Width
4 mil
Scan Element Type
2D imager
Sensor Resolution
752 x 480
Scan Mode
Single-pass
Max Working Distance
40 cm
Skew (Degrees)
60
Pitch (Degrees)
65
Print Contrast Signal (PCS)
15%
Decode Capability
EAN/JAN, Code 93, Code 39, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, EAN-UCC Composite, MacroPDF417, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, UPC A Composite, UPC E Composite
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Triggered, ESD (electrostatic discharge) safe
Interfaces
1 x USB - Type A
Included Accessories

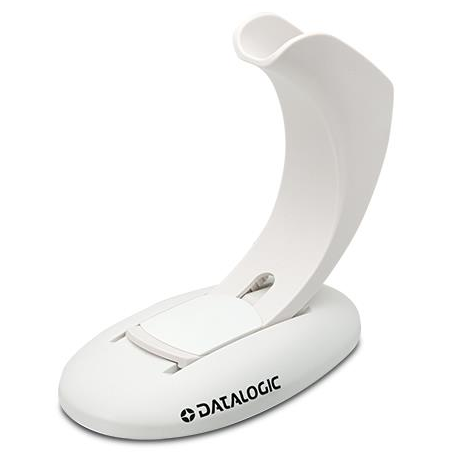

Flex stand
Cables Included
1 x USB cable - external
Compliant Standards
RoHS, IP40, IEC 62471
Voltage
DC 5 V
Electric Current Required
500 mA (peak), 300 mA (typical)
Width
6.8 cm
Depth
15.2 cm
Height
15.3 cm
Weight
150 g
Service & Support
Limited warranty - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 90% (non-condensing)
Drop Specification
1.5 m to concrete
