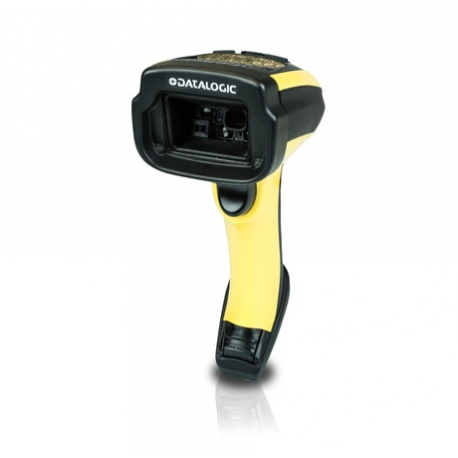

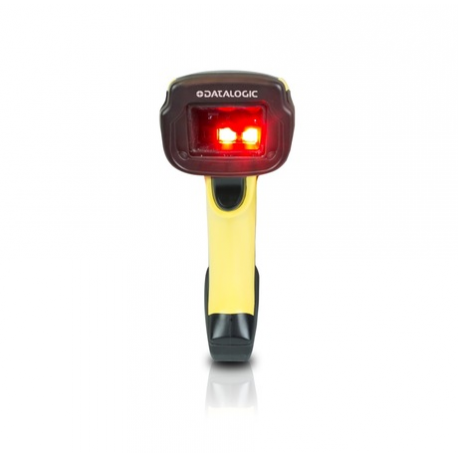

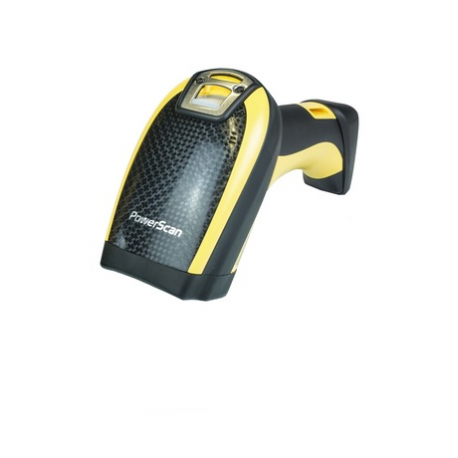

Datalogic PowerScan PD9531-AR - Auto Range - barcode scanner - handheld - 2D imager - decoded - keyboard wedge, RS-232, USB
Datalogic PowerScan PD9531-AR - Auto Range - barcode scanner - handheld - 2D imager - decoded - keyboard wedge, RS-232, USB
Manufacturer
•DATALOGIC
Reference
•PD9531-AR
Article
•1572326
Intrastat
•84716070
Shipping weight
•0.4 kg
Type
Barcode scanner - handheld
Colour
Black, yellow
Interface Type
Keyboard wedge, RS-232, USB
Minimum Bar Width
3 mil
Scan Element Type
2D imager
Scan Mode
Single-pass
Max Working Distance
20 m
Skew (Degrees)
60
Pitch (Degrees)
80
Print Contrast Signal (PCS)
15%
Decode Capability
EAN/JAN, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Features
Rugged, Datalogic Three Green Lights (3GL)
Interfaces
1 x RS-232 ¦ 1 x keyboard wedge ¦ 1 x USB
Compliant Standards
IP65
Voltage
DC 4.5 - 30 V
Electric Current Required
120 mA (standby), 500 mA (operating)
Width
7.4 cm
Depth
11 cm
Height
21.2 cm
Weight
400 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 95% (non-condensing)
Drop Specification
2 m
