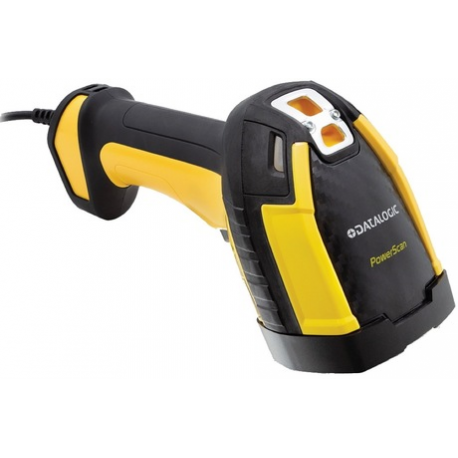

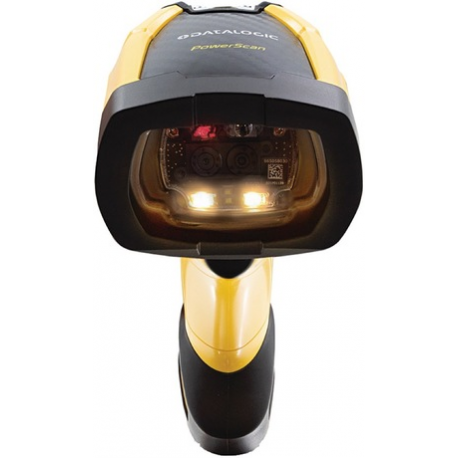

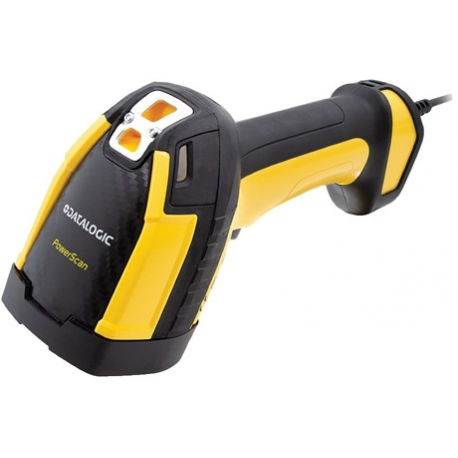

Datalogic PowerScan PD9630-HP - Barcode scanner - handheld - HP - decoded - RS-232, USB
images are for illustrative purposes only
New
Article: 1899365 Intrastat: 84716070 SKU: PD9630-HP
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | Black, yellow |
| Interface Type | RS-232, USB |
| Minimum Bar Width | 2.5 mil |
| Scan Engine Focus Range | High Perfomance (HP) |
| Scan Element Type | Visible laser diode - white LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 630-680 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 242.9 cm |
| Skew (Degrees) | 52 |
| Pitch (Degrees) | 52 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, image capturing, rugged, Datalogic Three Green Lights (3GL) |
| Interfaces | 1 x USB ¦ 1 x RS-232 |
| Compliant Standards | FCC Class B certified, VCCI, BSMI, GOST, NOM, IEC 60950, UL 60950, CSA 22.2 No. 60950, ICES-003 Class B, EMC, FCC Part 15, IC, RoHS, Laser Class 2, KCC, REACH, EN 60825-1, IP65 |
| Voltage | DC 5 V |
| Electric Current Required | 280 mA (operating), 187 mA (standby) |
| Width | 7.9 cm |
| Depth | 14 cm |
| Height | 19 cm |
| Weight | 318 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m |
