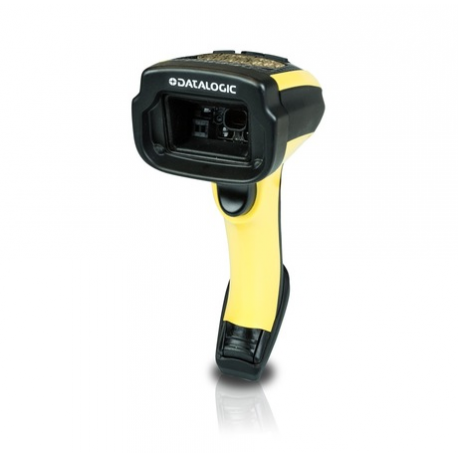

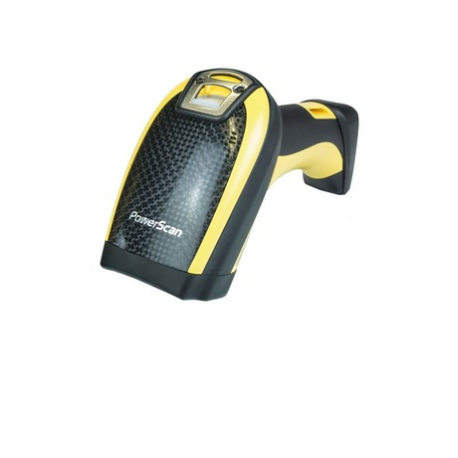

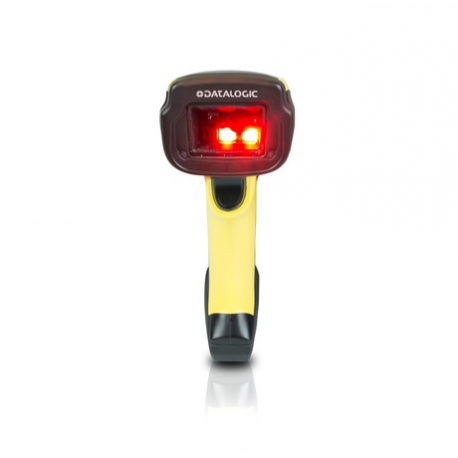

Datalogic PowerScan PM9501-AR - Barcode scanner - portable - 2D imager - decoded - RF(433 MHz)
images are for illustrative purposes only
New
Article: 1668286 Intrastat: 84716070 SKU: PM9501-AR433RB
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - portable |
| Colour | Black, yellow |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Scan Mode | Single-pass |
| Max Working Distance | 20 m |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 80 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, Intelligent Mail Barcode, UPC A Composite, UPC E Composite |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, ESD (electrostatic discharge) safe, Datalogic Three Green Lights (3GL) |
| Compliant Standards | IP65, EN 60825-1 Class 2, CDRH Class II, China RoHS, IEC 62471, EU RoHS |
| Battery | 1 x Lithium Ion |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Weight | 460 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m to concrete |
