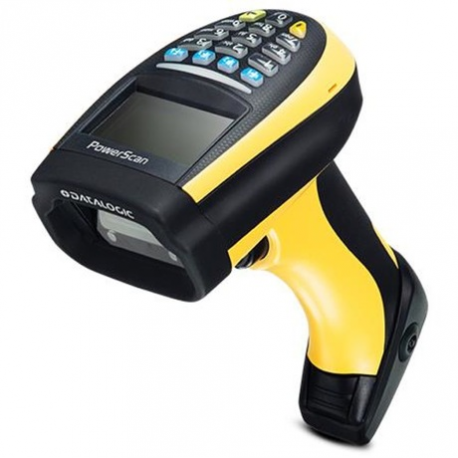

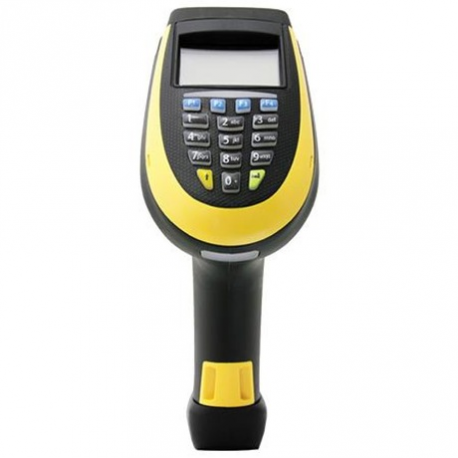

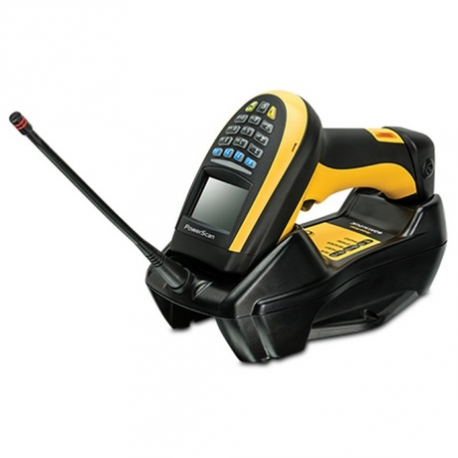

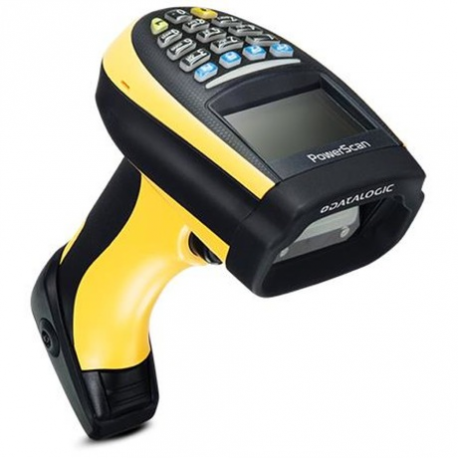

Datalogic PowerScan PM9501-DKHP - USB Kit - barcode scanner - portable - decoded - RF(433 MHz)
images are for illustrative purposes only
New
Article: 1673216 Intrastat: 84716070 SKU: PM9501-DKHP433RK10
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - portable |
| Colour | Black, yellow |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 2.5 mil |
| Scan Element Type | Visible laser diode |
| Sensor Resolution | 1280 x 1024 |
| Light Source Wave Length | 630-680 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 110 cm |
| Skew (Degrees) | 40 |
| Pitch (Degrees) | 40 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Code 93, Industrial 2 of 5, Code 39, ISBT 128, IATA, ISBN, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 39 Full ASCII, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, Plessey, MacroPDF417, RM4SCC, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Swedish Post, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Portuguese Post, EAN-128, EAN-8, EAN-13, MSI, Code 39 CIP, UPC A Composite, UPC E Composite, Base 32 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | Triggered, ESD (electrostatic discharge) safe, Datalogic Three Green Lights (3GL), Datalogic STAR Cordless System, autofocus, Datalogic Motionix technology |
| Keys Qty | 16 |
| Wireless Connectivity | RF |
| Display Resolution | 48 x 132 |
| Character Resolution | 6 lines x 21 characters |
| Interfaces | 1 x USB |
| Included Accessories | Cradle |
| Cables Included | USB cable - external |
| Compliant Standards | REACH, IP65, CDRH Class II, China RoHS, IEC 60825 Class 2, IEC 62471, EU RoHS |
| Power Device | Power adapter |
| Electric Current Required | 150 mA (operating) |
| Battery | 1 x Lithium Ion |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Width | 7.4 cm |
| Depth | 11 cm |
| Height | 21.2 cm |
| Weight | 440 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 2 m to concrete |
