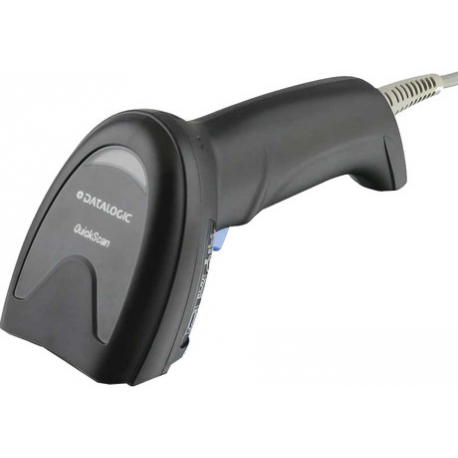

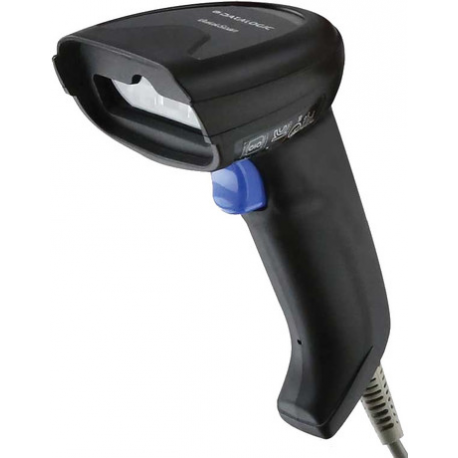

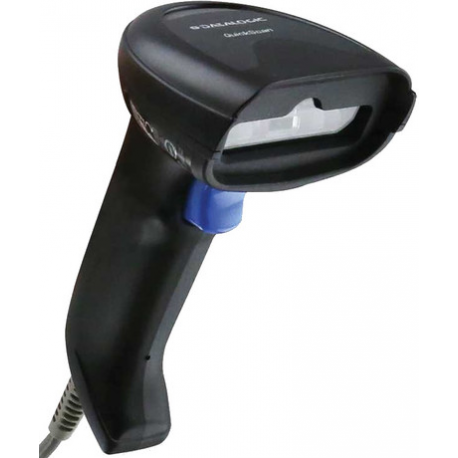

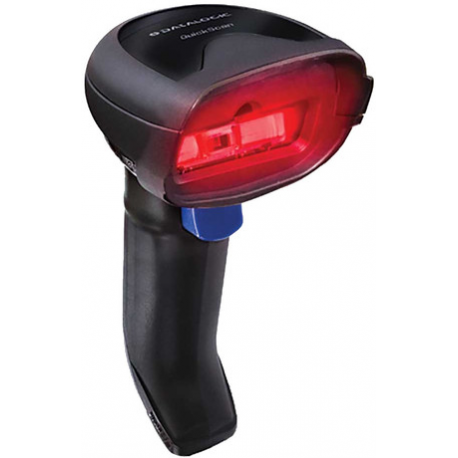

Datalogic QuickScan 2200 Series QD2220 - Barcode scanner - handheld - linear imager - 400 scan / sec - decoded - USB
images are for illustrative purposes only
New
Article: 3044448 Intrastat: 84716070 SKU: QD2220-BK
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | Black |
| Interface Type | USB |
| Scan Element Type | Linear imager - Red LED |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Scan Speed | 400 scan / sec |
| Max Working Distance | 103 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, GS1 DataBar, UPC-A |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Green Spot technology, 16 kV ESD protection (air discharge) |
| Interfaces | 1 x USB - Type A |
| Compliant Standards | IP42, China RoHS, IEC 62471, EU RoHS |
| Electric Current Required | 40 mA (standby), 165 mA (operating) |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Width | 6.7 cm |
| Depth | 10.7 cm |
| Height | 15.6 cm |
| Weight | 123 g |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
