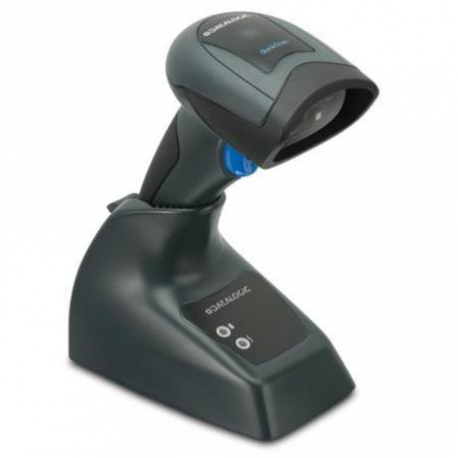

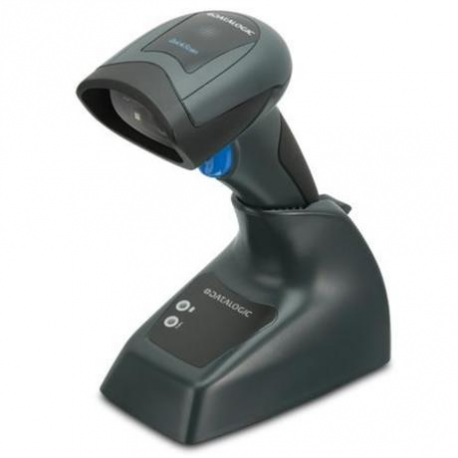

Datalogic QuickScan 2500 Series QM2500 - Kit - barcode scanner - handheld - 2D imager - decoded - RF(433 MHz)
images are for illustrative purposes only
New
Article: 3033285 Intrastat: 84716070 SKU: QM2500-BK-433
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | Black |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager - Red LED |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 51 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | GS1 DataBar, Aztec code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR code, QR code, DotCode, Australian Post, British Post, China Post, IMB, Japanese Post, Kix (Netherlands) Post, PLANET, Postnet, Royal Mail, EAN/JAN, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF417, MicroPDF417, PDF417, UPC A Composite, UPC E Composite, Digimarc Barcode |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Features | Datalogic STAR Cordless System, Green Spot technology, 16 kV ESD protection (air discharge), Datalogic Motionix technology |
| Wireless Connectivity | RF |
| Included Accessories | Cradle |
| Compliant Standards | IP52, China RoHS, EU RoHS, IEC 62471 |
| Electric Current Required | 400 mA (operating), 90 mA (standby) |
| Battery | 1 x Lithium Ion |
| Software Included | Datalogic Aladdin, OPOS/JavaPOS Drivers |
| Width | 6.8 cm |
| Depth | 10.7 cm |
| Height | 15.9 cm |
| Weight | 206.5 g |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
