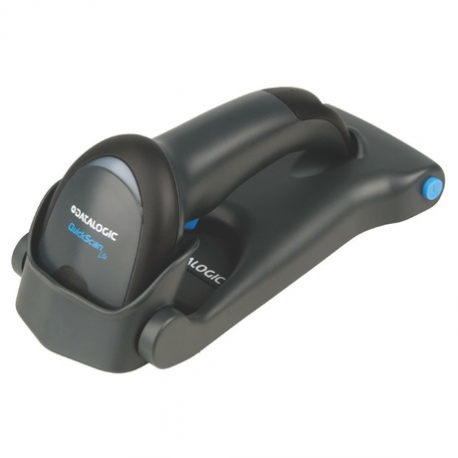

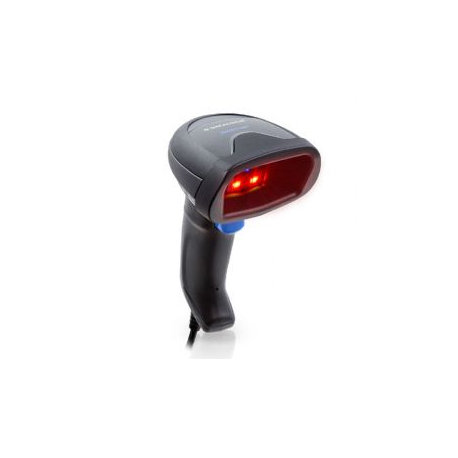

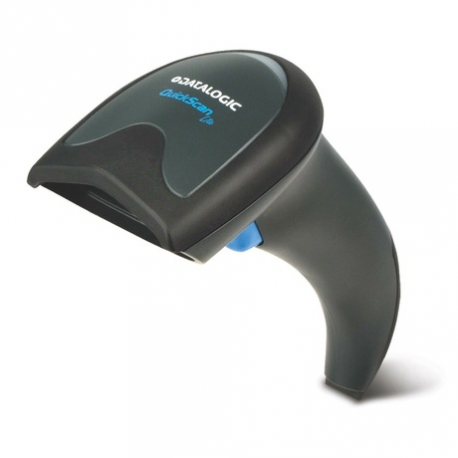

Datalogic QuickScan 2500 Series QW2520 - Kit - barcode scanner - handheld - 2D imager - decoded - USB

  • Datalogic QuickScan Lite QW2520, 2D, USB, kit (USB), black
  • Datalogic QuickScan Lite QW2520, 2D, USB, kit (USB), black
  • Datalogic QuickScan Lite QW2520, 2D, USB, kit (USB), black
images are for illustrative purposes only

New

Article: 1865557 Intrastat: 84716070 SKU: QW2520-BKK1
Pricing and stock details are available to registered users only.
 Add to compare
TypeBarcode scanner - handheld
ColourBlack
Interface TypeUSB
Minimum Bar Width3 mil
Scan Element Type2D imager - Red LED
Sensor Resolution640 x 480
Light Source Wave Length624 nm
Scan ModeSingle-pass
Max Working Distance40 cm
Skew (Degrees)65
Pitch (Degrees)65
Print Contrast Signal (PCS)15%
Decode CapabilityEAN/JAN, Code 93, Code 39, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, Micro QR code, China Han Xin Code, Intelligent Mail Barcode, UPC A Composite, UPC E Composite, DotCode
TTL DecodingDecoded
Connectivity TechnologyWired
OK NotificationBeeper, LED indicator
FeaturesGreen Spot technology, Remote Systems Management
Interfaces1 x USB - Type A
Cables IncludedUSB cable - external
Compliant StandardsRoHS, IP52
Electric Current Required90 mA (standby), 400 mA (typical)
Software IncludedDatalogic Aladdin, OPOS/JavaPOS Drivers
Width6.8 cm
Depth12.6 cm
Height14.8 cm
Weight145 g
Service & SupportLimited warranty - 5 years
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Humidity Range Operating0 - 95% (non-condensing)
Drop Specification1.5 m to concrete
