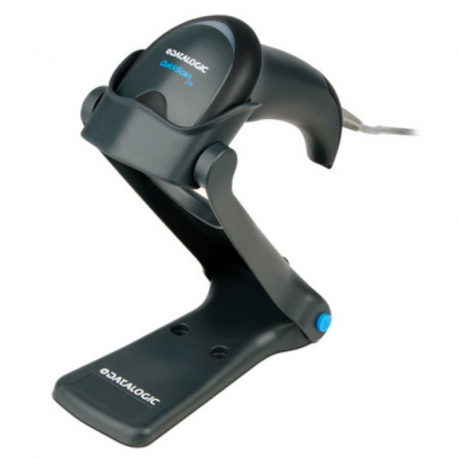

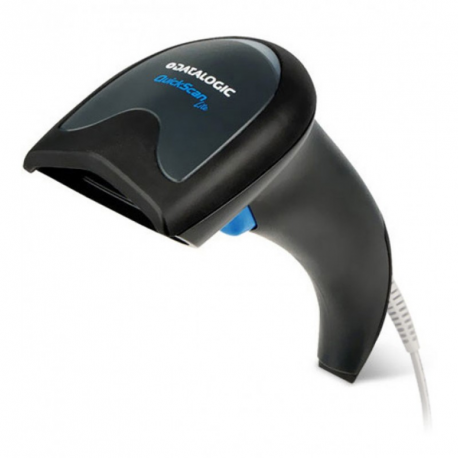

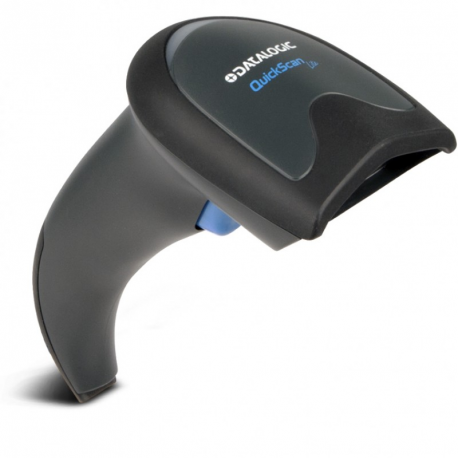

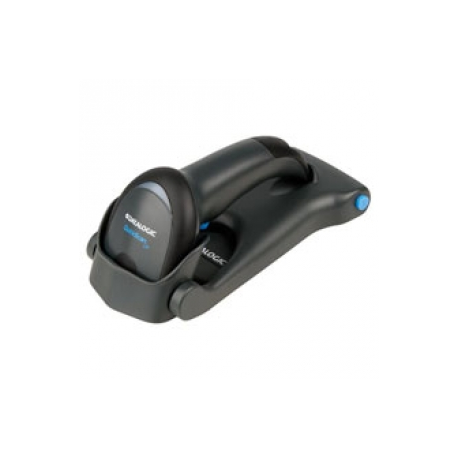

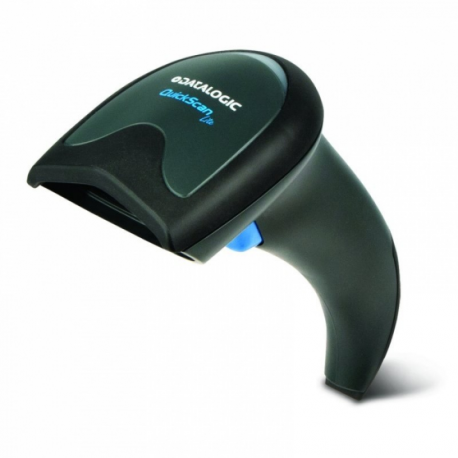

Datalogic QuickScan I Lite QW2100 - Barcode scanner - handheld - linear imager - 400 scan / sec - decoded - keyboard wedge, RS-232
images are for illustrative purposes only
New
Article: 1070973 Intrastat: 84716070 SKU: QW2170-BKK2S-RM
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | Black |
| Interface Type | Keyboard wedge, RS-232 |
| Minimum Bar Width | 4 mil |
| Scan Element Type | Linear imager - Red LED |
| Light Source Wave Length | 610-650 nm |
| Scan Speed | 400 scan / sec |
| Max Working Distance | 60 cm |
| Skew (Degrees) | 70 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | EAN/JAN, GS1 DataBar, Postnet, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, Royal Mail, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Waterproof, Green Spot technology, Remote Systems Management |
| Interfaces | 1 x PS/2 keyboard wedge ¦ 1 x RS-232 |
| Included Accessories | Stand |
| Compliant Standards | RoHS, EN 60825-1, IP42 |
| Electric Current Required | 340 mA (typical), 190 mA (standby) |
| Width | 6.5 cm |
| Depth | 7 cm |
| Height | 17 cm |
| Weight | 119 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
