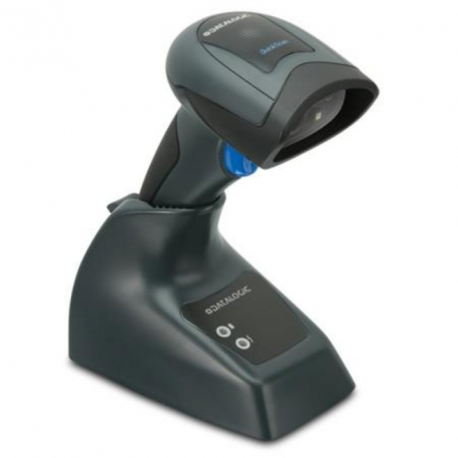

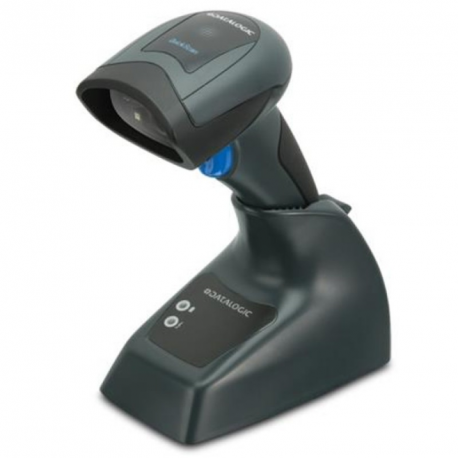

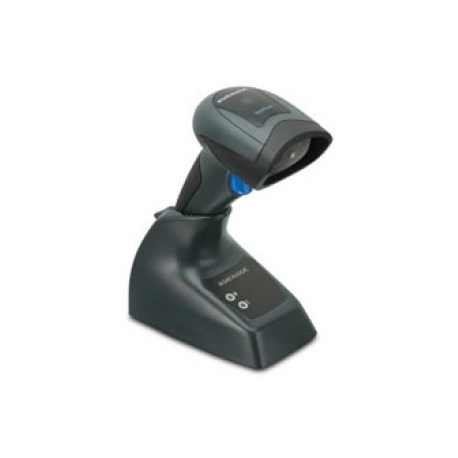

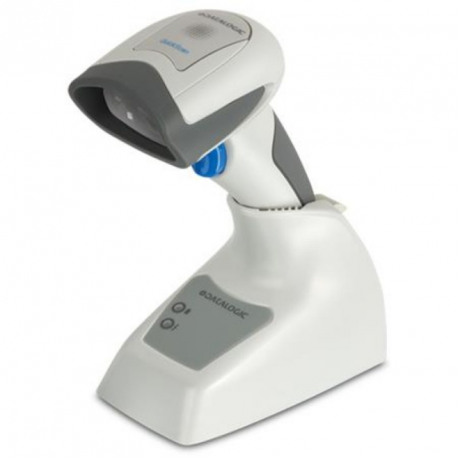

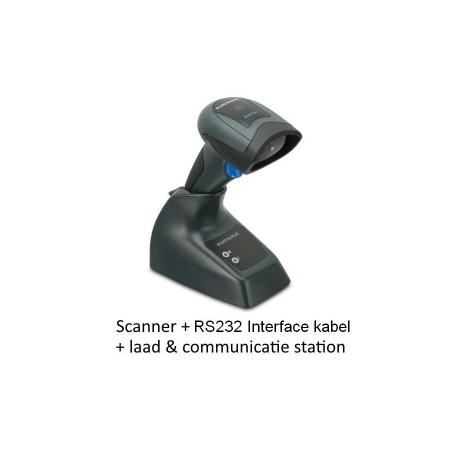

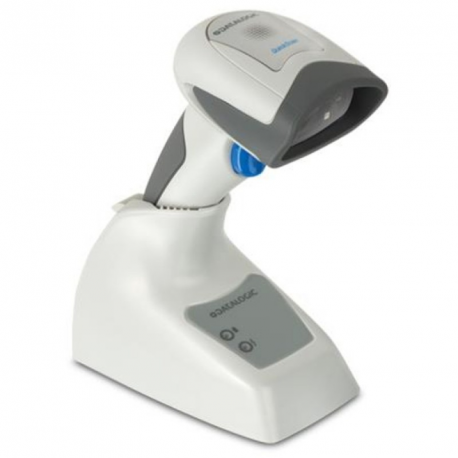

Datalogic QuickScan I QM2430 - Barcode scanner - handheld - 2D imager - decoded - RF(433 MHz)
images are for illustrative purposes only
New
Article: 1123126 Intrastat: 84716070 SKU: QM2430-BK-433K2
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | Black |
| Interface Type | RF(433 MHz) |
| Minimum Bar Width | 4 mil |
| Scan Element Type | 2D imager |
| Light Source Wave Length | 610-650 nm |
| Scan Mode | Single-pass |
| Max Working Distance | 35 cm |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | EAN/JAN, Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Green Spot technology |
| Wireless Connectivity | RF |
| Interfaces | 1 x RS-232 |
| Included Accessories | Cradle |
| Cables Included | 1 x serial cable - external - 1.8 m |
| Compliant Standards | RoHS, IP42, China RoHS |
| Power Device | Power adapter |
| Battery | 1 x Lithium Ion |
| Software Included | Datalogic Aladdin |
| Width | 4.1 cm |
| Depth | 9.1 cm |
| Height | 16.3 cm |
| Weight | 200 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
