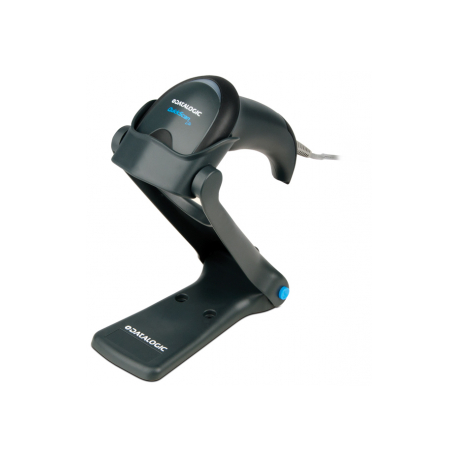

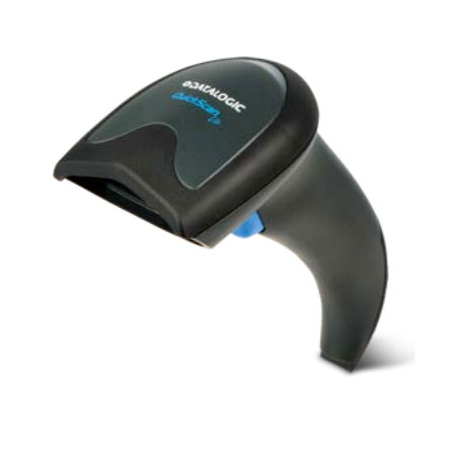

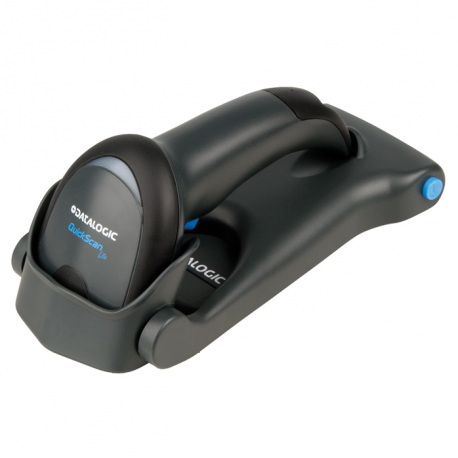

Datalogic QuickScan Lite QW2420 - Barcode scanner - handheld - 2D imager - decoded - USB
images are for illustrative purposes only
New
Article: 1480764 Intrastat: 84716070 SKU: QW2420-BKK1
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - handheld |
| Colour | Black |
| Interface Type | USB |
| Minimum Bar Width | 4 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 640 x 480 |
| Light Source Wave Length | 350-770 nm |
| Max Working Distance | 30 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 20% |
| Decode Capability | EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Postnet, PDF417, Data Matrix, PLANET, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Kix (Netherlands) Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Intelligent Mail Barcode, UPC-A / E, Aztec Mesa |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | ESD (electrostatic discharge) safe, Green Spot technology |
| Interfaces | 1 x USB |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | RoHS, IP42, China RoHS |
| Electric Current Required | 90 mA (standby), 170 mA (typical) |
| Width | 7.1 cm |
| Depth | 6.6 cm |
| Height | 17.1 cm |
| Weight | 120 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
