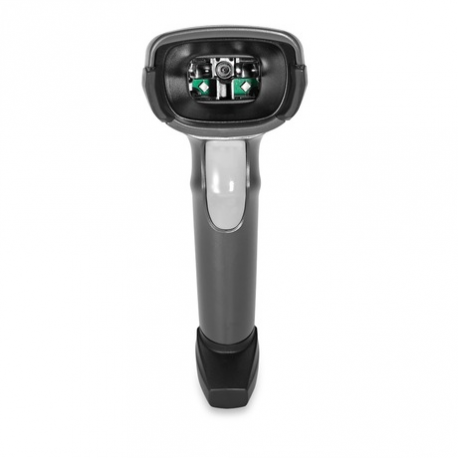

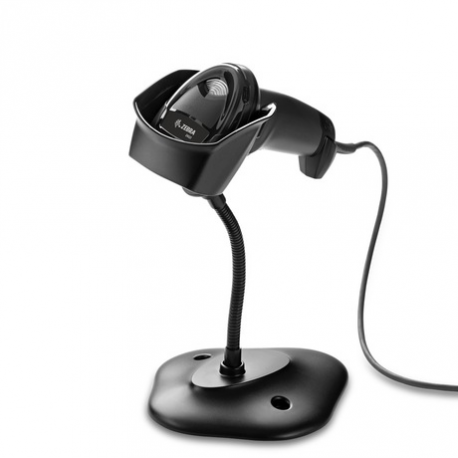

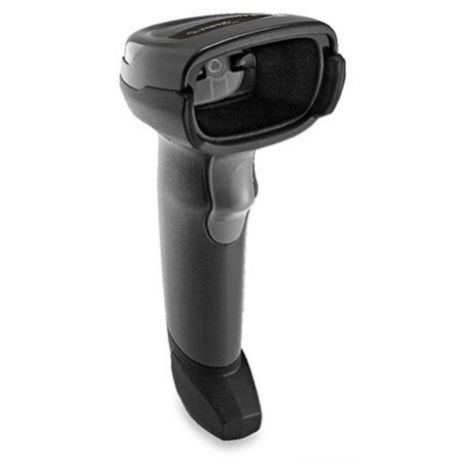

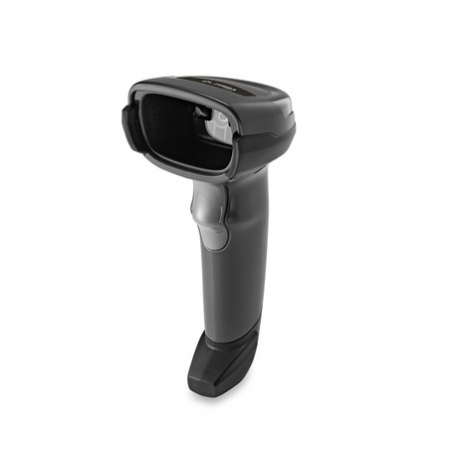

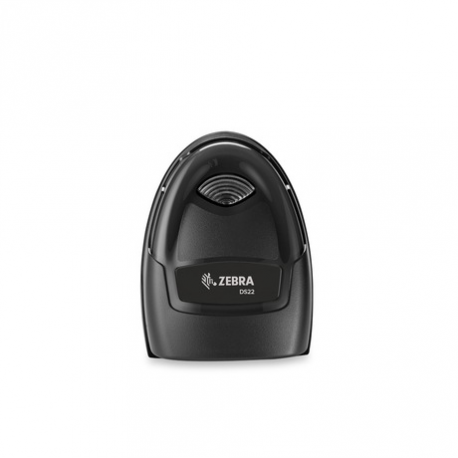

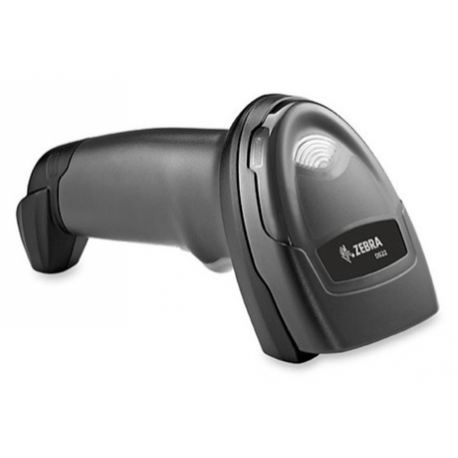

Zebra DS2208 - Barcode scanner - handheld - 2D imager - 762 mm / sec - decoded - USB
Manufacturer
•ZEBRA
Reference
•DS2208-SR7U2500AZW
Article
•1493066
Intrastat
•84716070
Shipping weight
•0.1616 kg
1D2DUSB
Type
Barcode scanner - handheld
Colour
Twilight black
Interface Type
USB
Minimum Bar Width
4 mil
Scan Element Type
2D imager
Sensor Resolution
640 x 480
Light Source Wave Length
645 nm
Scan Mode
Single-pass
Scan Speed
762 mm / sec
Max Working Distance
36.8 cm
Skew (Degrees)
65
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator
Interfaces
1 x USB
Cables Included
1 x USB cable - external - 2.74 m
Compliant Standards
UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Width
6.6 cm
Depth
9.9 cm
Height
16.5 cm
Weight
161.6 g
Service & Support
Limited warranty - 5 years
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
1.5 m to concrete
Zebra - Keyboard wedge cable - 2.1 m - for Symbol LS2208, LS3408-ERCode: CBA-K01-S07PAR
Zebra - Serial cable - DB-9 (F) to RJ-45 (M) - 2.13 m - for Symbol LS2208Code: CBA-R08-S07ZBR
Zebra - Serial cable - DB-9 (F) - 2.13 m - for Symbol LS2208Code: CBA-R01-S07PBR
Zebra - Power adapter - China - for Symbol LS2208; Smart Badge SB1Code: PWR-WUA5V4W0CN
Zebra - Power adapter - for Symbol LS2208; Zebra LI4278Code: PWR-WUA5V4W0US
Zebra - Bar code scanner holder - whiteCode: 21-71043-0BR
Symbol - USB cable - USB (M) - 2.74 m - for Symbol DS4308-HD, DS4308-HLCode: CBA-U25-S09ZAR
Zebra - Keyboard wedge cable - PS / 2 - 2 m - for Symbol LS2208; Zebra LI2208Code: CBA-K61-S07PAR
PWR SPLY, 5.2VDC,1.1A, INDIACode: PWR-WUA5V4W0IN
Zebra - Power adapter - Europe - for Smart Badge SB1Code: PWR-WUA5V4W0EU
Zebra - USB cable - 2.1 m - for Symbol LS2208, LS3408-ERCode: CBA-U03-S07ZAR
Zebra - Serial cable - DB-9 (F) to RJ-45 (10 pin) (M) - 2 m - for Symbol LS2208Code: CBA-R23-S07ZBR
Zebra - Barcode reader battery - Lithium Ion - 2400 mAh - for Zebra DS2278Code: BTRY-DS22EAB0E-00
Zebra - Serial cable - 5 m - for Symbol LS2208Code: CBA-A51-S16ZAR
Zebra - Serial cable - DB-9 (M) - 2.13 m - for Symbol LS2208Code: CBA-R10-S07ZBR
Zebra - Data cable - USB (M) straight - 4.57 m - for Symbol LS2208Code: CBA-U30-S15ZBR
Zebra - Serial cable - DB-9 (F) - 3.7 m - coiled - for Symbol LS2208Code: CBA-R03-C12PAR
CBL SHLD USB PWR+ 15FT (4.6M) STGHT 12VCode: CBA-U35-S15ZBR
Zebra - USB cable - USB - 4.6 m - for Symbol LS2208, LS3408-ERCode: CBA-U10-S15ZAR
Zebra - USB cable - 4.6 m - for Symbol LS2208, LS3408-ERCode: CBA-U15-S15ZAR
Symbol - Serial cable - 3.7 m - for Symbol LS2208, LS4208, LS4278Code: CBA-R41-S12ZAR
Motorola - Serial cable - DB-9 (F) - 2.8 m - for Zebra VC70N0Code: CBA-R37-C09ZAR
Zebra - Serial cable - DB-9 (F) - 2.74 m - coiled - for Symbol LS2208Code: CBA-R46-C09ZBR
Motorola - USB cable - 2.8 mCode: CBA-U27-S09EAR
Zebra - Keyboard wedge cable - 6.1 m - coiled - for Symbol LS2208, LS3408-ERCode: CBA-K08-C20PAR
Zebra - Serial cable - for Symbol LS2208, LS3408-ER; VRC 7942, 7946, 8942, 8946Code: CBA-T13-C09ZAR
Zebra Presentation Cradle - Docking cradle - Bluetooth - for Zebra DS2278-HCCode: CR2278-PC1000BRW
