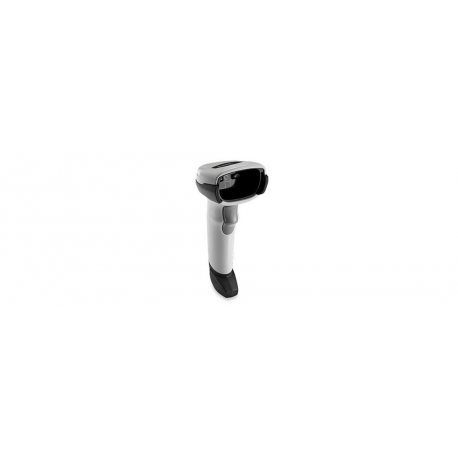

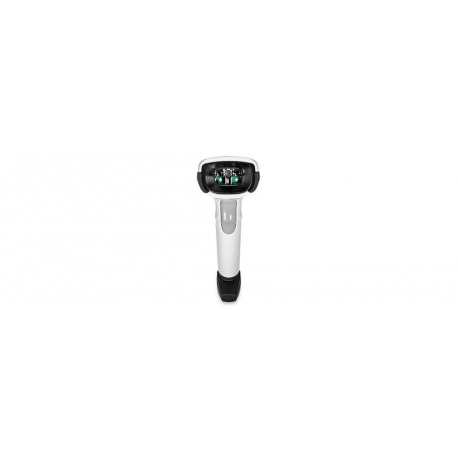

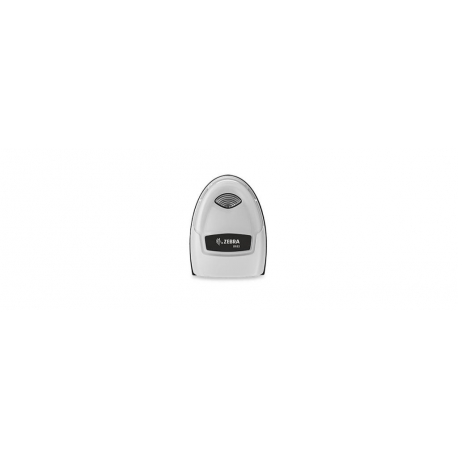

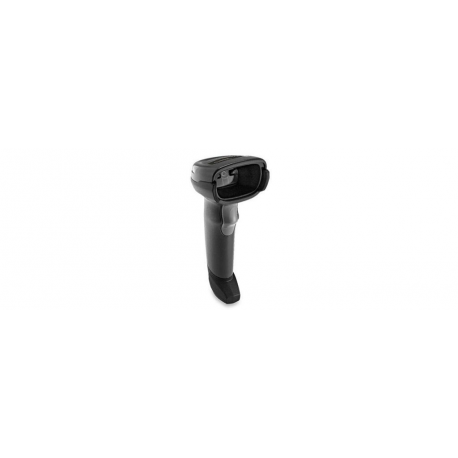

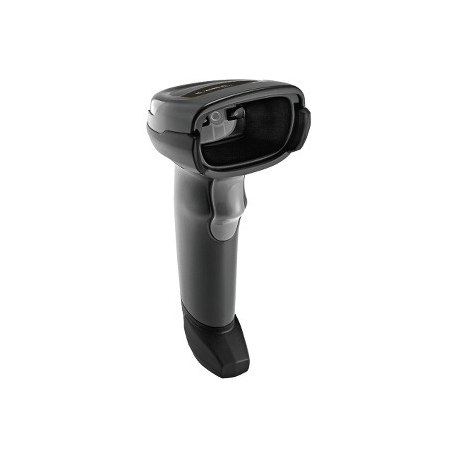

Zebra DS2278 - Standard Range (SR) - barcode scanner - handheld - 2D imager - 762 mm / sec - decoded - Bluetooth 4.0

  • Zebra DS2278, BT, 2D, multi-IF, kit (USB), black
  • Zebra DS2278, BT, 2D, multi-IF, kit (USB), black
  • Zebra DS2278, BT, 2D, multi-IF, kit (USB), black
  • Zebra DS2278, BT, 2D, multi-IF, kit (USB), black
  • Zebra DS2278, BT, 2D, multi-IF, kit (USB), black
images are for illustrative purposes only

New

Article: 1478935 Intrastat: 84716070 SKU: DS2278-SR7U2100PRW Barcode: DS2278-SR7U21
Pricing and stock details are available to registered users only.
 Add to compare
TypeBarcode scanner - handheld
ColourBlack
Interface TypeBluetooth 4.0
Minimum Bar Width4 mil
Scan Element Type2D imager
Sensor Resolution640 x 480
Light Source Wave Length645 nm
Scan ModeSingle-pass
Scan Speed762 mm / sec
Max Working Distance36.8 cm
Skew (Degrees)65
Pitch (Degrees)65
Print Contrast Signal (PCS)25%
Decode CapabilityCode 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, Korean 2 of 5
TTL DecodingDecoded
Connectivity TechnologyWireless
OK NotificationBeeper, LED indicator
Wireless ConnectivityBluetooth 4.0 LE
Included AccessoriesCradle
Cables Included1 x USB cable - external
Compliant StandardsEN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, UL 60950-1, IEC 60950-1, CAN/CSA C22.2 No. 60950, EN 50581, IEC 62471, FCC CFR47 Part 15 B Class B, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2
BatteryLithium Ion
Width6.6 cm
Depth9.9 cm
Height17.5 cm
Service & SupportLimited warranty - 3 years
Min Operating Temperature0 °C
Max Operating Temperature50 °C
Humidity Range Operating5 - 95% (non-condensing)
Drop Specification1.5 m to concrete
