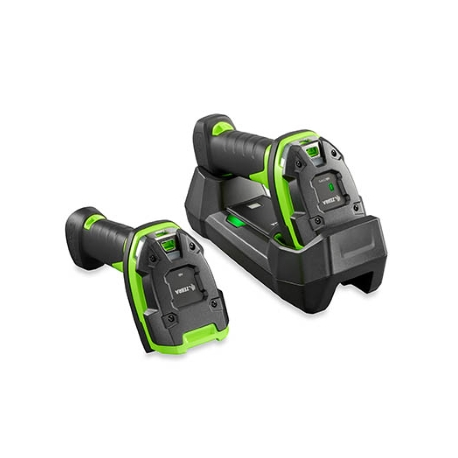

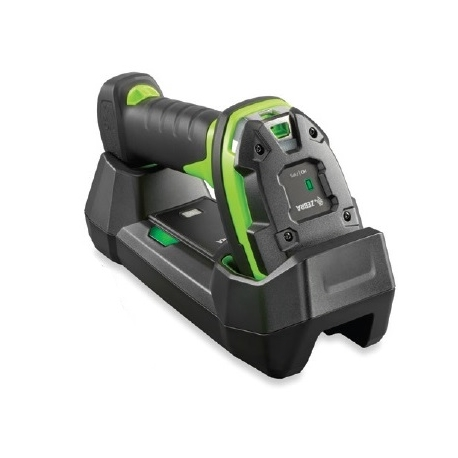

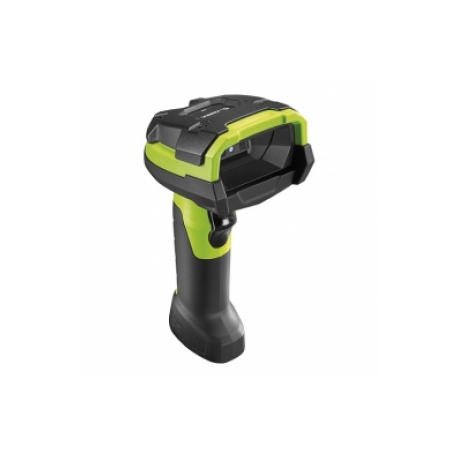

Zebra DS3608-ER - Barcode scanner - handheld - 2D imager - decoded - interface cable required
Manufacturer
•ZEBRA
Reference
•DS3608-ER20003VZWW
Article
•1334862
Intrastat
•84716070
Shipping weight
•0.432 kg
Total quantity in stocks
•12
Nearest delivery
•28.09.2026
Manufacturer price
•790.20 €
2DLong range
Type
Barcode scanner - handheld
Colour
Industrial green
Interface Type
Interface cable required
Scan Element Type
2D imager
Sensor Resolution
1280 x 800
Light Source Wave Length
655 nm
Skew (Degrees)
60
Pitch (Degrees)
60
Print Contrast Signal (PCS)
25%
Decode Capability
Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, DotCode, Composite, Han Xin, Korean 3 of 5, Base 32, Chinese Sensible Code
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper, LED indicator, vibration
Features
Rugged
Compliant Standards
UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Width
7.6 cm
Depth
13.2 cm
Height
18.5 cm
Weight
334 g
Service & Support
Limited warranty - 3 years
Min Operating Temperature
-30 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Drop Specification
2.4 m to concrete
Zebra - Power cable - for Zebra DS3608, DS3678Code: CBL-DC-451A1-01
Zebra - Power cable - 12 V - 1.5 ACode: CBL-36-453A-01
Zebra - Data cable - USB (M) - 12 V - 2.13 m - moldedCode: CBA-U42-S07PAR
Zebra - Serial cable - DB-9 (F) to DB-9 (F) - 2 mCode: CBA-R07-S07PAR
Zebra - Foam insert - for P / N: 21-52612-01RCode: MISC-000035U-007
Zebra - Power adapter - AC 100-240 V - 50 WattCode: PWR-BGA12V50W0WW
Zebra - Power cableCode: CBL-36-452A-01
Zebra - Data cable - USB (M) locking - 3.66 m - coiled - for Zebra VC70N0Code: CBA-UF7-C12ZAR
Zebra - USB cable - USB-C (M) to RJ-45 (M) - 1.2 A - 2.13 mCode: CBA-U61-S07ZAR
Zebra - Barcode scanner mounting plateCode: BRKT-MM0036W-00
Zebra - Barcode reader battery - for Zebra DS3608, DS3678, LI3608, LI3678Code: BTRY-36IAB0E-00
Zebra - Serial cable - DB-9 (F) to RJ-45 (10 pin) (M) - 12 V - 4.6 mCode: CBA-R21-S15PAR
Zebra - Power / data cable - USB, DB-9 - 2.74 m - coiled - for Zebra DS3608-ERCode: CBA-UF4-C09ZAR
Zebra - Data cable - 4.57 m - for Zebra DS7708-SRCode: CBA-U45-S15ZAR
Zebra - USB / serial cable - 2.7 m - coiledCode: CBA-UF5-C09ZAR
Zebra - Serial cable - 2.74 m - coiled - for Zebra ForkLift CradleCode: CBA-RF4-C09ZBR
Zebra - Power cable - USB (M) - 3.66 m - coiledCode: CBA-UF8-C12ZAR
Zebra - Network adapter - Ethernet - for Zebra DS3608, DS3678, LI3608, LI3678Code: EA3600-T1CP-00
