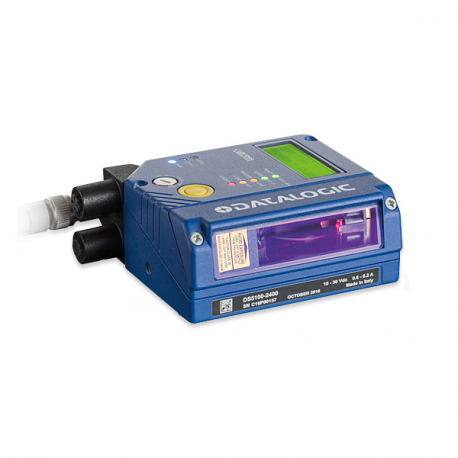

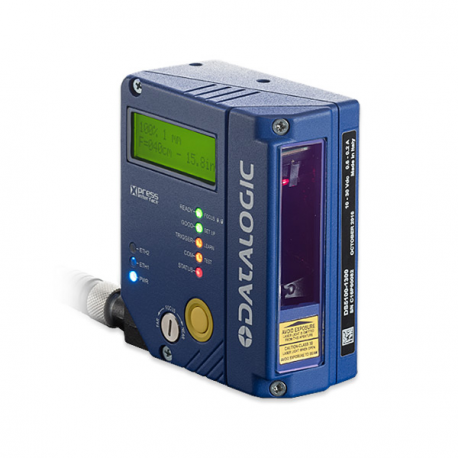

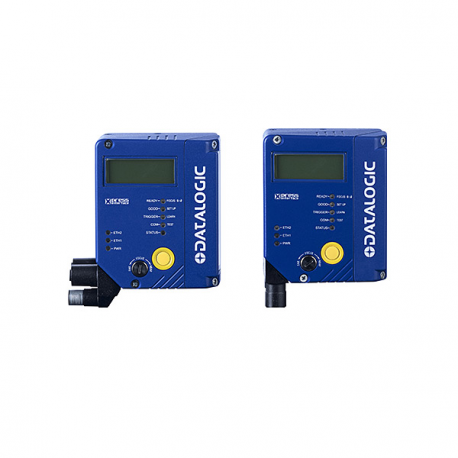

Datalogic DS5100-2320 - Long Range - barcode scanner - desktop - 800 scan / sec - decoded - Ethernet, RS-232 / 485
Datalogic DS5100-2320 - Long Range - barcode scanner - desktop - 800 scan / sec - decoded - Ethernet, RS-232 / 485
Manufacturer
•DATALOGIC
Reference
•931061337
Article
•1558983
Intrastat
•84719000
Shipping weight
•0.715 kg
Type
Barcode scanner - desktop - stationary
Interface Type
Ethernet, RS-232/485
Minimum Bar Width
8 mil
Scan Element Type
Laser
Scan Speed
800 scan / sec
Max Working Distance
140 cm
Decode Capability
Code 93, Code 39, ISBT 128, Codabar, Code 128, Code 2 of 5, UPC, Plessey, Pharmacode, EAN-128
TTL Decoding
Decoded
Connectivity Technology
Wired
Features
X-PRESS interface, ACR 4, Digital Signal Technology (DST)
Character Resolution
2 lines x 16 characters
Interfaces
1 x RS-232/485 ¦ 1 x Ethernet
Compliant Standards
IP65
Voltage
DC 10 - 30 V
Power Consumption Operational
7.5 Watt
Width
11.67 cm
Depth
14.29 cm
Height
4.84 cm
Weight
715 g
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
