Datalogic Matrix 120 311-000 - Wide Angle - barcode scanner - integrated - 36 frames / sec - decoded - RS-232 / 422, USB

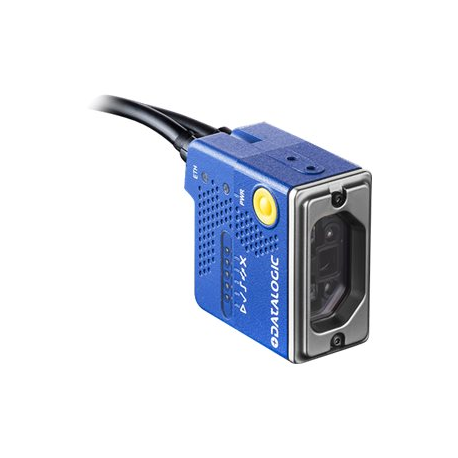

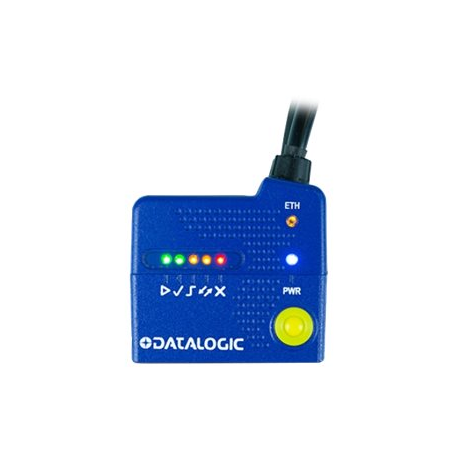

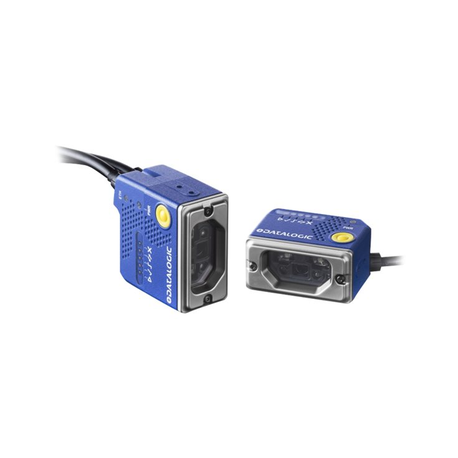

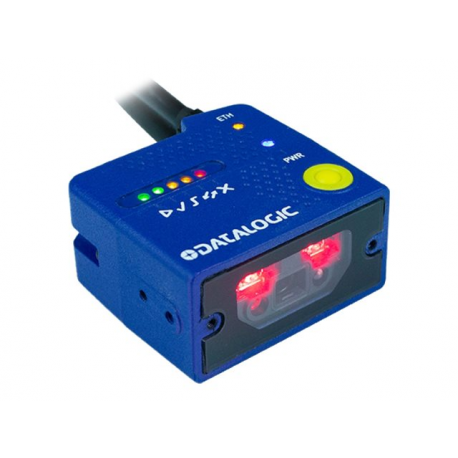

images are for illustrative purposes only
New
Article: 1679653 Intrastat: 84719000 SKU: 937800008
Pricing and stock details are available to registered users only.
| Type | Barcode scanner - integrated - stationary |
| Interface Type | RS-232/422, USB |
| Scan Element Type | CMOS |
| Sensor Resolution | 1280 x 960 |
| Scan Mode | Fixed projection |
| Frame Rate | 36 frames / sec |
| Pitch (Degrees) | 35 |
| Decode Capability | Code 93, Matrix 2 of 5, Code 39, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, Code 39 Full ASCII, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, Australian Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, Micro QR code, Pharmacode, Swedish Post, Standard 2 of 5, Intelligent Mail Barcode, MSI, GS1-128, UPC-A / E, EAN-8/13, Composite, DWCODE |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Programmable, X-PRESS interface, Green Spot technology |
| Interfaces | 1 x RS-232/422 ¦ 1 x Ethernet |
| Compliant Standards | IP65, IEC 60825-1:2007, IEC/EN 62471 |
| Voltage | DC 5 - 30 V |
| Power Consumption Operational | 2.4 Watt |
| Width | 4.54 cm |
| Depth | 4.85 cm |
| Height | 2.35 cm |
| Weight | 200 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
