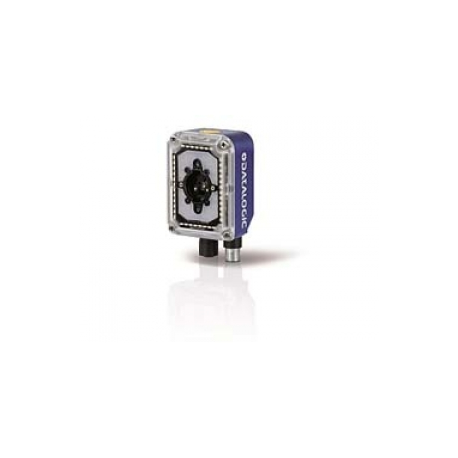

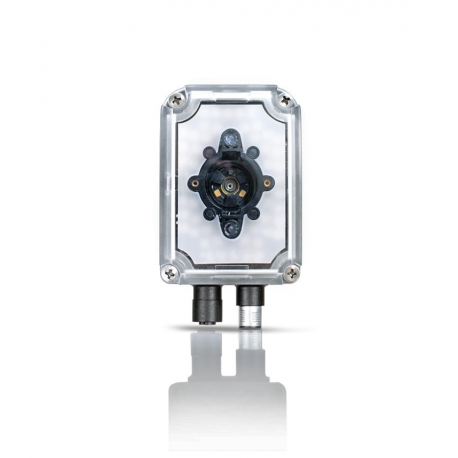

Datalogic Matrix 300N 423-010 - Barcode scanner - desktop - 60 frames / sec - decoded - Ethernet 100, RS-232 / 422 / 485

  • Datalogic MATRIX 300N 423-010 (MATRIX 300N 423-010, LNS-9 RED MED STD)
  • Datalogic MATRIX 300N 423-010 (MATRIX 300N 423-010, LNS-9 RED MED STD)
  • Datalogic MATRIX 300N 423-010 (MATRIX 300N 423-010, LNS-9 RED MED STD)
images are for illustrative purposes only

New

Article: 1389547 Intrastat: 84719000 SKU: 937600084
Pricing and stock details are available to registered users only.
 Add to compare
TypeBarcode scanner - desktop - stationary
Interface TypeEthernet 100, RS-232/422/485
Scan Element TypeCMOS
Sensor Resolution1280 x 1024
Scan ModeFixed projection
Frame Rate60 frames / sec
Decode CapabilityQR code, MaxiCode, Aztec code, Postnet, Data Matrix, PLANET, Japanese Post, Royal Mail, Micro QR code
TTL DecodingDecoded
Connectivity TechnologyWired
OK NotificationBeeper, LED indicator
FeaturesX-PRESS interface, autofocus, manual lens 9 mm, red LEDs illumination
Interfaces1 x RS-232/422/485 ¦ 1 x Ethernet
Compliant StandardsIP67
VoltageDC 10 - 30 / 48 V
Power Consumption Operational8 Watt
Width5.4 cm
Depth4.3 cm
Height9.5 cm
Weight238 g
Min Operating Temperature0 °C
Max Operating Temperature50 °C
