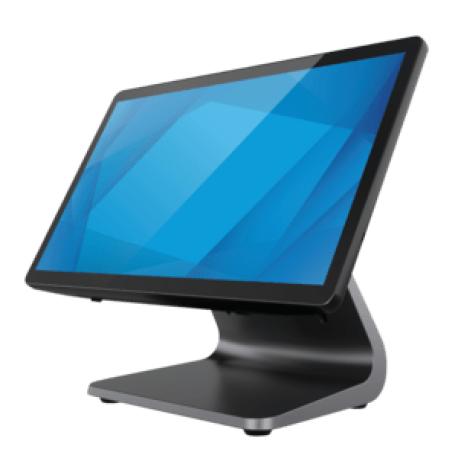

Elo E-Series 3 - All-in-one N-series N97 / up to 3.6 GHz - RAM 8 GB - SSD 128 GB - NVMe - UHD Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3 - 11 IoT Enterprise 2024 LTSC - monitor: LED 15.6" 1920 x 1080 (Full HD) @ 60 Hz touchscreen - black
New
Article: 4203148 Intrastat: 84714900 SKU: E849902
Pricing and stock details are available to registered users only.
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Built-in Devices | Dual 2 W speakers |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| CPU | Intel N-series N97 |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache, Intel Platform Trust Technology (PTT) |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| Installed Size | 8 GB (installed) / 16 GB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 2400 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | SO-DIMM 262-pin |
| Slots | 1 (Total) / 0 (empty) |
| Configuration Features | 1 x 8 GB |
| Type | SSD - M.2 |
| Capacity | 1 x 128 GB |
| Interface Type | PCI Express |
| SSD Endurance | 80 TB |
| Features | NVM Express (NVMe) |
| Type | No optical drive |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 15.6" |
| Native Resolution | 1920 x 1080 (Full HD) |
| V-Sync Rate at Max Res. | 60 Hz |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Response Time | 25 ms |
| Image Brightness | 170 cd/m² |
| Image Contrast Ratio | 500:1 |
| Monitor Features | TouchPro Pro Projected Capacitive (PCAP) technology, 262,000 colours |
| Graphics Processor | Intel UHD Graphics |
| Speakers Included | 2 x right / left channel |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.3 |
| Interfaces | 1 x audio connector ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ 2 x USB 2.0 - micro-USB (1 right side, 1 bottom) (for Elo Edge Connect peripherals) ¦ 2 x serial - RJ-45 ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging) |
| Included Accessories | Cable tie |
| Cables Included | RJ-45 to DB-9 cable |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 75 x 75 mm, VESA |
| Compliant Standards | cUL, UL, IC, FCC, Europe CE, RCM, UKCA, CB, Argentina S-Mark, ANATEL, Mexico NOM, RoHS, CoC |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 90 Watt |
| Power Consumption Operational | 30 Watt |
| Power Consumption Sleep | 2 Watt |
| OS Provided | Windows 11 IoT Enterprise 2024 LTSC |
| Service & Support | Limited warranty - 3 years |
| Width | 37.04 cm |
| Depth | 18.26 cm |
| Height | 29.84 cm |
| Weight | 3.2 kg |
| Shipping Width | 46.5 cm |
| Shipping Depth | 26.2 cm |
| Shipping Height | 37.6 cm |
| Shipping Weight | 5 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
