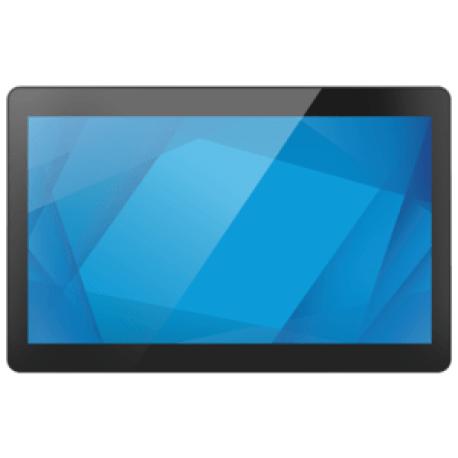

Elo I-Series 3 - All-in-one - Core i5 i5-1245UL / 1.6 GHz - RAM 8 GB - SSD 128 GB - NVMe - Intel Iris Xe Graphics - GigE, Bluetooth 5.2 - WLAN: 802.11a / b / g / n / ac / ax, Bluetooth 5.2 - Win 10 IoT Enterprise 2021 LTSC - monitor: LED 15.6" 1920 x 1080 (Full HD) @ 60 Hz touchscreen - black
Manufacturer
•ELO TOUCHSYSTEMS
Reference
•E706223
Article
•3345238
Intrastat
•84714900
Shipping weight
•9.482 kg
Total quantity in stocks
•1
Nearest delivery
•21.09.2026
Manufacturer price
•2724.00 €
15"Intel Core i58 GBWith SSDAnti glareTouch screen10 cores
Affordable interactive signage systems with Windows, Windows-based all-in-one systems, ideal for interactive sales support, 15.6" display size, antiglare glass properties, black, Intel Core i5 processor, 8GB RAM, 128GB SSD, storage type: SSD, projected capacitive touch technology, display resolution: 1920x1080pixels, 25ms response time, 297.5cd brightness, 1000:1 contrast, 170/170° (H/V) viewing angle, VESA mount (75x75mm), interfaces: Bluetooth, Wi-Fi (Wi-Fi (802.11ax)), wired data (Audio, Ethernet, Ethernet (10/100/1000 Mbit), Powered-USB, RS232, USB, USB-A, USB-C, USB 3.0), connectivity: RS232, POS system properties: speaker, accessories: power cord (EU, US), external power supply, operating system: Windows 10 IoT Enterprise
Type
Personal computer
Product Form Factor
All-in-one
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Colour
Black
Localisation
Region: Worldwide
CPU
Intel Core i5 (12th Gen) i5-1245UL
Clock Speed
1.6 GHz
Max Turbo Speed
4.4 GHz (P-core) / 2.5 GHz (E-core)
Number of Cores
10-core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Turbo Boost Technology 2
Installed Size
12 MB
Cache Per Processor
12 MB
Installed Size
8 GB / 32 GB (max)
Technology
DDR5 SDRAM
Effective Memory Speed
4800 MHz
Rated Memory Speed
4800 MHz
Form Factor
SO-DIMM 262-pin
Slots
2 (Total) / 1 (empty)
Configuration Features
1 x 8 GB
Type
SSD - M.2
Capacity
1 x 128 GB
Interface Type
PCI Express
SSD Endurance
80 TB
Features
NVM Express (NVMe)
Type
No optical drive
Monitor Type
LED
Touchscreen
Yes (10-point multi-touch)
Diagonal Size
15.6"
Native Resolution
1920 x 1080 (Full HD)
V-Sync Rate at Max Res.
60 Hz
Widescreen Display
Yes
Image Aspect Ratio
16:9
Horizontal Viewing Angle
+85 / -85
Vertical Viewing Angle
+85 / -85
Response Time
25 ms
Image Brightness
350 cd/m²
Image Contrast Ratio
1000:1
Monitor Features
Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology, 16.2 million colors
Graphics Processor
Intel Iris Xe Graphics
Sound Output Mode
Stereo
Speakers Included
2 x right / left channel
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2
Interfaces
1 x headphones/microphone ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 ¦ 4 x USB 2.0 - micro-USB ¦ 1 x PoweredUSB (24 V) ¦ 2 x PoweredUSB (12 V) ¦ 1 x serial - RJ-50 (powered) ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging)
Included Accessories
Stand, mount screw, cable tie
Cables Included
RJ-50 to DB-9 cable
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
VESA Mounting Interface
75 x 75 mm, VESA
Compliant Standards
UL, TUV, VCCI, cUL, CB, MIC, ANATEL, RCM, CoC, Mexico NOM, UKCA, Argentina S-Mark
Device Type
Power adapter
Voltage Required
AC 100/240 V (50/60 Hz)
Power Provided
180 Watt
Power Consumption Operational
39 Watt
OS Provided
Windows 10 IoT Enterprise 2021 LTSC
ENERGY STAR Certified
Yes
ENERGY STAR Version
8.0
Service & Support
Limited warranty - 3 years
Width
38.41 cm
Depth
19.75 cm
Height
33.84 cm
Weight
6.4 kg
Shipping Width
49.7 cm
Shipping Depth
34.5 cm
Shipping Height
48.7 cm
Shipping Weight
8.9 kg
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
