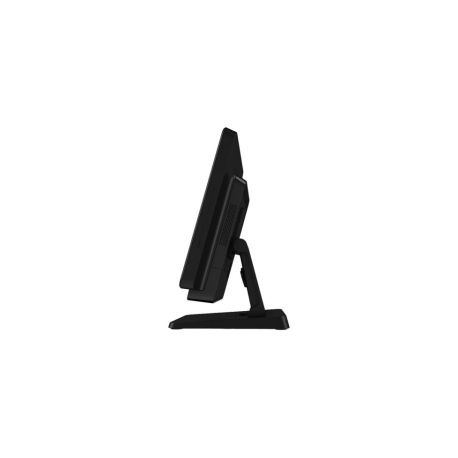

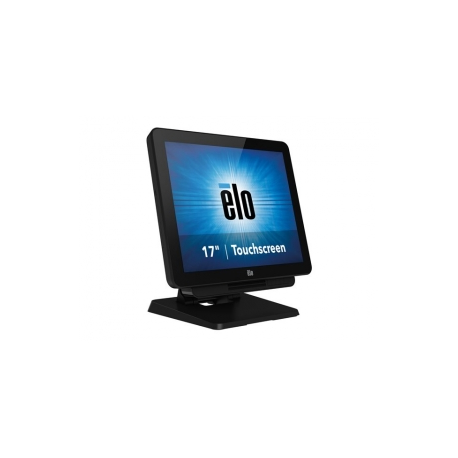

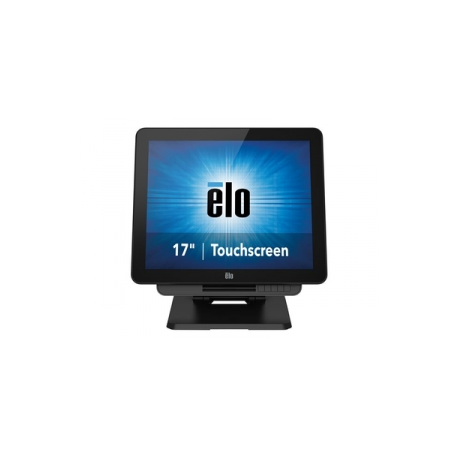

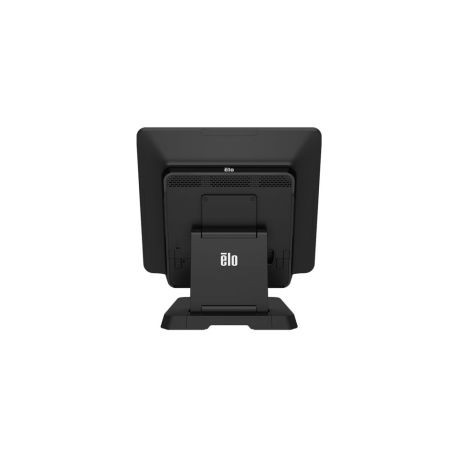

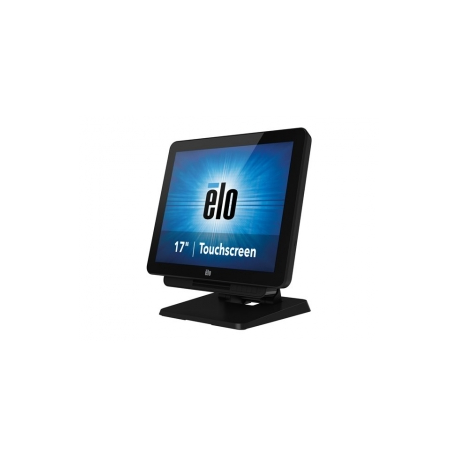

Elo Touchcomputer X2-17 - All-in-one - 1 x Celeron J1900 / 2 GHz - RAM 4 GB - SSD 128 GB - HD Graphics - GigE - WLAN: 802.11b / g / n, Bluetooth 4.0 - Win 7 Pro - monitor: LED 17" 1280 x 1024 (SXGA) touchscreen
images are for illustrative purposes only
New
Article: 1334883 Intrastat: 84714900 SKU: E135017
Pricing and stock details are available to registered users only.
Elo Touchcomputer X2-17 - All-in-one - 1 x Celeron J1900 / 2 GHz - RAM 4 GB - SSD 128 GB - HD Graphics - GigE - WLAN: 802.11b/g/n, Bluetooth 4.0 - Win 7 Pro - monitor: LED 17" 1280 x 1024 (SXGA) touchscreen
| Type | Kiosk |
| Product Form Factor | All-in-one |
| Built-in Devices | Stereo speakers |
| Colour | Black |
| Localisation | Worldwide |
| CPU | Intel Celeron J1900 / 2 GHz |
| Max Turbo Speed | 2.41 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | L2 Cache - 2 MB |
| Cache Per Processor | 2 MB |
| Installed Size | 4 GB / 8 GB (max) |
| Technology | DDR3L SDRAM |
| Effective Memory Speed | 1600 MHz |
| Rated Memory Speed | 1600 MHz |
| Memory Specification Compliance | PC3-12800 |
| RAM Supported | PC3-12800 - 8 GB |
| Type | SSD |
| Capacity | 1 x 128 GB |
| Interface Type | SATA 3Gb/s |
| Type | SATA |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 17" |
| Native Resolution | 1280 x 1024 (SXGA) |
| Image Aspect Ratio | 5:4 |
| Horizontal Viewing Angle | +85 / -85 |
| Vertical Viewing Angle | +80 / -80 |
| Response Time | 5 ms |
| Image Brightness | 212.5 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | Projected Capacitive Touch (P-CAP) technology, IntelliTouch Pro |
| Graphics Processor | Intel HD Graphics |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0 |
| Bays | 1 (total) / 0 (free) x internal 2.5" |
| Slots | 2 (total) / 1 (free) x memory |
| Interfaces | 2 x USB 3.0 (2 rear) ¦ 1 x microphone - mini-jack ¦ 1 x headphones - mini-jack ¦ 1 x serial - RJ-45 ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x VGA output ¦ 1 x serial ¦ 3 x USB - micro-USB ¦ 4 x USB 2.0 (2 front, 2 rear) |
| Included Accessories | Cable cover |
| Cables Included | Serial adapter |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Mounting Interface | 100 x 100 mm |
| Compliant Standards | UL, TUV, VCCI, C-Tick, cUL, CB, CCC, IC, FCC, SRRC, RCM, CoC |
| Device Type | Power adapter |
| Nominal Voltage | AC 100 - 240 V (50 - 60 Hz) |
| Power Provided | 90 Watt |
| Power Consumption Operational | 38 Watt |
| OS Provided | Microsoft Windows 7 Professional |
| ENERGY STAR Qualified | Yes |
| Service & Support | Limited warranty - 3 years |
| Width | 39.729 cm |
| Depth | 25.17 cm |
| Height | 39.107 cm |
| Weight | 7.24 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
