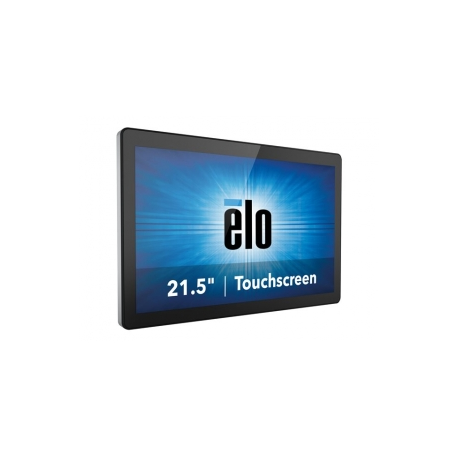

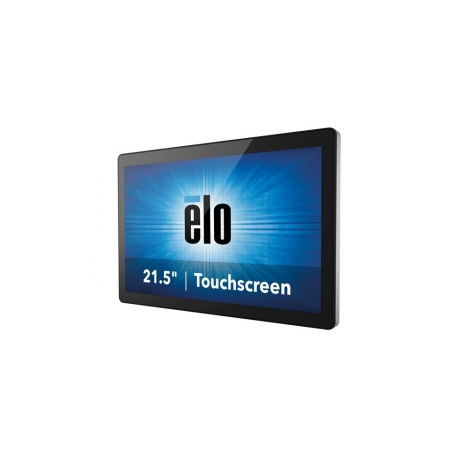

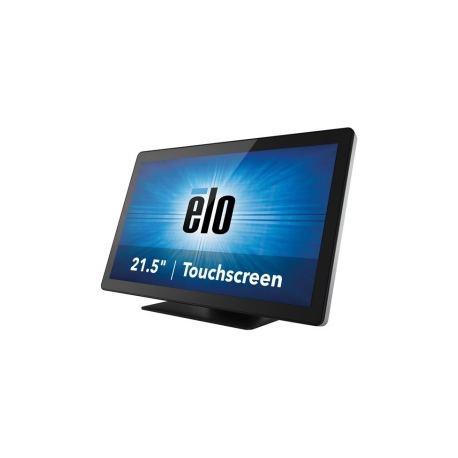

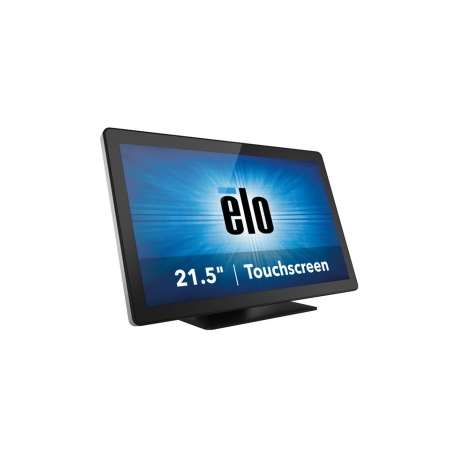

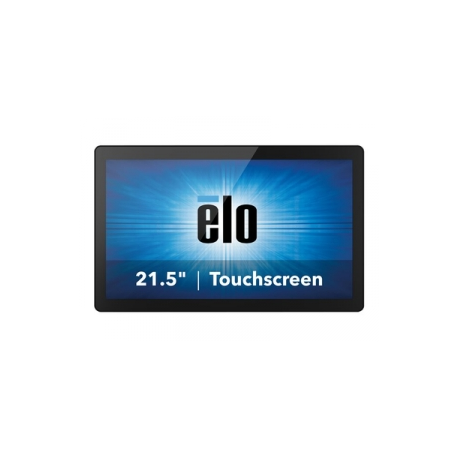

Elo I-Series ESY22i2 - Personal computer - all-in-one - 1 x Celeron N3160 / 1.6 GHz - RAM 2 GB - SSD 1 x 128 GB - no optical drive - no optical drive - HD Graphics 400 - 10Mb LAN, 100Mb LAN, GigE, 802.11b, 802.11a, 802.11g, 802.11n, Bluetooth 4.0, 802.11ac - WLAN: Bluetooth 4.0, 802.11a / b / g / n / ac - Windows 10 - monitor: LED 21.5" 1920 x 1080 (Full HD) touchscreen
images are for illustrative purposes only
New
Article: 1330332 Intrastat: 84714900 SKU: E970879
Pricing and stock details are available to registered users only.
The Elo I-Series for Windows AiO interactive signage delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful Windows-based platform with a sleek, ultra-thin, yet ruggedized form factor down to 1.8 inches thin. The I-Series AiO provides an integrated platform for immersive interactive applications in all commercial markets including retail, hospitality, gaming, corporate and medical.
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Colour | Black |
| Localisation | Asia, EMEA, Americas |
| CPU | Intel Celeron N3160 / 1.6 GHz |
| Max Turbo Speed | 2.24 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Burst Technology |
| Installed Size | L2 Cache - 2 MB |
| Cache Per Processor | 2 MB |
| Installed Size | 2 GB / 8 GB (max) |
| Technology | DDR3L SDRAM - non-ECC |
| Effective Memory Speed | 1600 MHz |
| Rated Memory Speed | 1600 MHz |
| Memory Specification Compliance | PC3-12800 |
| Form Factor | SO-DIMM 204-pin |
| Configuration Features | 1 x 2 GB |
| Type | SSD |
| Capacity | 1 x 128 GB |
| Interface Type | SATA 6Gb/s SATA |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 21.5" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | +89 / -89 |
| Vertical Viewing Angle | +89 / -89 |
| Response Time | 30 ms |
| Image Brightness | 225 cd/m² |
| Image Contrast Ratio | 3000:1 |
| Monitor Features | Projected Capacitive Touch (P-CAP) technology |
| Graphics Processor | Intel HD Graphics 400 |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac |
| Bays | 1 (total) / 0 (free) x internal 2.5" x 1/8H |
| Slots | 2 (total) / 1 (free) x SO-DIMM 204-pin |
| Interfaces | 2 x USB 3.0 ¦ 3 x USB 2.0 - micro-USB ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x Micro-HDMI ¦ 1 x audio line-out - mini-jack |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Compliant Standards | UL, TUV, VCCI, cUL, CB, FCC, RoHS |
| Device Type | Power adapter |
| Nominal Voltage | AC 100 - 240 V (50 - 60 Hz) |
| Power Provided | 90 Watt |
| OS Provided | Windows 10 |
| Service & Support | 3 years warranty |
| Service & Support | Limited warranty - 3 years |
| Width | 52.4 cm |
| Depth | 4.5 cm |
| Height | 32.4 cm |
| Weight | 5.74 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
