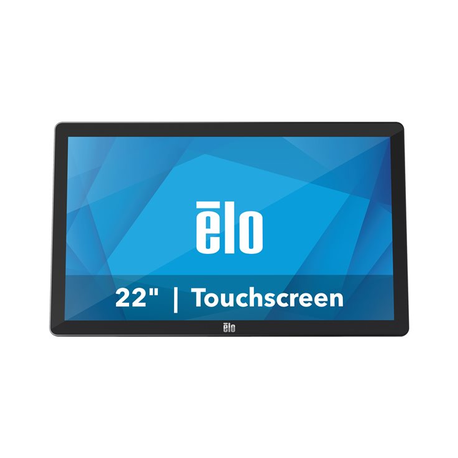

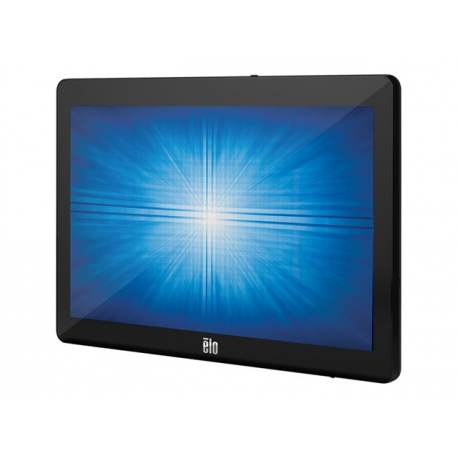

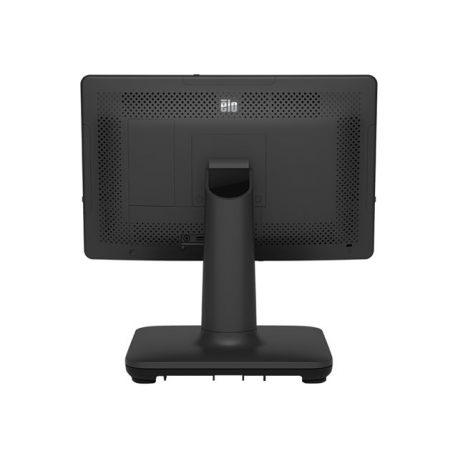

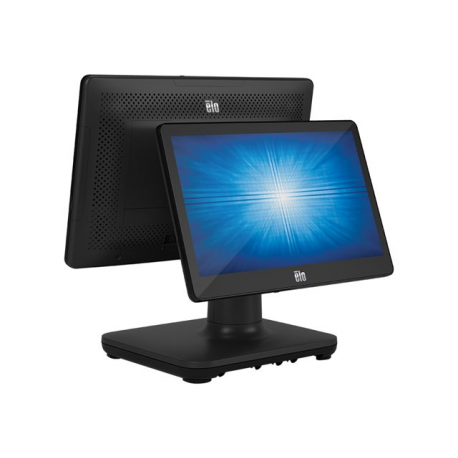

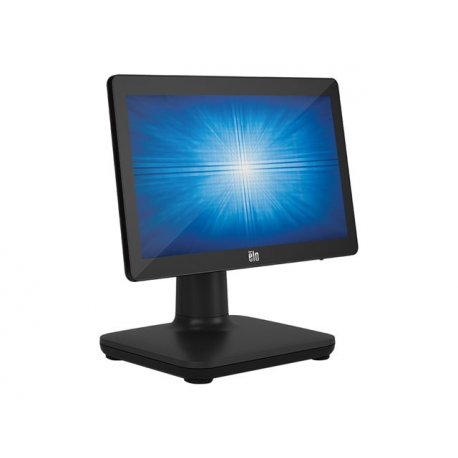

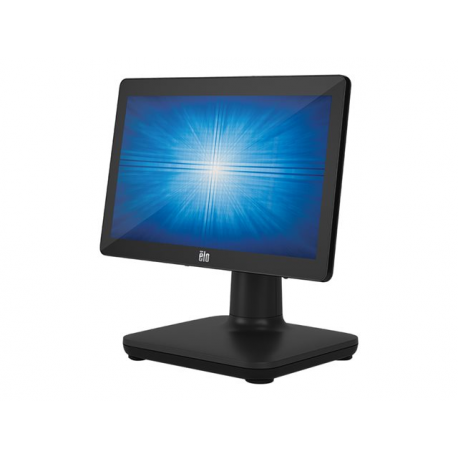

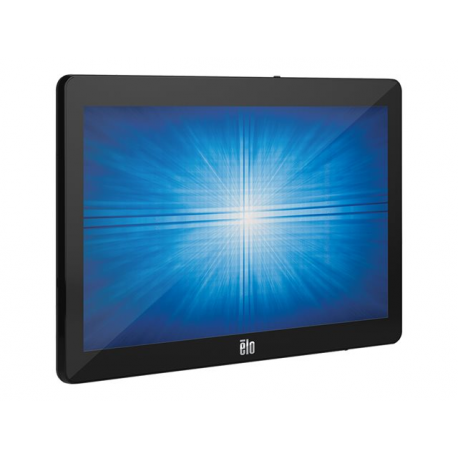

EloPOS System i5 - With Wall Mount & I / O Hub - all-in-one - 1 x Core i5 8500T / 2.1 GHz - vPro - RAM 16 GB - SSD 256 GB - NVMe - UHD Graphics 630 - GigE - WLAN: 802.11a / b / g / n / ac, Bluetooth 5.0 - Win 10 IoT Enterprise LTSB 64-bit - monitor: LED 21.5" 1920 x 1080 (Full HD) touchscreen - black
images are for illustrative purposes only
New
Article: 1686773 Intrastat: 84714900 SKU: E938113
Pricing and stock details are available to registered users only.
| Platform Technology | Intel vPro Platform |
| Type | Point of sale terminal |
| Product Form Factor | All-in-one |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| CPU | Intel Core i5 (8th Gen) 8500T |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2, Intel Smart Cache |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel Q370 |
| Installed Size | 9 MB |
| Cache Per Processor | 9 MB |
| Installed Size | 16 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Effective Memory Speed | 2666 MHz |
| Rated Memory Speed | 2666 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) |
| Features | Unbuffered |
| Type | SSD - M.2 |
| Capacity | 1 x 256 GB |
| Interface Type | PCI Express |
| Features | NVM Express (NVMe) |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Type | No optical drive |
| Monitor Type | LED |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 21.5" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Response Time | 14 ms |
| Image Brightness | 212.5 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | Anti-glare, Zero-Bezel Design, TouchPro Pro Projected Capacitive (PCAP) technology |
| Graphics Processor | Intel UHD Graphics 630 |
| Sound Output Mode | Stereo |
| Speakers Included | 2 x right / left channel |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Features | Intel Active Management Technology (AMT) 11 |
| Interfaces | 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging) |
| Included Accessories | Cable cover locking screw |
| Cables Included | RJ-45 to DB-9 cable |
| Compliant Standards | UL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM |
| Device Type | Power adapter |
| Installed Qty | 1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 180 Watt |
| Power Consumption Operational | 81 Watt |
| OS Provided | Windows 10 IoT Enterprise LTSB 64-bit Edition |
| Service & Support | Limited warranty - 3 years |
| Width | 41.64 cm |
| Depth | 8.47 cm |
| Height | 52.59 cm |
| Weight | 6 kg |
| Shipping Width | 64.4 cm |
| Shipping Depth | 22.6 cm |
| Shipping Height | 45 cm |
| Shipping Weight | 8.4 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
