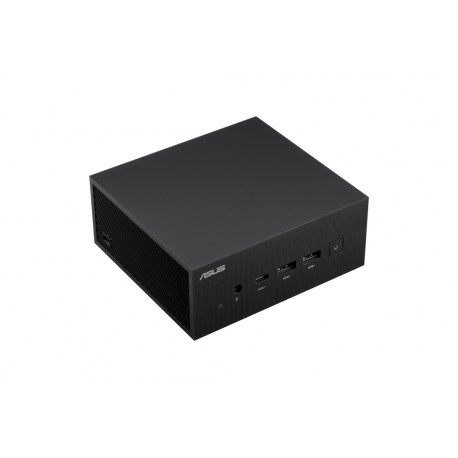

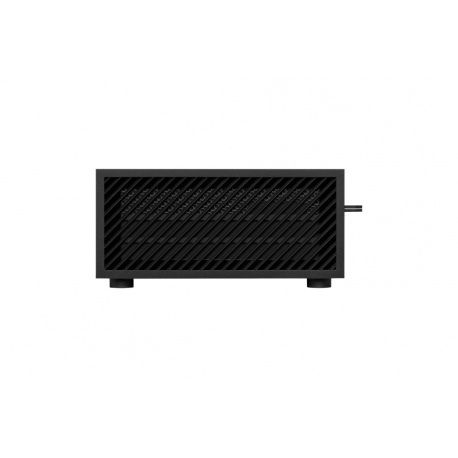

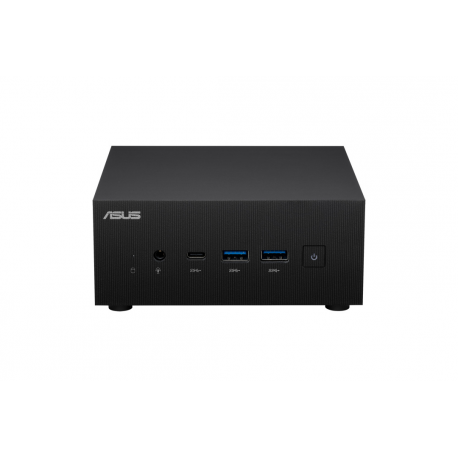

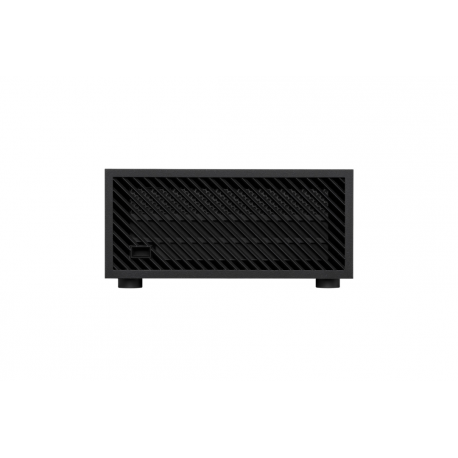

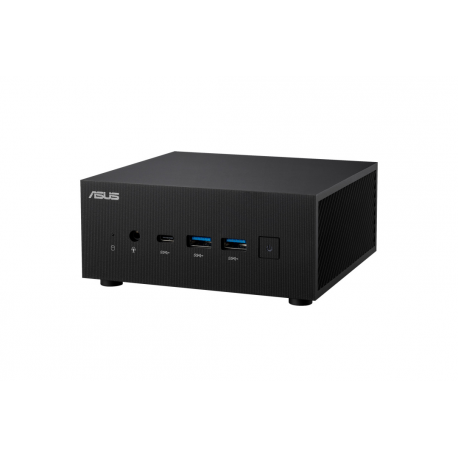

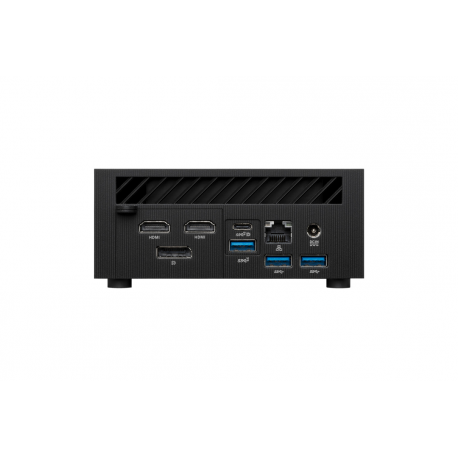

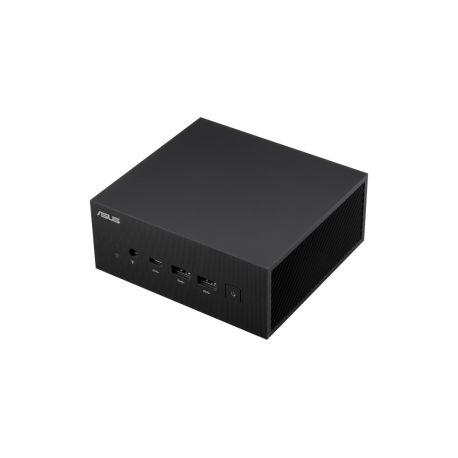

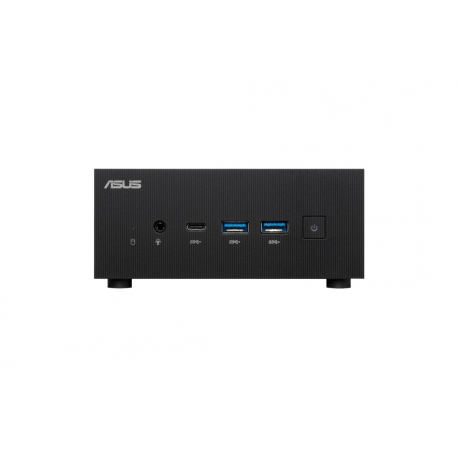

ASUS Mini PC PN52 BBR758HD - Barebone - mini PC - 1 x Ryzen 7 5800H / 3.2 GHz - RAM 0 GB - Radeon Graphics - GigE, 2.5 GigE, Bluetooth 5.2, 802.11ax (Wi-Fi 6E) - WLAN: Bluetooth 5.2, 802.11a / b / g / n / ac / ax (Wi-Fi 6E) - eco black
images are for illustrative purposes only
New
Article: 3143582 Intrastat: 84718000 SKU: 90MR00R2-M000E0
Pricing and stock details are available to registered users only.
| Built-in processor | Y |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor model | 5800H |
| Processor frequency | 3.2 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.4 GHz |
| Processor cache | 16 MB |
| L2 cache | 4 MB |
| L3 cache | 16 MB |
| Thermal Design Power (TDP) | 45 W |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express |
| Number of storage drives supported | 3 |
| On-board graphics card | Y |
| Graphics card family | AMD |
| On-board graphics card model | AMD Radeon Graphics |
| Built-in speaker(s) | N |
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| LAN controller | Realtek RTL8125B-CG |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Y |
| DC-in jack | Y |
| Product colour | Black |
| Product type | Mini PC barebone |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
| Trusted Platform Module (TPM) | Y |
| Operating system installed | N |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Width | 120 mm |
| Depth | 130 mm |
| Height | 58 mm |
| Weight | 1 kg |
