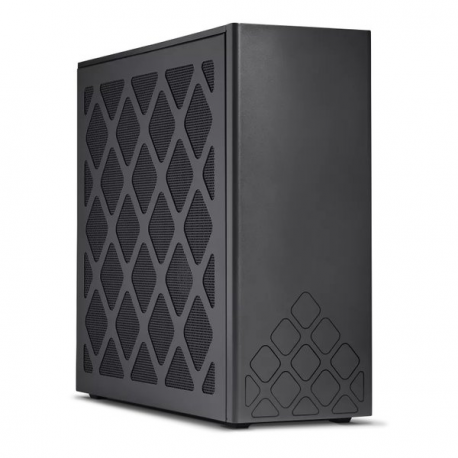

ASUS NUC 13 Extreme NUC13RNGi7 - Barebone - tower - Intel Z690 - 1 x Core i7 13700K / 3.4 GHz - RAM 0 GB - UHD Graphics 770 - Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 WLAN: - 802.11a / b / g / n / ac / ax (Wi-Fi 6E), Bluetooth 5.3 - black

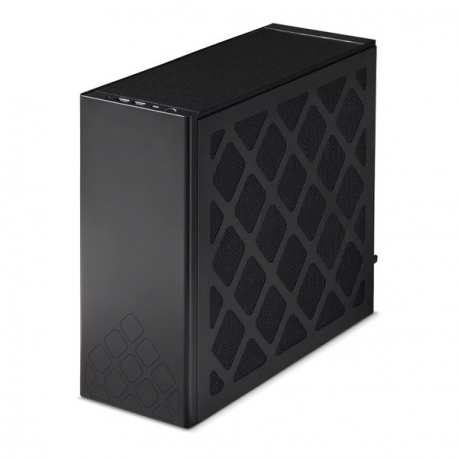

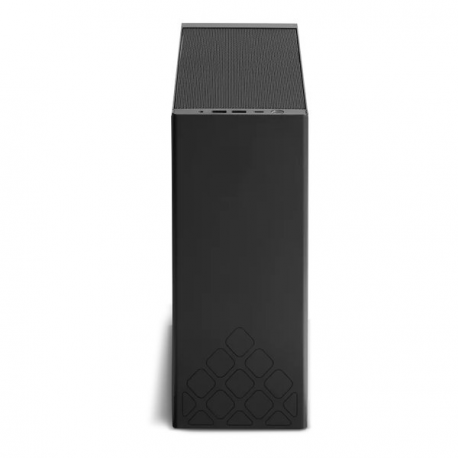

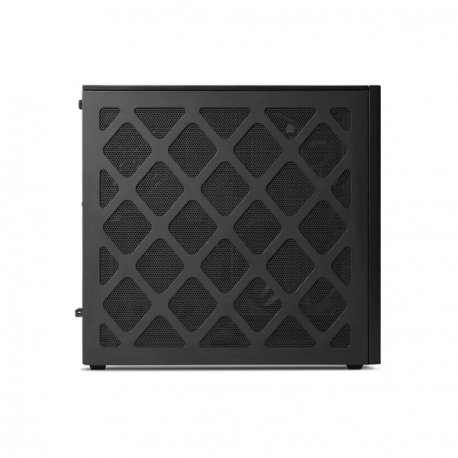

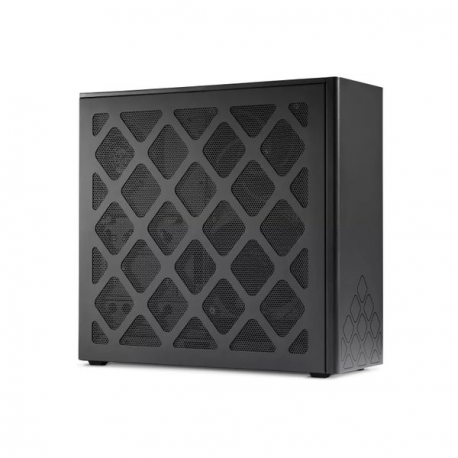

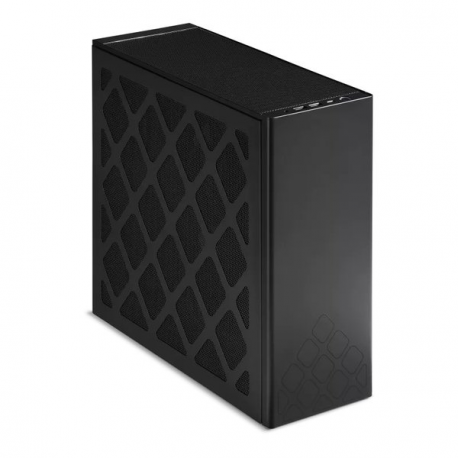

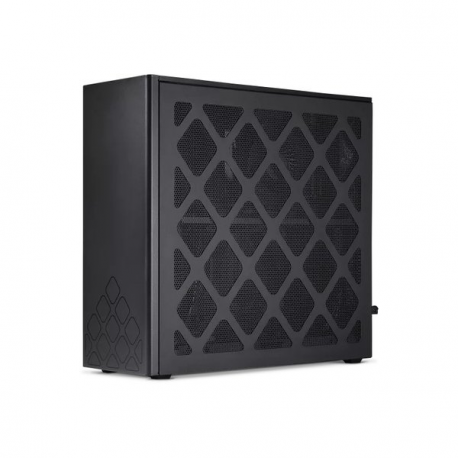

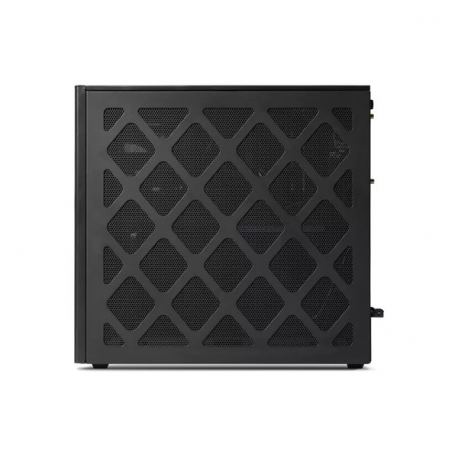

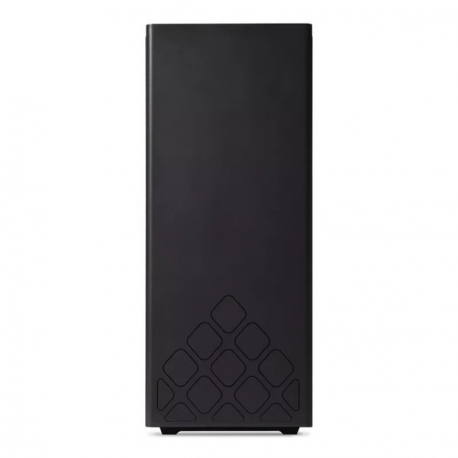

images are for illustrative purposes only
New
Article: 3312260 Intrastat: 84718000 SKU: 90AB3RNG-MR8120
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Tower |
| Built-in Devices | Air cooling solution |
| Gaming | Yes |
| Colour | Black |
| CPU | Intel Core i7 (13th Gen) 13700K |
| Clock Speed | 3.4 GHz (P-core) / 2.5 GHz (E-core) |
| Max Turbo Speed | 5.4 GHz (P-core) / 4.2 GHz (E-core) |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Chipset Type | Intel Z690 |
| Motherboard Name | Intel NUC 13 Compute Element NUC13SBBi9 |
| Installed Size | 30 MB |
| Cache Per Processor | 30 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 0 (empty) |
| Type | No HDD |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 770 |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Ports | 1 x 10 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Ethernet Controller | Intel I226-V, Marvell AQC113 |
| Wireless LAN Supported | Yes |
| Wireless NIC | Killer Wi-Fi 6E AX1690i |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Bays | 1 (total) / 1 (free) x internal 2.5" / 3.5" shared |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 (for GPU cards) ¦ 3 (total) / 0 (free) x M.2 Card (PCIe and SATA mode) |
| Interfaces | 1 x headphones/microphone (1 in front) ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 6 x USB 3.2 Gen 2 (6 rear) ¦ 1 x USB 3.2 Gen 2x2 (1 front) ¦ 2 x Thunderbolt 4/DisplayPort/USB-C (2 rear) ¦ 1 x audio line-out - mini-jack (1 rear) ¦ 1 x audio line-in - mini-jack (1 rear) ¦ 1 x microphone - mini-jack (1 rear) ¦ 1 x LAN (10Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x HDMI (1 rear) ¦ 2 x aerial (2 rear) |
| Device Type | Power supply |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| OS Provided | No operating system |
| Width | 12.9 cm |
| Depth | 33.7 cm |
| Height | 31.8 cm |
