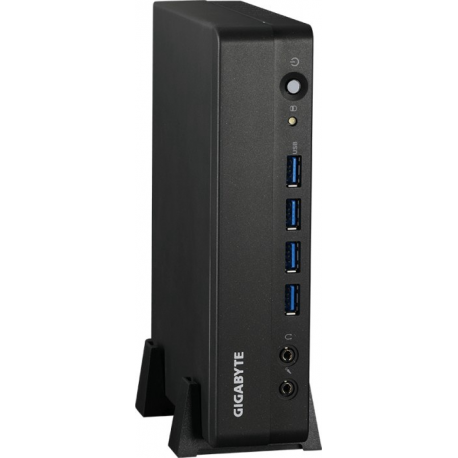

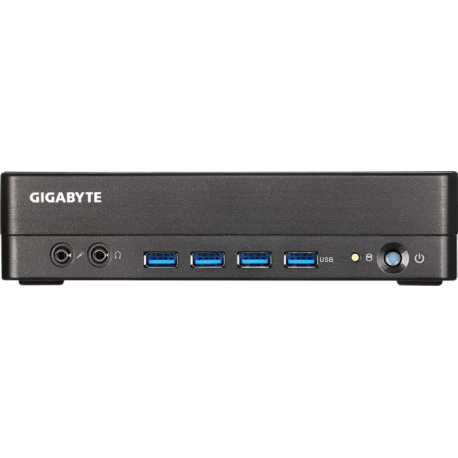

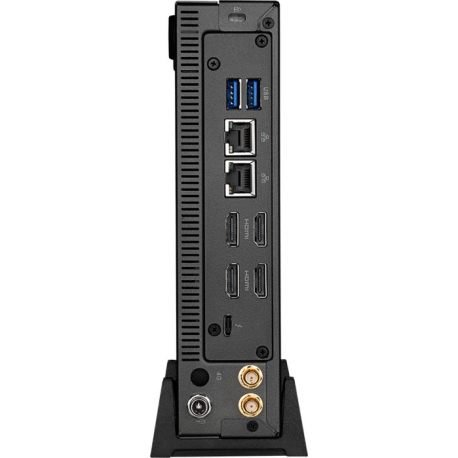

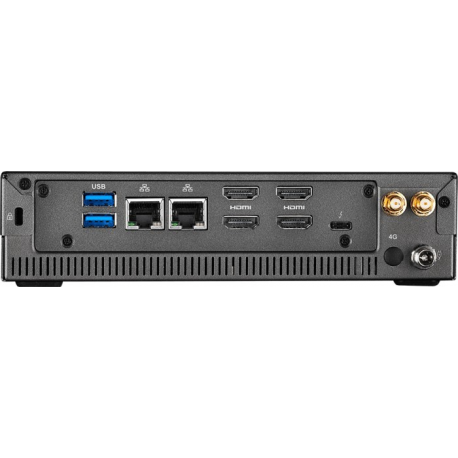

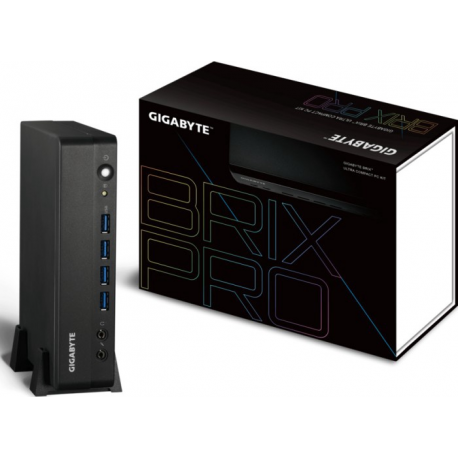

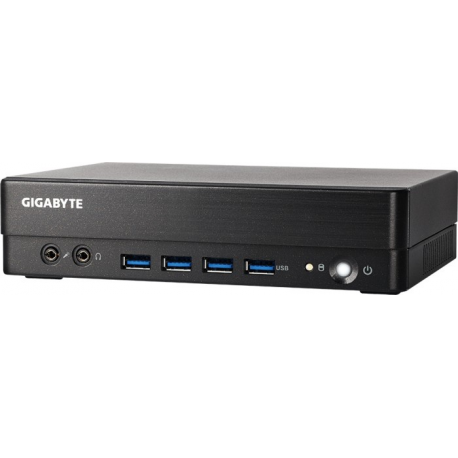

Gigabyte BRIX Pro GB-BSi7-1165G7 (rev. 1.0) - Barebone - Ultra Compact PC Kit - 1 x Core i5 1135G7 / 2.4 GHz - RAM 0 GB - Iris Xe Graphics - GigE, 2.5 GigE, Bluetooth 5.2 - WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.2
images are for illustrative purposes only
New
Article: 1864574 Intrastat: 84718000 SKU: GB-BSI5-1135G7
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Ultra Compact PC Kit |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| CPU | Intel Core i5 (11th Gen) 1135G7 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 4.2 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | 8 MB |
| Cache Per Processor | 8 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Ethernet Controller | Intel I219-V / I225-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 201 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 |
| Slots | 2 (total) / 2 (free) x M.2 Card |
| Interfaces | 4 x USB 3.2 Gen 1 (4 in front) 4 x HDMI 1 x LAN (2.5Gigabit Ethernet) 1 x LAN (Gigabit Ethernet) 2 x USB 3.2 Gen 2 1 x Thunderbolt 4/USB4 1 x headphones - mini-jack (1 in front) 1 x microphone - mini-jack (1 in front) |
| Included Accessories | Vertical stand, VESA wallmount adapter |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| OS Provided | No operating system |
| Width | 19.62 cm |
| Depth | 14 cm |
| Height | 4.44 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
