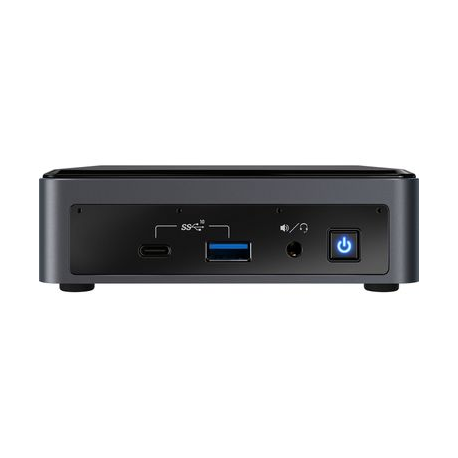

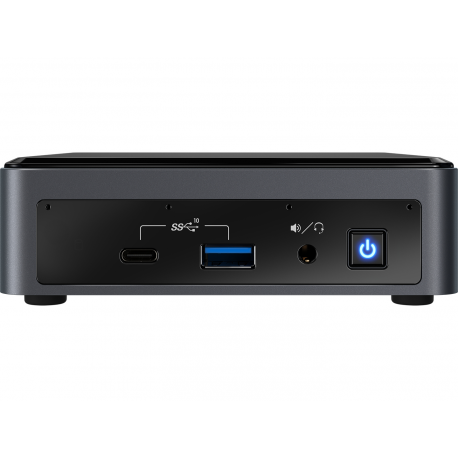

Intel Next Unit of Computing 10 Performance kit - NUC10i5FNKN - Barebone - mini PC - 1 x Core i5 10210U / 1.6 GHz - RAM 0 GB - UHD Graphics - GigE - WLAN: Bluetooth 5.0, 802.11a/b/g/n/ac/ax

  • INTEL NUC Barebone BXNUC10I5FNKN2 Core i5-10210U 2x DDR4 SO-Dimm max. 64GB 1x M.2 22x42/80 EU Cord
  • INTEL NUC Barebone BXNUC10I5FNKN2 Core i5-10210U 2x DDR4 SO-Dimm max. 64GB 1x M.2 22x42/80 EU Cord
  • INTEL NUC Barebone BXNUC10I5FNKN2 Core i5-10210U 2x DDR4 SO-Dimm max. 64GB 1x M.2 22x42/80 EU Cord
images are for illustrative purposes only

New

Article: 1805937 Intrastat: 84718000 SKU: BXNUC10I5FNKN2
Pricing and stock details are available to registered users only.
 Add to compare
TypePC barebone
Product Form FactorMini PC
SensorsInfrared (IR) sensor
LocalisationRegion: Europe
CPUIntel Core i5 (10th Gen) 10210U / 1.6 GHz
Max Turbo Speed4.2 GHz
Number of CoresQuad-Core
CPU Qty1
Max CPU Qty1
CPU UpgradabilityNot upgradable
Processor Main FeaturesIntel Virtualization Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT)
Installed Size6 MB
Cache Per Processor6 MB
Installed Size0 GB / 64 GB (max)
TechnologyDDR4 SDRAM
Form FactorSO-DIMM 260-pin
Slots2 (Total) / 2 (empty)
FeaturesDual channel memory architecture
TypeNo HDD
Type1 x SATA
Controller Interface TypeSATA 6Gb/s / PCIe 3.0 x4 (NVMe)
RAID LevelRAID 0, RAID 1
TypeNo optical drive
TypeCard reader
Supported Flash Memory CardsSDXC UHS-II Memory Card
Monitor TypeNone.
Graphics ProcessorIntel UHD Graphics
Video InterfacesHDMI, USB-C
Max Monitors Supported3
Sound Output Mode7.1 channel surround
Compliant StandardsHigh Definition Audio
Ethernet ControllerIntel I219-V
Wireless LAN SupportedYes
Wireless NICIntel Wireless-AX MAC
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Slots1 (total) / 1 (free) x M.2 Card - 2242/2280 (Key M)
Interfaces3 x USB 3.1 Gen 2 - Type A (1 front, 2 rear) 2 x Thunderbolt 3/USB-C 3.1 Gen 2 (1 front, 1 rear) (one of them is fast-charging) 1 x HDMI 1 x LAN (Gigabit Ethernet) - RJ-45
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
Security Slot TypeKensington security slot
Compliant StandardsCISPR 24, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, REACH, EN 62311, EN 300.440, China RoHS, EN 300 328, EN 301 489-1, CISPR32/EN55032, KN32, KN35, AS/NZS 2772.2, EN 301 893, IEC/EN/UL 60950-1, EN 301 489-3, EU RoHS, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32
Device TypePower adapter
Voltage RequiredDC 12 - 19 V
Power Provided120 Watt
Service & SupportLimited warranty - 3 years
Width11.7 cm
Depth11.2 cm
Height3.8 cm
Min Operating Temperature0 °C
Max Operating Temperature50 °C
