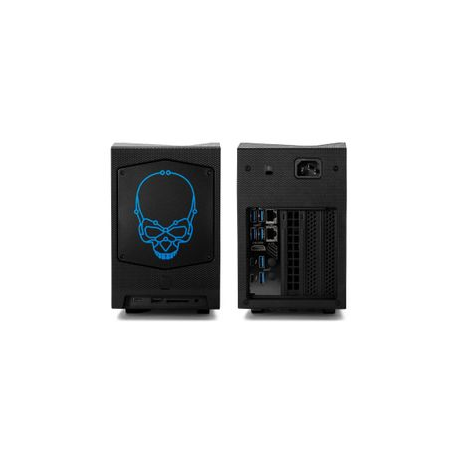

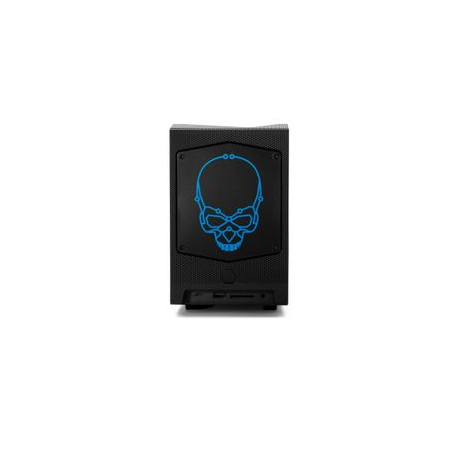

Intel Next Unit of Computing 12 Extreme Kit - NUC12DCMi9 - Barebone - mini PC - Intel Z690 - 1 x Core i9 12900 - RAM 0 GB - UHD Graphics 770 - 10 GigE, 2.5 GigE, Bluetooth 5.2 - WLAN: 802.11a / b / g / n / ac / ax, Bluetooth 5.2
images are for illustrative purposes only
New
Article: 1894000 Intrastat: 84718000 SKU: RNUC12DCMI90000
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Mini PC |
| CPU | Intel Core i9 (12th Gen) 12900 |
| Max Turbo Speed | 5.1 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Platform Trust Technology (PTT) |
| Chipset Type | Intel Z690 |
| Installed Size | 30 MB |
| Cache Per Processor | 30 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | No HDD |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| RAID Level | RAID 0, RAID 1 |
| Type | No optical drive |
| Type | Card reader |
| Supported Flash Memory Cards | SDXC UHS-II Memory Card |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 770 |
| Video Interfaces | HDMI, USB-C |
| Max Monitors Supported | 3 |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Ports | 1 x 10 Gigabit Ethernet, 1 x 2.5 Gigabit Ethernet |
| Ethernet Controller | Marvell AQC113, Intel i225-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6E AX 211 |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.2 |
| Slots | 2 (total) / 2 (free) x M.2 Card - 2242/2280 (PCIe 4.0 x4 and SATA mode (via PCH)) ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2280 (PCIe 4.0 x4 mode (via CPU)) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - double-width (30.5 cm maximum graphics card length) |
| Interfaces | 6 x USB 3.2 Gen 2 (6 rear) ¦ 2 x Thunderbolt 4/USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 (2 in front) ¦ 1 x LAN (10Gigabit Ethernet) - RJ-45 ¦ 1 x LAN (2.5Gigabit Ethernet) - RJ-45 ¦ 1 x HDMI ¦ 1 x headphones/microphone - stereo mini-jack |
| Device Type | Power supply |
| Installed Qty | 1 |
| Power Provided | 650 Watt |
| 80 PLUS Certification | 80 PLUS Gold |
| Service & Support | Limited warranty - 3 years |
| Width | 12 cm |
| Depth | 35.7 cm |
| Height | 18.9 cm |
