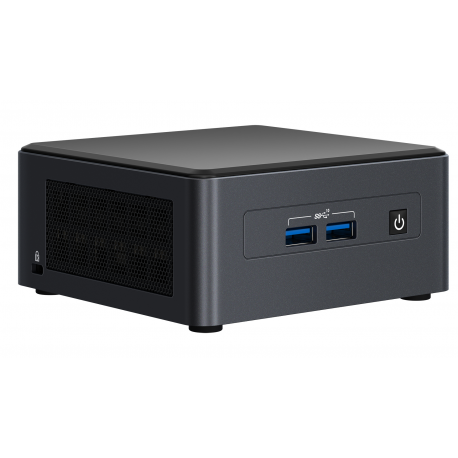

Intel Next Unit of Computing Kit 11 Pro Kit - NUC11TNHi7 - Barebone - mini PC - 1 x Core i7 1165G7 / 2.8 GHz - RAM 0 GB - Iris Xe Graphics - GigE, 2.5 GigE - WLAN: 802.11a / b / g / n / ac / ax, Bluetooth 5.1
images are for illustrative purposes only
New
Article: 1767842 Intrastat: 84718000 SKU: BNUC11TNHI70002
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localisation | Region: Europe |
| CPU | Intel Core i7 (11th Gen) 1165G7 / 2.8 GHz |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2, Intel 64 Technology, Intel AES New Instructions, Intel Virtualization Technology for Directed I/O, Intel Virtualization Technology with Extended Page Tables |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Rated Memory Speed | 3200 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Type | No HDD |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 3.0 x4 (NVMe) |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 4 |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I225-LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 201 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.1 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1as, IEEE 802.11n, IEEE 802.11ac, IEEE 802.1BR, IEEE 802.1Qav, IEEE 802.3bz, IEEE 802.11ax, Bluetooth 5.1, IEEE 802.1Qbv, IEEE 802.1Qbu |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2242 (Key B) ¦ 1 (total) / 0 (free) x M.2 Card - 2230 (Key E) |
| Interfaces | 2 x Thunderbolt/USB 4 ¦ 2 x HDMI ¦ 2 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 2 - Type A (2 front, 1 rear) ¦ 1 x USB 2.0 - Type A (1 rear) |
| Compliant Standards | BSMI, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, RoHS, FCC Part 15 E, BSMI CNS 13438, REACH, EN 300.440, EN 300 328, EN 301 489-1, KN32, KN35, EN 301 893, IEC/EN/UL 60950-1, EN 55032, EN 301 489-3, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, AS/NZS CISPR 32, VCCI 32 |
| Device Type | Power adapter |
| Nominal Voltage | DC 19 V |
| Service & Support | Limited warranty - 3 years |
| Width | 11.7 cm |
| Depth | 11.2 cm |
| Height | 5.4 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
