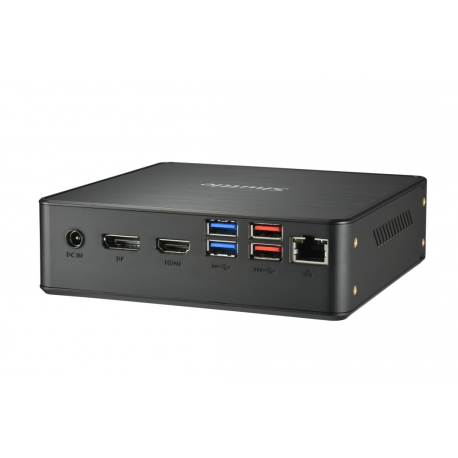

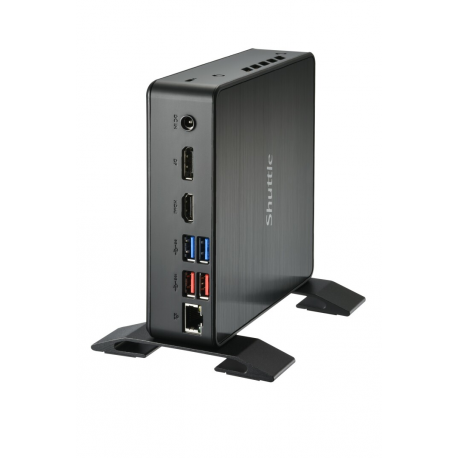

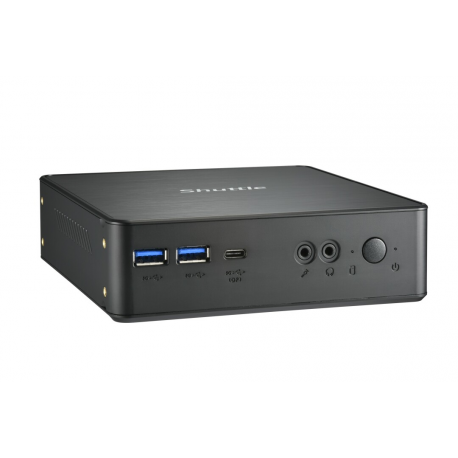

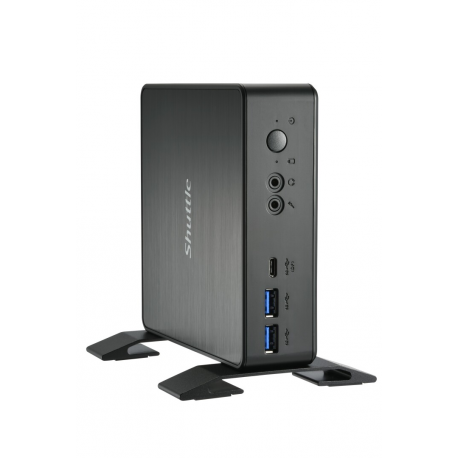

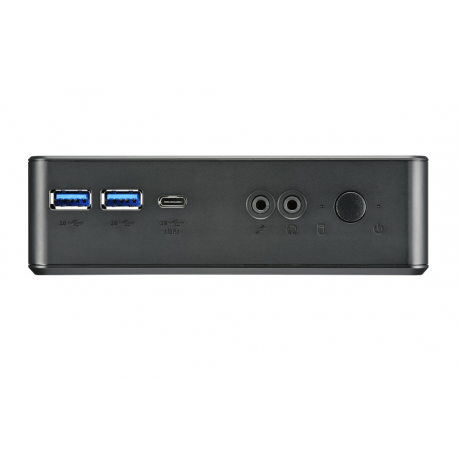

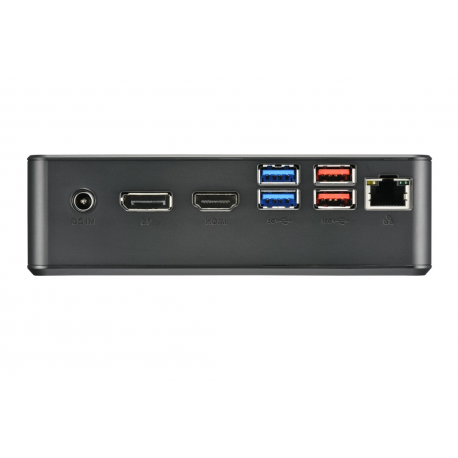

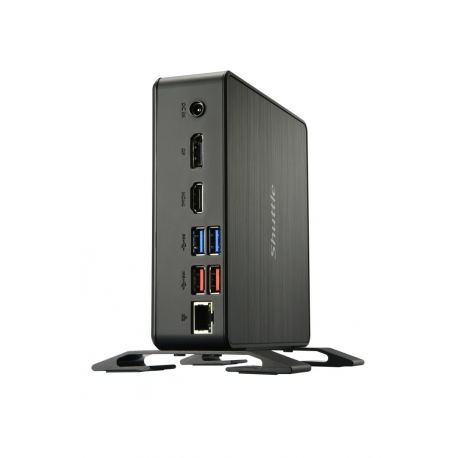

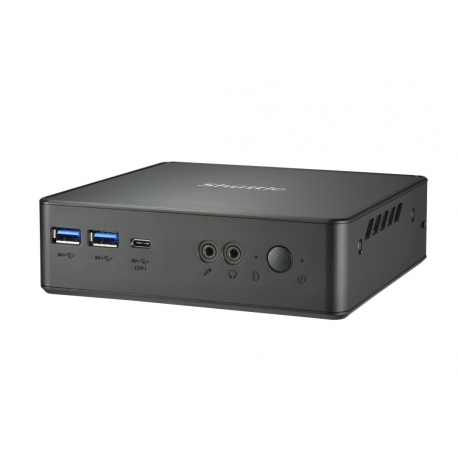

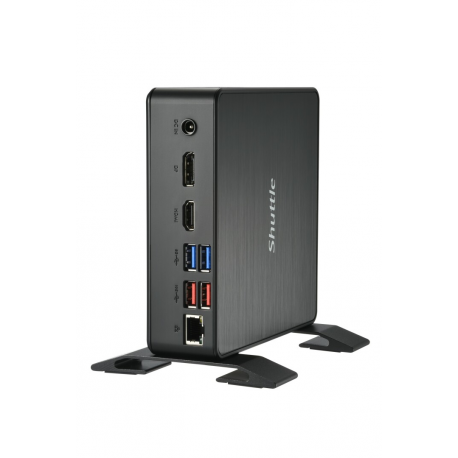

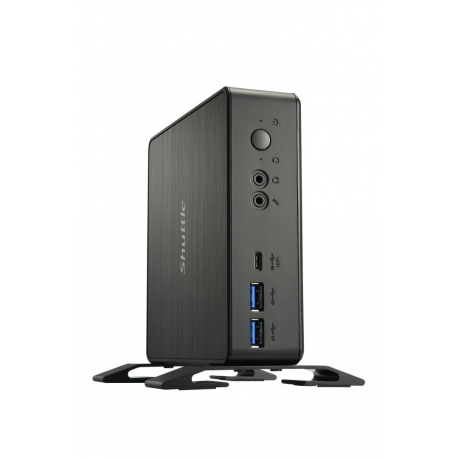

Shuttle XPC nano NC40U5 - Barebone - mini PC - 1 x Core i5 1235U / 1.3 GHz - RAM 0 GB - UHD Graphics 620 - 1GbE - black
images are for illustrative purposes only
New
Article: 3369243 Intrastat: 84718000 SKU: NC40U5
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| CPU | Intel Core i5 (12th Gen) 1235U |
| Clock Speed | 1.3 GHz |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | 10-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Smart Cache |
| Installed Size | L3 Cache - 12 MB |
| Cache Per Processor | 12 MB |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 620 |
| Video Interfaces | HDMI, DisplayPort |
| Compliant Standards | High Definition Audio |
| Ethernet Controller | Intel I219 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bays | 1 (total) / 1 (free) x internal 2.5" x 1/8H |
| Slots | 2 (total) / 2 (free) x M.2 Card - 2280 |
| Interfaces | 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.1 Gen 2 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort ¦ 1 x audio line-out/headphones ¦ USB 3.1 Gen 2 ¦ 1 x microphone |
| Included Accessories | Horizontal feet, VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 65 Watt |
| OS Provided | No operating system |
| Width | 14.2 cm |
| Depth | 14.2 cm |
| Height | 4.2 cm |
| Weight | 400 g |
| Shipping Weight | 1.2 kg |
