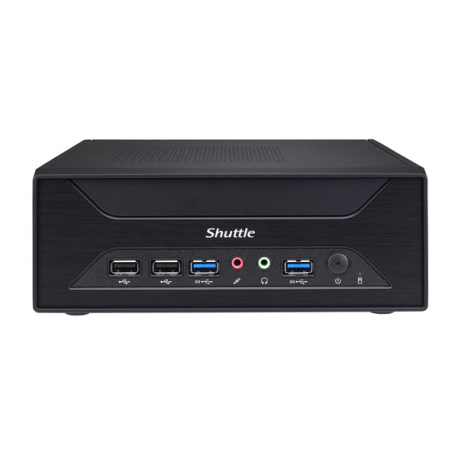

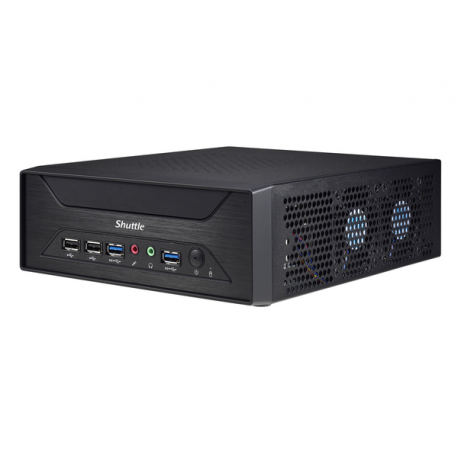

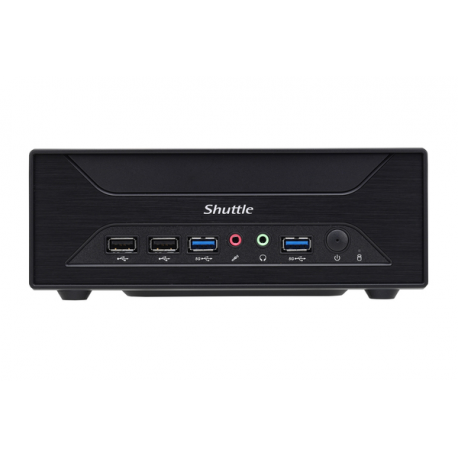

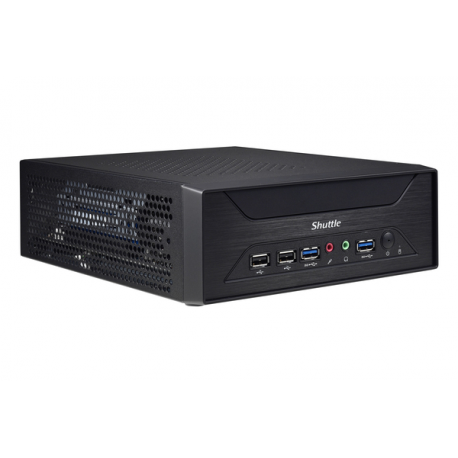

Shuttle XPC slim - Barebone - Slim-PC - LGA1200 Socket - Intel H510 - no CPU - RAM 0 GB - GigE
images are for illustrative purposes only
New
Article: 3150753 Intrastat: 84718000 SKU: XH510G
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1200 Socket |
| Chipset Type | Intel H510 |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | No graphics |
| Compliant Standards | High Definition Audio |
| Ethernet Controller | Intel I219 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe x1 ¦ 1 (total) / 1 (free) x M.2 Card - 2280 (Key M) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (Key A-E) |

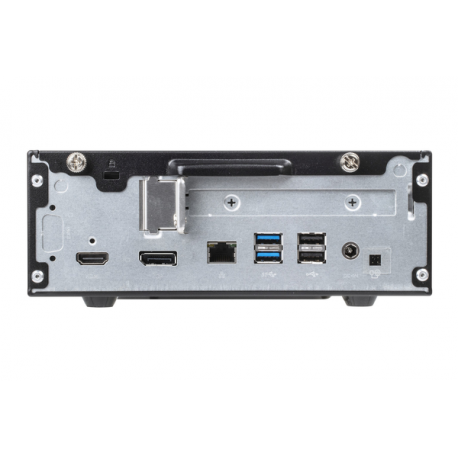

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 4 x USB 3.2 Gen 1 (2 front, 2 rear) ¦ 1 x microphone (1 front) ¦ 1 x headphones (1 front) ¦ 1 x LAN (Gigabit Ethernet) |
| Included Accessories | VESA mounting kit, screw set |
| Compliant Standards | DisplayPort 1.4 |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 180 Watt |
| OS Provided | No operating system |
| Software | Drivers & Utilities |
| Width | 20 cm |
| Depth | 25 cm |
| Height | 7.85 cm |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
