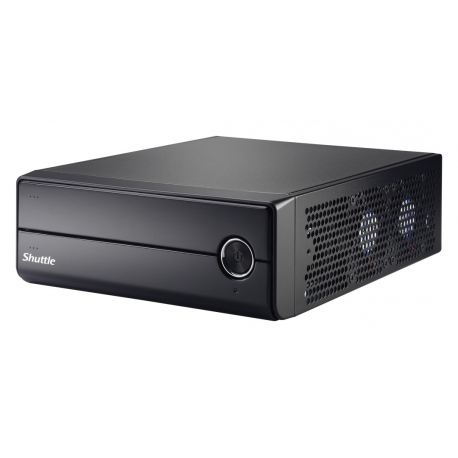

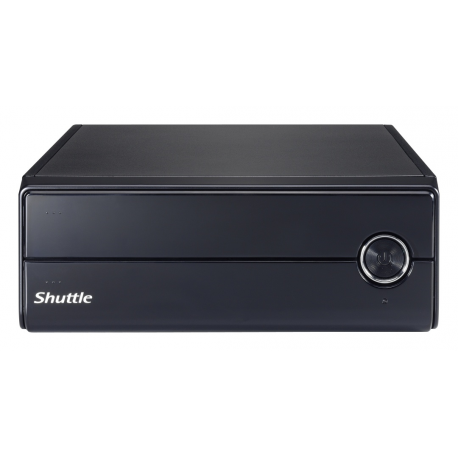

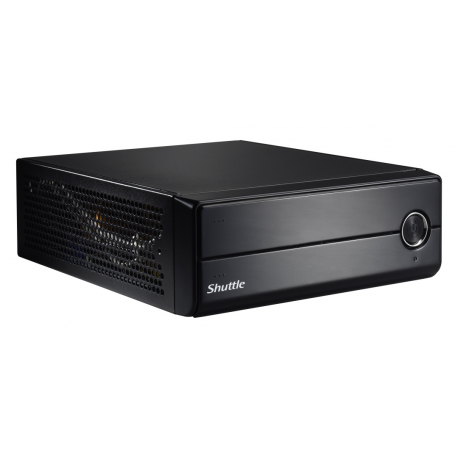

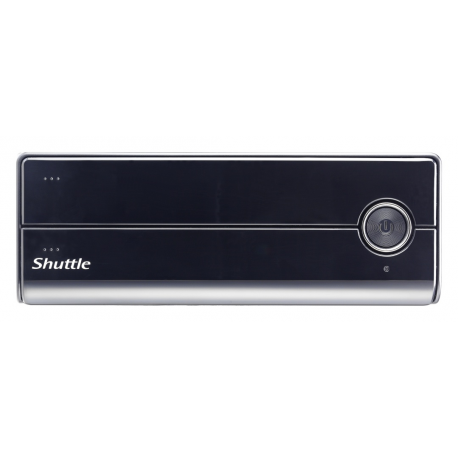

Shuttle XPC slim XH310RV - Barebone - Slim-PC - LGA1151 Socket - Intel H310 - no CPU - RAM 0 GB - GigE - black
images are for illustrative purposes only
New
Article: 3197454 Intrastat: 84718000 SKU: XH310RV
Pricing and stock details are available to registered users only.
| Type | PC barebone |
| Product Form Factor | Slim-PC |
| Embedded Security | Firmware Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel H310 |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 3 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | No graphics |
| Sound Output Mode | 5.1 channel surround |
| Compliant Standards | High Definition Audio |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I211 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support, Teaming support |
| Bays | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 2.5" ¦ 2 (total) / 2 (free) x internal M.2 2280 ¦ 1 (total) / 1 (free) x internal M.2 2230 |

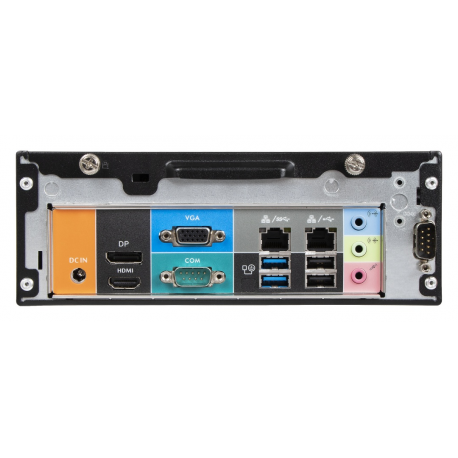

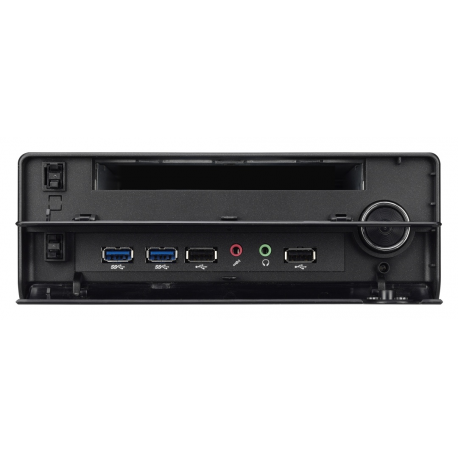

| Interfaces | 1 x microphone - mini-jack (1 in front) ¦ 1 x audio line-out/headphones - mini-jack (1 in front) ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 (2 front, 2 rear) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 2 x serial ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer)/line-in - mini-jack ¦ 1 x audio line-out (rear)/microphone - mini-jack |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | C-Tick, BSMI, CB, FCC, RoHS, ETL, Energy-using Products (EuP) Lot 6, EMI, Directive 73/23/EWG, Directive 89/336/EWG |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 90 Watt |
| OS Provided | No operating system |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 5.0 |
| Width | 20 cm |
| Depth | 23.8 cm |
| Height | 7.25 cm |
| Weight | 2.2 kg |
| Shipping Weight | 3.5 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
