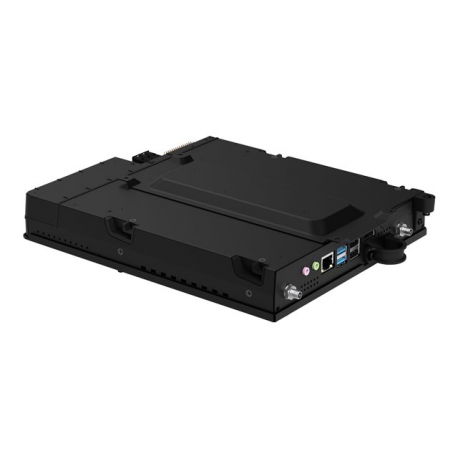

Elo Computer Module ECMG4-i5 - Digital signage player - 8 GB RAM - Intel Core i5 - SSD - 256 GB - Windows 10 IoT Enterprise LTSC 64-bit - black
images are for illustrative purposes only
New
Article: 1665556 Intrastat: 84718000 SKU: E228087
Pricing and stock details are available to registered users only.
| Device Type | Digital signage player |
| Width | 28.11 cm |
| Depth | 20.82 cm |
| Height | 4.3 cm |
| Weight | 2.1 kg |
| Colour | Black |
| OS Provided | Windows 10 IoT Enterprise LTSC 64-bit Edition |
| Interfaces | USB 2.0, Gigabit Ethernet, USB 3.0 |
| Key Features | Digital audio player, digital photo viewer, digital video player, Wi-Fi |
| Manufacturer | Intel |
| Type | Core i5 |
| Installed Qty | 1 |
| Processor Number | I5-7500T |
| Number of Cores | Quad-Core |
| Clock Speed | 3.3 GHz |
| Technology | DDR4 SDRAM |
| Installed Size | 8 GB |
| Max Supported Size | 64 GB |
| Slots Qty | 2 |
| Storage Drive Type | SSD |
| Capacity | 256 GB |
| Graphics Processor | Intel HD Graphics 630 |
| Storage Drive Capacity | 256 GB |
| Storage Drive Form Factor | M.2 |

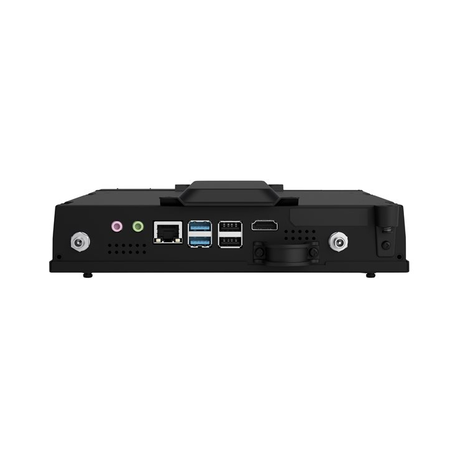

| Connections | HDMI output ¦ 2 x USB 3.0 ¦ 2 x USB 2.0 ¦ LAN (Gigabit Ethernet) ¦ Audio line-out - mini-jack ¦ Microphone - mini-jack ¦ 2 x aerial |
| Included Accessories | 2 x aerials |
| Compliant Standards | UL, VCCI, cUL, CB, FCC, AS/NZS |
| Shipping Width | 73 cm |
| Shipping Depth | 52 cm |
| Shipping Height | 32 cm |
| Shipping Weight | 3.3 kg |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
