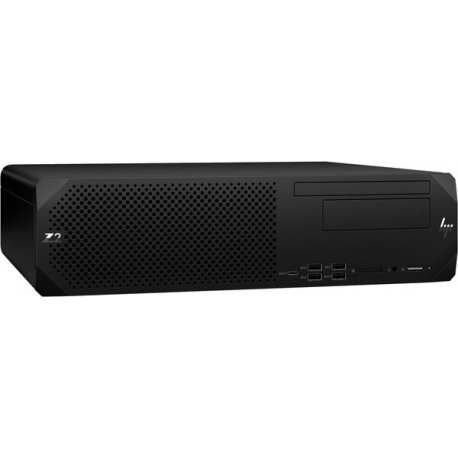

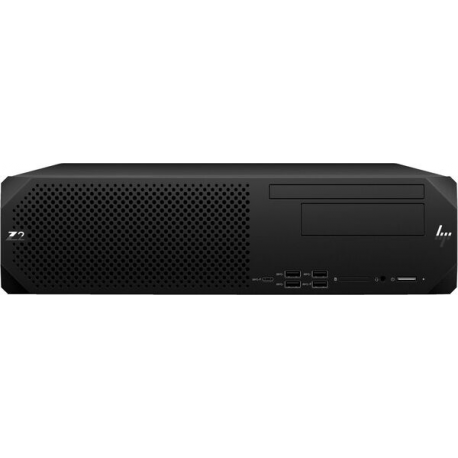

HP Workstation Z2 G9 - SFF - 1 x Core i7 13700 / 2.1 GHz - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC - UHD Graphics 770 - GigE - Win 11 Pro - monitor: none - black
images are for illustrative purposes only
New
Article: 3360217 Intrastat: 84714100 SKU: 5F108EA#UUW
Pricing and stock details are available to registered users only.
| Type | Workstation |
| Product Form Factor | Small form factor |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Colour | Black |
| Localisation | Language: Danish, Norwegian, Finnish, Swedish / region: Denmark, Finland, Norway, Sweden |
| CPU | Intel Core i7 (13th Gen) 13700 |
| Clock Speed | 2.1 GHz (P-core) / 1.5 GHz (E-core) |
| Max Turbo Speed | 5.2 GHz (P-core) / 4.1 GHz (E-core) |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| L2 cache | 24 MB |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 |
| CPU Socket | LGA1700 Socket |
| Chipset Type | Intel W680 |
| Installed Size | L3 Cache - 30 MB |
| Cache Per Processor | 30 MB |
| Installed Size | 16 GB / 128 GB (max) |
| Technology | DDR5 SDRAM - non-ECC |
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 4 (Total) / 3 (empty) |
| Features | Unbuffered, dual channel memory architecture |
| Configuration Features | 1 x 16 GB |
| Type | SSD - M.2 2280 |
| Capacity | 1 x 512 GB |
| Interface Type | PCI Express 4.0 x4 |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Type | 1 x SATA/NVMe |
| Controller Interface Type | SATA 6Gb/s / PCIe 4.0 x4 (NVMe) |
| Channel Qty | 4 |
| RAID Level | RAID 0, RAID 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics 770 |
| Video Interfaces | DisplayPort |
| Compliant Standards | High Definition Audio |
| Speakers Included | 1 x mixed channel |
| Type | Mouse, keyboard |
| Keyboard Name | HP 320K |
| Interface | USB |
| Mouse Name | HP 320M |
| Ethernet Controller | Intel I219-LM |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az |
| Bays | 1 (total) / 1 (free) x external 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 1 (total) / 1 (free) x internal 3.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (PCIe 3.0 x4 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 ¦ 3 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode) ¦ 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module) |
| Interfaces | 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support) ¦ 4 x USB 3.2 Gen 2 (4 in front) (one of them is charging) ¦ 1 x USB-C 3.2 Gen 2x2 (1 in front) (charging) ¦ 1 x audio line-out ¦ 2 x DisplayPort 1.4 ¦ 3 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, WEEE, CECP, low halogen |
| Device Type | Power supply |
| Power Provided | 260 Watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| OS Provided | Windows 11 Pro Danish / English / Finnish / Norwegian / Swedish |
| Software | HP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP ZCentral Remote Boost, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0 |
| ENERGY STAR Certified | Yes |
| Width | 38.4 cm |
| Depth | 30.8 cm |
| Height | 10 cm |
| Weight | 5 kg |
| Shipping Width | 19.9 cm |
| Shipping Depth | 49 cm |
| Shipping Height | 51.4 cm |
| Shipping Weight | 5.9 kg |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
