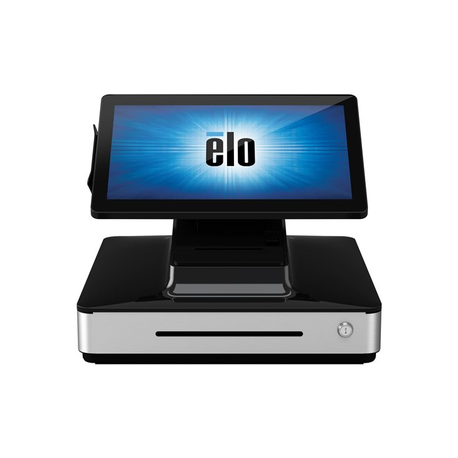

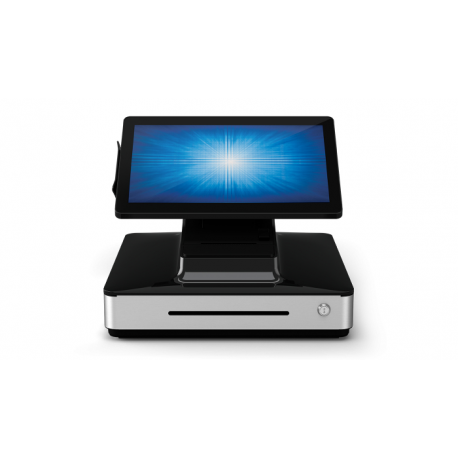

Elo PayPoint Plus - All-in-one - 1 x Core i5 8500T / 2.1 GHz - RAM 8 GB - SSD 128 GB - UHD Graphics 630 - WLAN: 802.11a / b / g / n / ac, Bluetooth 5.0 - no OS - monitor: LED 15.6" 1920 x 1080 (Full HD) @ 60 Hz touchscreen - black
Elo PayPoint Plus - All-in-one - 1 x Core i5 8500T / 2.1 GHz - RAM 8 GB - SSD 128 GB - UHD Graphics 630 - WLAN: 802.11a / b / g / n / ac, Bluetooth 5.0 - no OS - monitor: LED 15.6" 1920 x 1080 (Full HD) @ 60 Hz touchscreen - black
Manufacturer
•ELO TOUCHSYSTEMS
Reference
•E549091
Article
•1656041
Intrastat
•84713000
Shipping weight
•13.5 kg
Type
Point of sale terminal
Product Form Factor
All-in-one
Built-in Devices
Speaker, LCD Customer Display, 2D barcode reader, cash drawer (4 bill, 8 coin)
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Colour
Black
Localisation
Region: United States
CPU
Intel Core i5 (8th Gen) 8500T
Clock Speed
2.1 GHz
Max Turbo Speed
3.5 GHz
Number of Cores
6-core
CPU Qty
1
Processor Main Features
Intel Turbo Boost Technology 2
Installed Size
9 MB
Cache Per Processor
9 MB
Installed Size
8 GB / 32 GB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2666 MHz
Rated Memory Speed
2666 MHz
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 1 (empty)
Configuration Features
1 x 8 GB
Type
SSD - M.2
Capacity
1 x 128 GB
Monitor Type
LED
Touchscreen
Yes (5-point multi-touch)
Diagonal Size
15.6"
Native Resolution
1920 x 1080 (Full HD)
V-Sync Rate at Max Res.
60 Hz
Widescreen Display
Yes
Image Aspect Ratio
16:9
Horizontal Viewing Angle
+80 / -80
Vertical Viewing Angle
+80 / -80
Response Time
30 ms
Image Brightness
300 cd/m²
Image Contrast Ratio
800:1
Monitor Features
Projected Capacitive Touch (P-CAP) technology
Graphics Processor
Intel UHD Graphics 630
Type
Bar-code reader, Magnetic Stripe Reader
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Type
Receipt printer
Technology
Thermal transfer
Max Print Speed
250 mm/sec
Media Size
Roll (8 cm)
Interfaces
4 x USB 2.0 ¦ 2 x serial - RJ-45 ¦ 1 x Micro-HDMI ¦ 1 x cash drawer - RJ-12 ¦ 1 x LAN ¦ 1 x PoweredUSB (12 V)
Included Accessories
2 cash drawer keys, customer facing display, receipt paper roll
Cables Included
Serial cable
Compliant Standards
UL, VCCI, cUL, CB, CCC, IC, FCC, SRRC, JRF, RED
Technology
Lithium Ion
Device Type
Power supply
Voltage Required
AC 100 - 240 V (50 - 60 Hz)
Power Consumption Operational
51.86 Watt
OS Provided
No operating system
Service & Support
Limited warranty - 3 years
Width
42 cm
Depth
41.1 cm
Height
32.3 cm
Weight
10.2 kg
Shipping Width
51.8 cm
Shipping Depth
53.8 cm
Shipping Height
38.9 cm
Shipping Weight
13.5 kg
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
