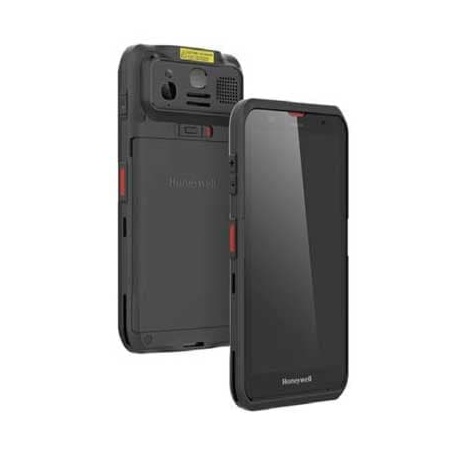

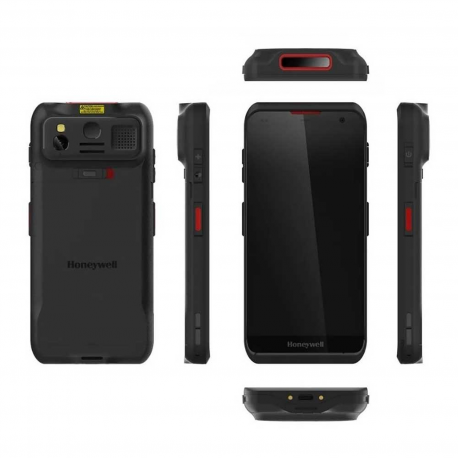

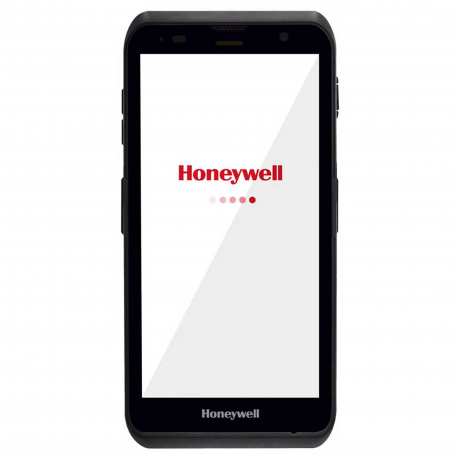

Honeywell ScanPal EDA52 - Data collection terminal - rugged - Android 11 - 128 GB - 5.5" (1440 x 720) - rear camera + front camera - barcode reader - (2D imager) - microSD slot - Wi-Fi 5, NFC, Bluetooth
images are for illustrative purposes only
New
Article: 1860701 Intrastat: 84713000 SKU: EDA52-00AE81N21RK
Pricing and stock details are available to registered users only.
| Product Type | Data collection terminal - rugged |
| Operating System | Android 11 |
| Type | 5.5" - LED backlight |
| Resolution | 1440 x 720 |
| Touchscreen | Multi-Touch |
| Features | Glass Film Film (GFF), Corning Gorilla glass 5, capacitive touch screen |
| Processor | Qualcomm Snapdragon SM6115 |
| Processor Clock Speed | 2 GHz |
| Number of Cores | 8-core |
| Storage | 128 GB |
| RAM | 6 GB |
| Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
| Max Supported Capacity | 128 GB |
| Wireless Connectivity | 802.11a/b/g/n/ac, NFC, Bluetooth 5.1 |
| Security Protocols & Features | LEAP, WEP, TLS, WPA, WPA2, WPA2-PSK, TTLS, PEAP, WPA2-Enterprise, OPEN, PWD, WPA3, WPA3-Enterprise, WPA3-SAE, WPA3-OWE |
| Sensor Resolution | 13 Megapixel |
| Focus Adjustment | Automatic |
| Sensor Resolution | 5 Megapixel |
| Type | Touch-screen |
| Keys Qty | 5 |
| Barcode Reader | Yes |
| Scan Element Type | 2D imager |
| Preloaded Software | Google Mobile Services |
| Expansion Slots | 1 x microSD |
| Interfaces | USB-C ¦ 2 pin connector |
| Technology | Lithium Ion |
| Capacity | 4500 mAh |
| Run Time | Up to 12 hours |
| Recharge Time | 3.5 hour(s) |
| Sensors | Accelerometer, proximity sensor, light sensor |
| Features | Volume control, firmware upgradable, scan key, MU-MIMO technology, QC3.0 Quick Charge, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air), removable battery, Honeywell S0703 imager, 1.3 m drop to concrete resistant, Real-Time Clock (RTC) with 10min backup (super capacitor) |
| Compliant Standards | MIL-STD 810G, IP67, IEEE 802.11ac, SAE, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11r, WPA2-PSK, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11u, IEEE 802.11w, IEEE 802.11v, WEP, WPA, WPA2, WPA3 |
| Width | 7.5 cm |
| Depth | 1.44 cm |
| Height | 15.9 cm |
| Weight | 258 g |
| Service & Support | Limited warranty - 1 year |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -30 °C |
| Max Storage Temperature | 70 °C |
