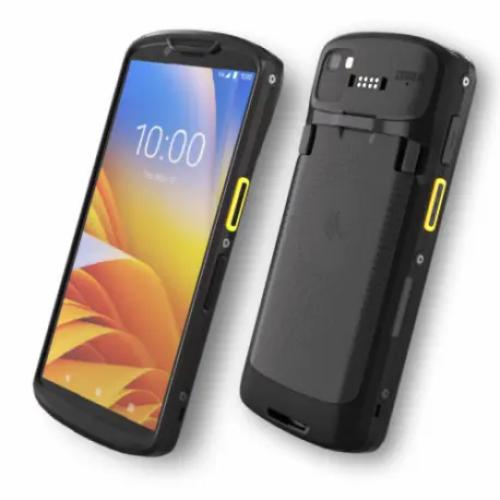

Zebra TC53 - Data collection terminal - rugged - Android 11 - 64 GB - 6" (1080 x 2160) - rear camera + front camera - barcode reader - (2D imager) - USB host - microSD slot - Bluetooth, Wi-Fi 6E
Manufacturer
•ZEBRA
Reference
•TC5301-0T1K4B1000-NA
Article
•3535875
Intrastat
•84713000
Manufacturer price
•2516.89 €
6"4 GBAndroid2D
Product Type
Data collection terminal - rugged
Operating System
Android 11
Type
6" - LED backlight
Resolution
1080 x 2160
Touchscreen
Multi-Touch
Image Brightness
600 cd/m²
Features
Interactive Sensor Technology (IST), drop-resistant, SecureBoot, microphone with noise-cancellation, warm swap, 2x2 MiMo function, haptic feedback, verified boot, multi-colour LEDs, super-wideband (SWB) audio, fullband (FB) audio, cellular circuit switch voice, SE55 Advanced Range Scan Engine with IntelliFocus technology
Processor
Qualcomm QCM6490
Processor Clock Speed
2.7 GHz
Number of Cores
8-core
Storage
64 GB
RAM
4 GB
Supported Flash Memory Cards
microSD
Max Supported Capacity
2 TB
Wireless Connectivity
Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Security Protocols & Features
LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, MS-CHAP, MS-CHAPv2, PEAPv0, PEAPv1, EAP-SIM, EAP-AKA, EAP-GTC, CCKM, IPv6 support, PWD, EAP-PWD, WPA-Enterprise, GCMP, WPA3, WPA3-Enterprise
Sensor Resolution
8 Megapixel
Focus Adjustment
Automatic
Light Source
LED flash
Audio
Three microphones, stereo speakers
Barcode Reader
Yes
Scan Element Type
2D imager
Preloaded Software
Google Mobile Services
Expansion Slots
1 x microSD
Interfaces
1 x USB 2.0
1 x USB-C 3.0
1 x headphones mini jack (3.5mm)
USB Host
Yes
Technology
PowerPrecision+ - Lithium Ion
Capacity
4400 mAh
Sensors
Proximity sensor, gyro sensor, motion sensor, pressure sensor, light sensor
Vibrating Alert
Yes
Compliant Standards
Bluetooth Class 2, FIPS 140-2, IP68, IP65, ISO 15408, MIL-STD-810H, EN/IEC 63000:2018, RoHS 2011/65/EU Amendment 2015/863, ISO 19790
Localisation
North America
Width
7.735 cm
Depth
16.48 cm
Height
1.675 cm
Weight
293 g
Service & Support
Limited warranty - 1 year
Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
